Bed Type Milling Machines

We offer a selection of used bed type milling machines. Available at our used machine tools warehouse in Zaragoza (Spain).

Correanayak VH PLUS 3000

New in 2013 with HEIDENHAIN TNC 530 HSCI
Table surface: 3,200 x 1,100 mm
Travels (X/Y/Z): 3,000/1,700/1,500 mm
Automatic head 45º UAD 0.1º/0.1º 6,000 rpm
30 tool ATC
Internal Coolant 40 Bar
Longitudinal and cross chip conveyors

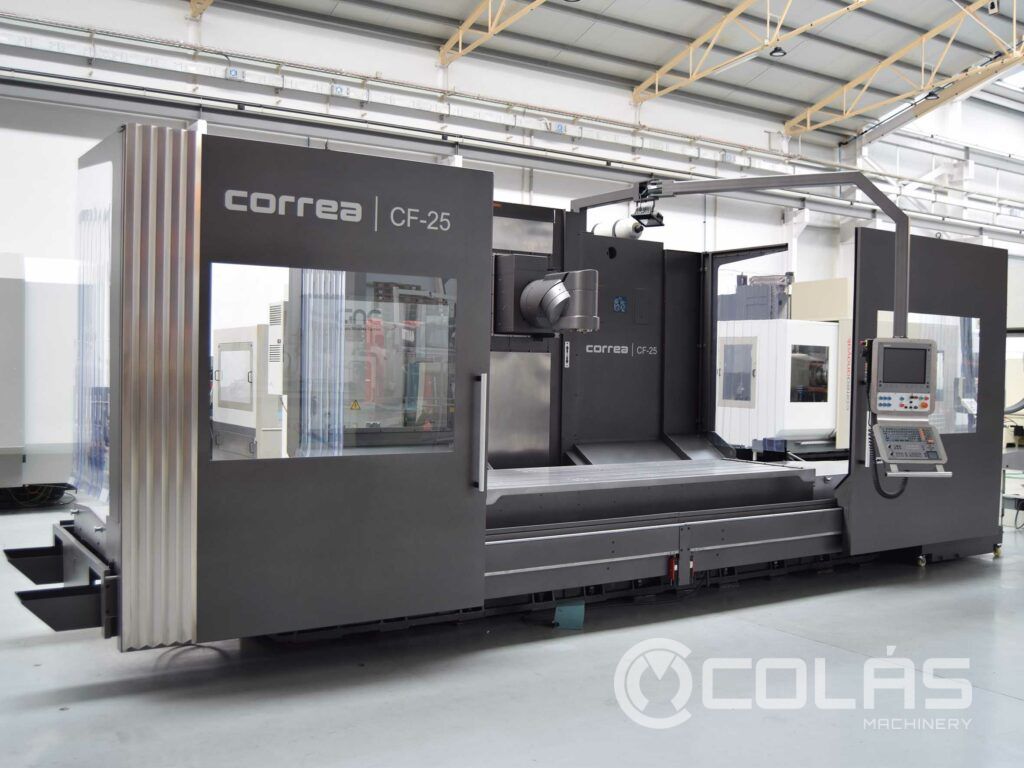

Correa CF25/25 – Used bed type milling machine

CNC Heidenhain TNC 530.
New in 2008
Table Surface: 3.100 x 1.100 mm
Travels:2.499/1.000/1.000 mm
Autoindex head 0.1º/0.1º
Longitudinal Chip Conveyor
Internal coolant

Second Hand Zayer milling machine with rotary table

Used ZAYER 30KFU4000 AR

Fully reconditioned bed type milling machine
Auto Indexing Head 45º 0.001º/0.001º
Internal Coolant
ATC 40 Tools
Double Chip Conveyor
Full protecting guards
Rotary Table

Used Soraluce TA-35 bed type milling machine

Soraluce TA35 Automatic

Soraluce bed type milling machine
New in 2009 with CNC Heidenhain TNC 530
Travels (X/Y/Z): 3500/1000/1250 mm.
Automatic Head 2.5º/2.5º
ATC 20 Positions
Chip Conveyor
Internal Coolant

Zayer 20 KFU-3000

Used Zayer Milling Machine reconstructed
CNC HEIDENHAIN TNC 530i
Table Surface :3.000 x 1.000 mm
Travels (X/Y/Z) :2.700 / 1.200 / 1.000 mm
Automatic 45º Head 1º /2.5º
ATC 30 tools
Chip coveyor

Zayer XIOS G 3000

New 2013 with CNC HEIDENHAIN iTNC-530 HSCI
Travels (X/Y/Z): 3,003/1,505/1,600 mm.
Automatic head 45º 0.001º 0.001º 40kW
ATC 40 tools
Internal and external cooling
Chip conveyor
Part touch probe

ZAYER 30-KFU4000 AR Bed Type Milling Machine

New in 2013. CNC HEIDENHAIN TNC 530 HSCI
Table Surface:4.000 X 1.000 mm.
Travel (X/Y/Z): 3.700/1.250/1.500 mm.
Autoindex head 45º 0.001º/0.001º
Internal Coolant
ATC 30 Tools
Chip Conveyor

Soraluce TA-25 Automatic

Used Soraluce milling machine with auto index head
New in 2006. CNC HEIDENHAIN TNC-530 HSCI
Automatic Head ISO 50 2. 5º/2. 5º
ATC 24 positions
Double Chip Conveyor
Internal Coolant 20 Bar
4th axis Spirsin HV Ø 800 mm

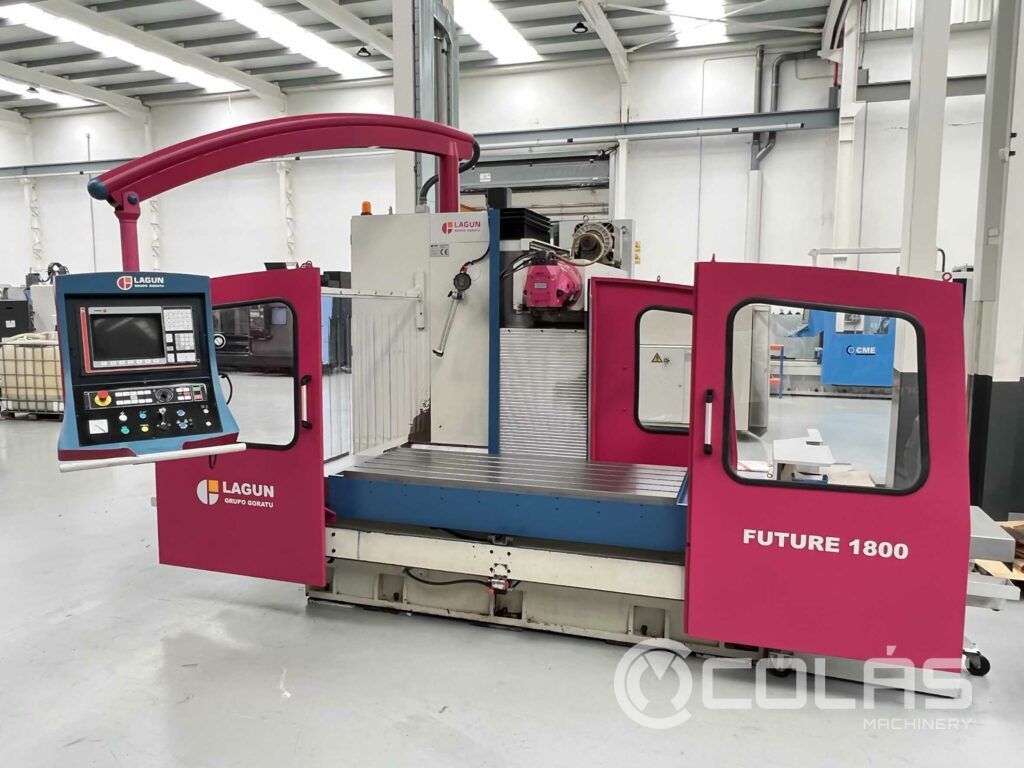

Lagun Future-1800

Second hand Lagun milling machine
New in 1999 CNC FAGOR 8050M
Travels (X/Y/Z); 1.700/800/800 mm.
Table size: 1.800×700 mm.
Taper: ISO 50
Hydraulic tool clamping

Correa CF22-20 bed type milling machine on clearance sale

Manufactured in 1998 with HEIDENHAIN TNC-410 CNC
Table: 2.000 x 700 mm.
Travel (X/Y/Z): 2.000/800/800 mm.
ISO 50
Hydraulic tool clamping
Equiped with a lot of tools and accessories

Correa CF17D in clearance sale

2 meter – bed type milling machine in clearance sale
Manufactured in 2000 with HEIDENHAIN TNC-410
Table size: 2,000 x 700 mm.
Travels (X/Y/Z) 2,000/800/800 mm.
Taper: ISO 50
Hydraulic Tool Clamping
Lot of tools and accessories

Anayak VH Plus 3000 MG-8 5x

5 Axis Anayak with integrated rotary table.
New in 2010. CNC: HEIDENHAIN iTNC 530
Table 1.250 x 1.250 mm
Travels ( X/Y/Z): 3.000/1.270/1.500 mm.
ATC 40 tools
Chip conveyor
Internal coolant 20 Bar

SORALUCE TA 20

2 meter used Soraluce milling machine
CNC HEIDENHAIN TNC-530
New in 2003
Travels (X/Y/Z). 2.000/1.000/1.000 mm.
Table Surface: 2.000×800 mm
Portable Handwheel Heidenhain HR 410
Intenal Coolant

Used ZAYER 30 KF 4000

Zayer Bedtype milling machine
New in :2000
CNC : HEIDENHAIN TNC 426
Table Surface :4.000 X 1000 mm.
Travels (X/Y/Z): 3.708 / 1.259/ 1.516 mm.

Nicolás Correa Prisma 25

Bed type milling machine with 4th axis

New in 2006. CNC Heidenhain TNC 530

Table surface: 2.800×900 mm.

Travels (X/Y/Z): 2.500/1.000/1.000 mm.

Correa CF 25/35

New in 2.002 with CNC HEIDENHAIN TNC-530
Table surface:3.800 x 1.000 mm.
Travels (X/Y/Z): 3.500/1.000/1.000 mm.
Automatic head UAD 0.1º/ 0.1º
Internal coolant 20 bar
ATC 30 tools
Longitudinal & transversal chip conveyor

NICOLÁS CORREA A 30/40 UDG

4 meter Nicolás Correa milling machine
Manufactured in 2022 with HEIDENHAIN TNC 426 D
Table surface: 4,500×1,100 mm.
Travels (X/Y/Z): 4,000/1,200/1,500 mm.
Automatic head UDG 40 2. 5º/2. 5º
Chip conveyor

Fresadora de Bancada Fija Nicolás Correa A 25/30

Bed Type Milling Machine Nicolás Correa A 25/30

CNC:HEIDENHAIN TNC-426PB

Table Surface: 3.500 X 1.000 mm.

Travels (X/Y/Z):3.000/1.200/1.000 mm.

Rapid Feed:12.000 mm/min

Correa A2530 with auto index head and ATC

Used CORREA A25/30 ATC UDG

Second Hand Bed Type Milling Machine
CNC Heidenhain TNC 426 PB
New in 1998. Reconstructed in 2020
Table Surface :3.500 x 1.000 mm.
Travels ( X/Y/Z) :3.000/1.200/1.000 mm.
ATC 30 Tools
Internal Coolant

ANAYAK PERFORMER 2000 MG8

New in 2007
CNC Heidenhain iTNC
Table (C Axis) 1.250 x 1.400 mm giro 0.001º
Travels (X/Y/Z): 2.000/1.000/1.100 mm.
Autoindex Head 2. 5º/2. 5º
ATC 60 Tools
Chip Conveyor. Internal Coolant

Anayak milling machine in liquidation sale

Anayak VH2200 in Liquidation Sale

Used bed type milling machine in liquidation sale
New in 2002
CNC HEIDENHAIN TNC-426 M
Table Surface : 2.200 X 700 mm.
Travels (X/Y/Z): 2.000/900/920 mm.Ç
Hydraulic Tool Clamping
Liquidation price for limited time only

MTE BF 2200

Table surface :2.200 x 1.000 mm.
Travels (X/Y/Z): 2.000/1.000/1.000 mm.
Taper :ISO 50
Hydraulic Tool Clamping
Portable handwheel

Anayak VH 3000 Plus

Bed type milling machine with 1º/1º Head
New in 2005. CNC HEIDENHAIN iTNC 530
Table Surface:3.200 x 1.200 mm
Travels (X/Y/Z) :3.000/1.700/1.500 mm
Chip conveyor
Internal Coolant
Ready for 4th Axis

Zayer 20 KF-5000

5 meter bed type milling machine
New in 1995. CNC HEIDENHAIN TNC-360
Table surface : 5.000 x 1000 mm.
Travels ( X/Y/Z) : 4.71271.202/1.035 mm.
Taper:ISO 50 / DIN 2080
Main Spindle Power:22 kW
Max Allowed weight on table :10.000 kg

CORREA DIANA 20

Second Hand Correa Diana 20 milling machine
New in 2008. CNC Heidenhain TNC 530
Table Surface: 2.300 x 900 mm.
Travels (X/Y/Z): 2.000/1.000/1.000 mm.
Universal Head ISO 50

Used Correa CF22 with automatic tool changer

Used NICOLÁS CORREA CF 22/25 PLUS ATC

New in 1999. CNC Heidenhain TNC-426
ATC 30 Positions
Internal Coolant
Table Surface: 2.500×700 mm.
Travels (X/Y/Z): 2.500/800/800 mm.
Hydraulic Tool Clamping
CE Protecting Guards

Used LAGUN MASTER-2000

Second Hand LAGUN MASTER-2000 milling machine
New in 2000 with CNC Fagor
Travels (X/Y/Z): 1.830/1.000/1.000 mm.
Table Surface : 2.000×1.000 mm.

Correa CF 22 25 Plus with AutoIndex Head

Used Correa CF22/25 Plus UDG Bed Type Milling Machine

Second Hand Correa Milling Machine new in 1999
Totally Overhauled
CNC : HEIDENHAIN TNC-430
Auto Indexing Head : 2,5° / 2,5°
Table Surface : 2500 X 700 mm.

Used Anayak milling machine with Heidenhain

Bed Type Milling Machine ANAYAK VH-2200

Year 1999.
Table Surface: 2.200 X 700 mm.
Travels (X/Y/Z):2.000/920/900 mm.
Hydraulic Tool Clamping Sytem.
CNC Brand/ Model: HEIDENHAIN TNC-410.

ZAYER 30 KFU-3000 AR Bed Type Milling Machine

New in 2003/ Reconstructed 2019
CNC HEIDENHAIN TNC 530
Travels (X/Y/Z):2.700/1.250/1.500 mm.
Auto Index Head 45º 0.001º/0.001º
Internal Coolant 20 BAR
ATC 30 Tools
Double Chip Conveyor

Second Hand Correa A2530 UDG bedtype miller

Used Nicolás Correa A25/30 UDG Bedtype Milling Machine

Used Correa Bedtype Milling Machine
CNC Heidenhain
Autoidex Head 2.5º/2.5º
Hydraulic Tool Clamping
Immediately Available

ANAYAK VH-PLUS 3000 MG Milling Machine

Bed-Type with rotary table Milling Machine VH-Plus MG
CNC: Heidenhain TNC 530
AutoIndex Head :1º / 2.5º BIRA 2
Internal Coolant 22 Bar
ATC 60 Positions
Chip Conveyor

Fresadora de Bancada Fija Correa A 30-50

Bed Type Milling Machine Correa A 30-50

Table Surface: 5.000 X 1.100 mm.
Travels (X/Y/Z):5.000/ 1.200/1.500 mm.
Automatic Head:2,5 º / 2,5º.
Hydraulic Tool Clamping system.
CNC HEIDENHAIN TNC-426 D. Year:1998

Bed Type Milling Machine Correa CF 17D

Nicolas Correa Model CF17 D in Semi-new Condition. CNC HEIDENHAIN TNC-426 Table Surface: 2000 X 700 mm. Traverses (X/Y/Z): 2.000/800/800 mm. Hydraulic Clamping Tool. Year 2003. Immediate Delivery. Can be inspected under power

Used Nicolás Correa CF22/20 Plus

Second Hand Bed Type Milling Machine
New in :2001
CNC :HEIDEHAIN TNC 426M
Table Surface :2.000 X 700 mm.
Travels (X/Y/Z) :2.000/800/800 mm.
Hydraulic Tool Clamping

Used Zayer ZF 2000 Bed Type Milling Machine

Bed Type Milling Machine Zayer ZF 2000

CNC HEIDENHAIN TNC-426.
Table Surface:2.000 X 1.000 mm.
Travels (X/Y/Z): 1.725 /1.200/1.000 mm.
Automatic Head:2×180º / Manual Head
Hydraulic Tool Clamper
Portable Handwheel

Used LAGUN 21-E Bed Type Milling Machine

Second Hand Bed Type milling machine Lagun for sale.
New in 2003
CNC Heidenhain TNC 426
Table Surface: 2100×800 mm.
Travels ( X/Y/Z): 2000/1000/12000 mm.
Taper: ISO 50
Hydraulic Tool Clamping

Second Hand MTE K15 bed type milling machine

Used MTE K15 Milling Machine

Second Hand MTE K15 Bed Type Miling Machine
New in 2008 with CNC Heidenhain TNC 530
Travels (X/Y/Z): 1.500/800/800 mm.
Table Surface: 1.700×750 mm.
Autoindex Head 2.5º/2.5º
ATC 24 Tools
Double Chip Conveyor

Bed Type MIlling Machine CORREA CF22-25 PLUS

USED CORREA CF22/25 PLUS BED TYPE MILLING MACHINE

Table Surface: 2500 X 700 mm. Travels (X/Y/Z): 2500/800/800 mm. ISO 50. Hydraulic Tool Clamping. CE Guarding.

Used Correa CF 22/20 Bed Type Milling Machine

Used Correa Bed Type miling machine with Heidenhain TNC 426. Totally Overhauled. Excellent Conditions. Table Surface: 2000×700 mm. Travels (X/Y/Z): 2000/800/800 mm. Hydraulic Tool Clamping.

Used Correa A 25/30

Bed Type Milling Machine with Autoindex Head 2.5/2.5
Machine Model: Correa A25/30.
YOM 1992. CNC Heidenhain TNC 415.
Rotary Table Ø 400 mm
Hydraulic Tool Clamping

ZAYER ZFU 2000 Bed Type Milling Machine with CNC Fagor

Bed Type Milling Machine Zayer ZFU 2000 with CNC Fagor

Table Surface: 2000 X 630 mm. Travels (X/Y/Z):1800/800/800 mm. CNC FAGOR 8050 M. ATC 30 Positions. Chip Conveyor. Automatic Head. Year 1992.

Used CME FS-3 Bed Type Milling Machine

CME Bed Type Milling Machine. Year of Manufacturing 2007. Heidenhain 530 Control. Auto Indexing Head 2.5º head and elbow. Traverses (X/Y/Z): 2500/1200/1500 mm. Table Surface: 2700×1000, Internal Coolant 20 Bar. Soluble Oil Tank 500 l. Tool Charger 24 Tools. Excellent Condition.

Used Lagun GBM 42E ATC

Second hand Lagun bed type milling machine
CNC Heidenhain TNC 530. New in 2007.
Automatic Head 2.5º/2.5º.ATC 20 Tools .
Internal Coolant 20 Bar.
Ready for 4th axis.

Bed Type Milling Machine Correa Diana 20

Year 2006. CNC:HEIDENHAIN TNC-530. Rigid Tapping. 30 Positions ATC. Tool Charger H/V. Auto Indexing Head 2,5º-2,5º. Ready for 4th Axis. 4th Axis Rotary Table Spirsin Ø 600 mm. (H/V). Internal Coolant 20 Bar. Longitudinal Chip Conveyor. Portable Handwheel: HEIDENHAIN HR-410

Zayer 20 KF-2000

CNC Heidenhain TNC 426
Table dimension :2.000 x 1.000 mm.
Longitudinal travel (X Axis) :1.725 mm.
Cross travel (Y Axis) :1.250 mm.
Vertical travel (Z Axis) :1.000 mm.
Hydraulic Tool Clamping

Bed Type Milling Machine MTE BF 4200

Zayer KF 3000

Table Surface:3.000 X 1000 mm.
Travels (X/Y/Z): 2.700/ 1.250/ 1.000 mm.
CNC HEIDENHAIN TNC 355. Year:1.991

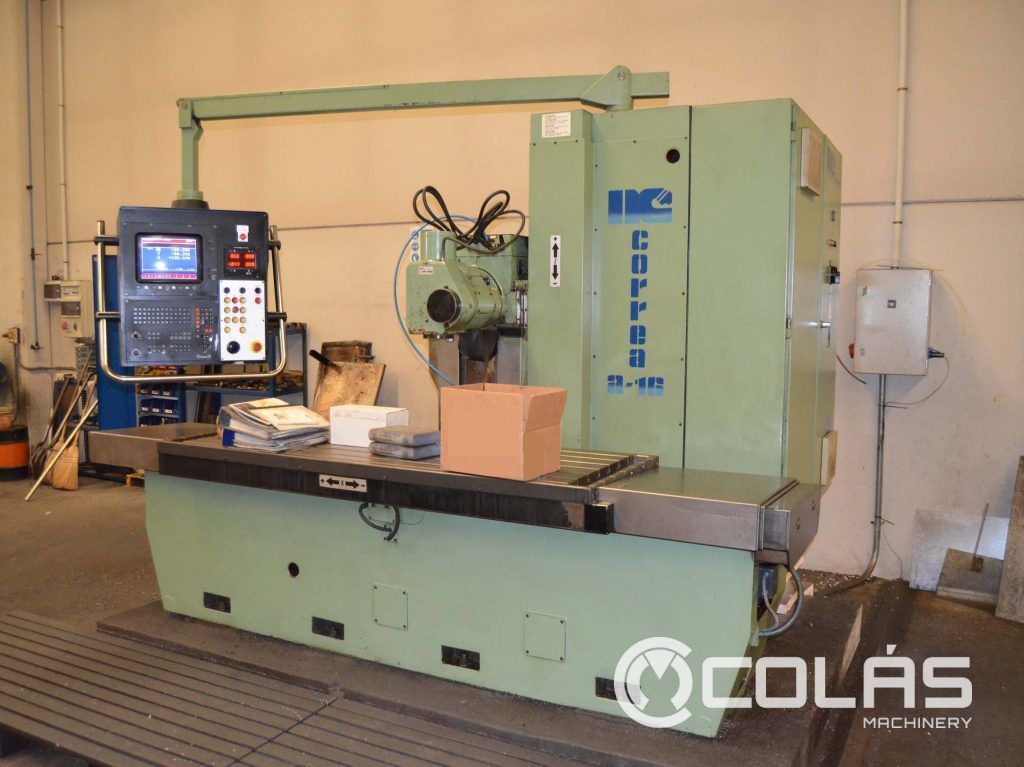

Nicolas Correa A-16 Bed type milling machine

Nicolás Correa A16

Second-hand Nicolás Correa fixed bench
New in 1993 with HEIDENHAIN TNC-415
Table surface: 2000 X 630 mm.
Travels (X/Y/Z) : 1800/80/800 mm.
