ZAYER 30-KFU4000 AR Bed Type Milling Machine
Technical Features of this Bed Type Milling Machine
| Manufacturer | ZAYER |
| Model | 30 KFU-4000 AR |
| Year | 2013 |
| CNC | HEIDENHAIN TNC 530 HSCI |
| Table Surface | 4.000 x 1.000 mm. |
| Longitudinal Traverse (X Axis) | 3.700 mm. |
| Transversal Traverse (Y Axis) | 1.250 mm. |
| Vertical Traverse (Z Axis) | 1.500 mm. |
| Taper | ISO 50 DIN 69871 |
| Max Turning Speed | 3.000 rpm |
| Auto Indexing Head 45º | |
| Head | 0.001º |
| Elbow | 0.001º |
| Head Ranges / 2 Ranges | |
| Head Power | 40 Kw |
| Internal Coolant | INCLUDED |
| Automatic Tool Changer INCLUDED | |
| Positions in ATC | 30 |
| Chip Conveyor | INCLUDED |
| Porable Handwheel | HEIDENHAIN HR 520 |
Detailed information of this Bed Type Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Bed Type Milling Machines
ANAYAK PERFORMER 2000 MG8
New in 2007 CNC Heidenhain iTNC Table (C Axis) 1.250 x 1.400 mm giro 0.001º Travels (X/Y/Z): 2.000/1.000/1.100 mm. Autoindex Head 2. 5º/2. 5º ATC 60 Tools Chip Conveyor. Internal

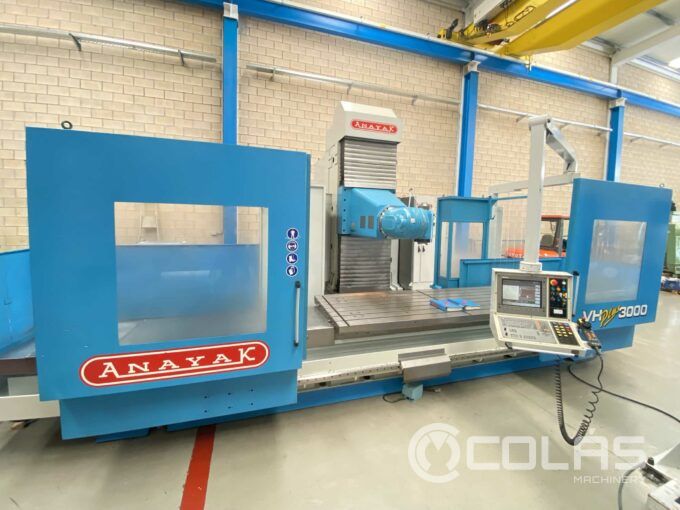

Anayak VH 3000 Plus
