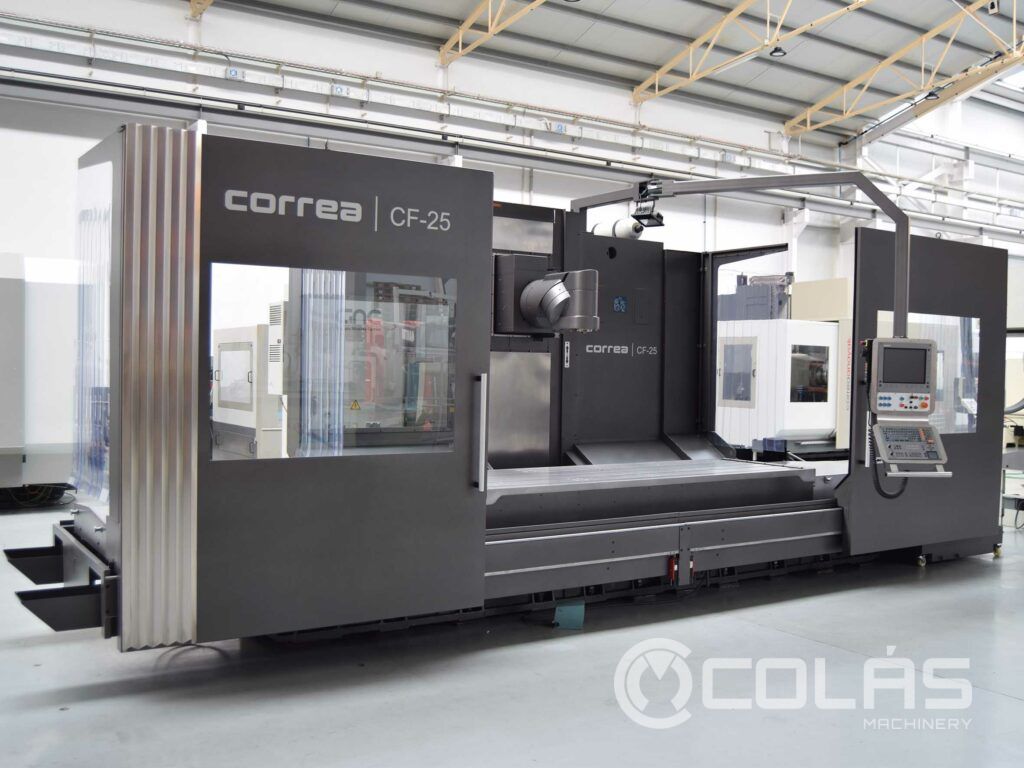

Correa CF25/25 – Used bed type milling machine
Technical Features of this Bed Type Milling Machine
| Manufacturer | NICOLÁS CORREA |
| Model | CF 25/25 |
| Year | 2008 |
| CNC | HEIDENHAIN TNC 530 HSCI |
| Table | |
| Table Surface | 3.100 x 1.100 mm |
| Number /Dimmession of T-Slots | 5/200 mm. |
| Carrying Load Table | 6.000 Kg |
| Travels | |
| Longitudinal Traverse (X Axis) | 2.499 mm |
| Cross Traverse (Y Axis) | 1.000 mm |
| Vertical Traverse (Z Axis) | 1.000 mm |
| Rapid feed | 20.000 mm |
| Working feed | 10.000 mm |
| Head | |
| Head Type | UAD |
| Indexing degrees | 0.1º/0.1º |
| Taper | ISO 50 |
| Main Motor Power | 22 kW |
| Spindle Speed | 6.000 rpm |
| Equipment | |
| Coolant through Spindle | INCLUDED |
| Portable Handwheel | HEIDENHAIN HR-410 |
| EC Guarding | INCLUDED |
| Weight and dimensions | |
| Machine dimensions ( LxWxH) | 7.750×4.400×3.100 mm. |
| Machine Weight | 20.000 kg |
Detailed information of this Bed Type Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
