Bed Type Milling Machine Nicolás Correa A 25/30
Technical Features of this Bed Type Milling Machine
| Superficie de la mesa | 3.000 X 1.100 mm. |
| Curso Longitudinal (Eje X) | 3.000 mm. |
| Curso Transversal (Eje Y) | 1.200 mm. |
| Curso Vertical (Eje Z) | 1.000 mm. |
| Avance Rápido Ejes | 12.000 mm/min |
| Cono Cabezal | ISO 50 |
| Gama de Revoluciones | 20 – 3000 rpm |
| Potencia de cabezal | 29,6 Kw |
| Cabezal de Giro Automático | 2,5 º / 2,5º |
| Peso Admisible sobre mesa | 8.000 kg. |
| Peso de la Máquina | 18.000 kg. |
| Amarre Hidráulico de Herramientas | INCLUIDO |
| Control Numérico | HEIDENHAIN TNC-426 CA. |
| Estado de la Máquina | BUENO |
| Año de Construcción | 1998 |
Detailed information of this Bed Type Milling Machine
The Bed Type Milling Machine Nicolás Correa A 25/30 with CNC Heidenhain TCN – 426 CA was built in 1998 and can be found at the used metalworking machinery shop that Maquinaria Colás owns in Zaragoza – Spain. Includes as additional equipment the hydraulic tool clamper.
The used milling machine Correa can be inspected up and running and it’s ready for inmediate inspection and delivery.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Bed Type Milling Machines
Bed Type Milling Machine Zayer ZFU 2000 with CNC Fagor
Table Surface: 2000 X 630 mm. Travels (X/Y/Z):1800/800/800 mm. CNC FAGOR 8050 M. ATC 30 Positions. Chip Conveyor. Automatic Head. Year
Correa CF25/25 – Used bed type milling machine
CNC Heidenhain TNC 530. New in 2008 Table Surface: 3.100 x 1.100 mm Travels:2.499/1.000/1.000 mm Autoindex head 0.1º/0.1º Longitudinal Chip Conveyor Internal
Used NICOLÁS CORREA CF 22/25 PLUS ATC
New in 1999. CNC Heidenhain TNC-426 ATC 30 Positions Internal Coolant Table Surface: 2.500×700 mm. Travels (X/Y/Z): 2.500/800/800 mm. Hydraulic Tool Clamping CE Protecting
Used LAGUN MASTER-2000
Second Hand LAGUN MASTER-2000 milling machine New in 2000 with CNC Fagor Travels (X/Y/Z): 1.830/1.000/1.000 mm. Table Surface : 2.000×1.000

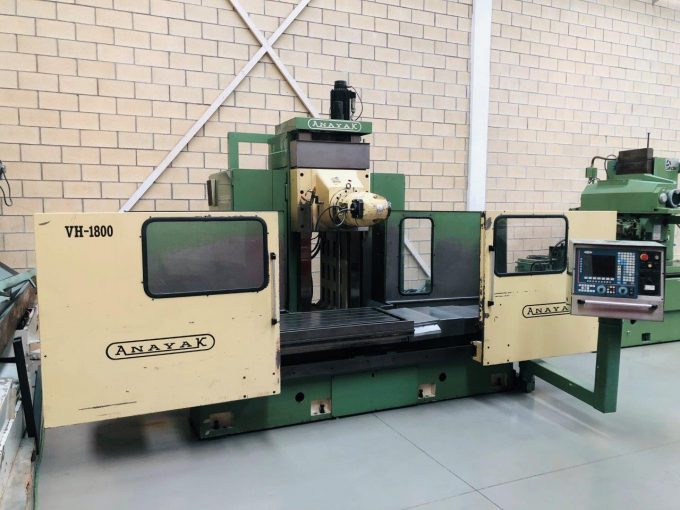

Used Anayak VH-1800 bed type milling machine
