Bed Type Milling Machine Correa Diana 20
Technical Features of this Bed Type Milling Machine
| Table Surface | 2.000 X 900 mm. | |
| Longitudinal Traverse (X Axis) | 2.000 mm. | |
| Cross Traverse (Y Axis) | 1.000 mm. | |
| Vertical Traverse (Z Axis) | 1.000 mm. | |
| Rapid Traverse Feed | 20.000 mm/min | |
| Spindle Nose | ISO 50 | |
| Programmable Speed | 20 – 3000 rpm | |
| Maximum Power Spindle | 22 Kw | |
| Maximum Load on Table | 3.500 kg. | |
| Rigid Tapping | INCLUDED | |
| 30 Positions ATC | INCLUDED | |
| Tool Charger H/V | INCLUDED | |
| Auto Indexing Head | INCLUDED | |
| Head | 2,5º | |
| Elbow | 2,5 º | |
| Ready for 4th Axis | INCLUDED | |
| 4th Axis Rotary Table Spirsin Ø 600 mm. (H/V) | INCLUDED | |
| Internal Coolant 20 Bar | INCLUDED | |
| Longitudinal Chip Conveyor | INCLUDED | |
| Portable Handwheel | HEIDENHAIN HR-410 | |
| Machine Weight | 14.000 Kg. | |
| Year | 2006 | |
| CNC | HEIDENHAIN TNC-530 | |
| Machine Condition | SEMI-NEW |
Detailed information of this Bed Type Milling Machine
This Bed Type Milling Machine Correa Diana 20 can be found at our milling machine warehouse in Spain. We are specialist in Correa milling machines as well as Zayer milling machines.
The Diana family of Correa milling machines was developed to serve to those manufacturing industries where rigidity, versatility and enhanced 3-D surface finish is a must. If we add the additional equipment of this Bed Type Milling Machine Correa Diana 20, the result is a machine suitable for multiple jobs.
Between the additional equipment we can highlight: 30 positions ATC, Tool Charger H/V, Auto indexing head 2.5º/2.5º, ready for 4th axis, 4th axis rotatory table Spirsin Spirsin Ø 600 mm, internal coolant 20 Bar, longitudinal chip conveyor, and portable handwheel HEIDENHAIN HR-410
If you need to buy or sell Correa milling machines, please contact us using the contact form at the end of the page or via our customer service telephone where we will be happy to help you,
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Bed Type Milling Machines
SORALUCE TA 20
2 meter used Soraluce milling machine CNC HEIDENHAIN TNC-530 New in 2003 Travels (X/Y/Z). 2.000/800/800 mm. Table Surface: 2.000×800 mm Portable Handwheel Heidenhain HR 410 Hydraulic

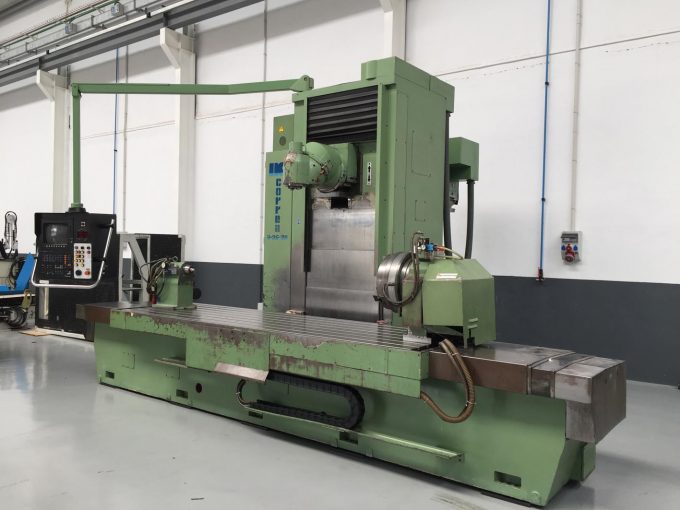

Used CORREA A25/30 ATC UDG
