Correa CF 25/35
Other available Bed Type Milling Machines

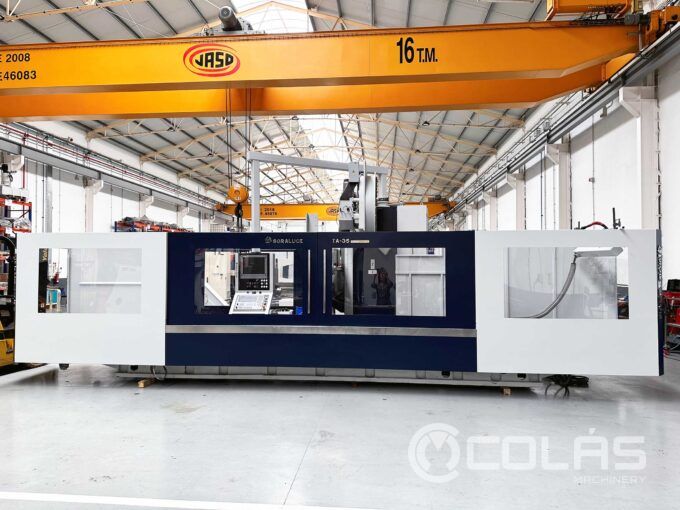

Soraluce TA35 Automatic
Soraluce bed type milling machine New in 2009 with CNC Heidenhain TNC 530 Travels (X/Y/Z): 3500/1000/1250 mm. Automatic Head 2.5º/2.5º ATC 20 Positions Chip Conveyor Internal
Zayer 20 KF-2000
CNC Heidenhain TNC 426 Table dimension :2.000 x 1.000 mm. Longitudinal travel (X Axis) :1.725 mm. Cross travel (Y Axis) :1.250 mm. Vertical travel (Z Axis) :1.000 mm. Hydraulic Tool
Anayak VH Plus 3000 MG-8 5x
5 Axis Anayak with integrated rotary table. New in 2010. CNC: HEIDENHAIN iTNC 530 Table 1.250 x 1.250 mm Travels ( X/Y/Z): 3.000/1.270/1.500 mm. ATC 40 tools Chip conveyor Internal
Technical Features of this Bed Type Milling Machine
| Manufacturer | NICOLAS CORREA |
| Model | CF 25/35 |
| Year | 2.002 |
| CNC | HEIDENHAIN TNC-530 |
| Table Surface | 3.800 x 1.000 mm. |
| T Slots | 5 x 22 mm. |
| Distance between T Slots | 200 mm. |
| Max weight allowed on table | 8.000 kg. |
| Longitudinal Traverse (X Axis) | 3.500 mm. |
| Cross Traverse (Y Axis) | 1.000 mm. |
| Vertical Traverse (Z Axis) | 1.000 mm. |
| Working Feeds (X/Y/Z) | 5-7.000 mm/min |
| Rapid Traverse | 20.000 mm/min |
| Auto-Indexing Head UAD | 0.1º/ 0.1º |
| Taper | ISO 50 DIN 69871 |
| Turning Speeds | 6000 rpm |
| Speed Ranges | 2 |
| Head Power | 22 kW |
| Internal coolant | INCLUDED |
| ATC | INCLUDED |
| ATC Positions | 30 |
| Ready for 4th Axis | INCLUDED |
| Chip Conveyor | INCLUDED |
| Chip Conveyor | INCLUDED |
| Full guarding | INCLUDED |
| Paper filter | INCLUDED |
| Electronic Handwheel | HEIDENHAIN HR-410 |
| Total power | 36 kW |
| Machine Weight | 22.000 kg |
Detailed information of this Bed Type Milling Machine
Second-hand Correa CF 25/35 milling machine for sale in at our used machinery shop in Zaragoza, Spain. It has been totally rebuilt by our team of experts in retrofitting used milling machines and is ready for immediate inspection and delivery.
It is a milling machine made by Nicolás Correa company with travel of 3,500/1,000/1,000 mm. in the X/Y/Z axes It includes automatic UAD 0.1º/0,1º, 20-bar internal coolant, 30-position ATC and longitudinal and transverse chip conveyor.
In this case, in addition to the reconstruction of the machine, our team carried out the installation of a Sprisin rotary table + tailstock – 4th axis.
Do you want to know more about this rebuilt Correa CF 25/35 bed type milling machine?
Then do not hesitate and contact us. We will explain in detail the rebuilding process carried out on this milling machine as well as any other information you may need. In addition, we will send you information on some other machines available at our second-hand milling machine showroom in Zaragoza and Zumaya.
Call us at +34 976500624, write to sales@maquinariacolas.com or fill in the contact form that appears at the bottom of the page. We will be happy to help you!
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
