MTE BF 2200
Other available Bed Type Milling Machines
Zayer 20 KF-2000
CNC Heidenhain TNC 426 Table dimension :2.000 x 1.000 mm. Longitudinal travel (X Axis) :1.725 mm. Cross travel (Y Axis) :1.250 mm. Vertical travel (Z Axis) :1.000 mm. Hydraulic Tool

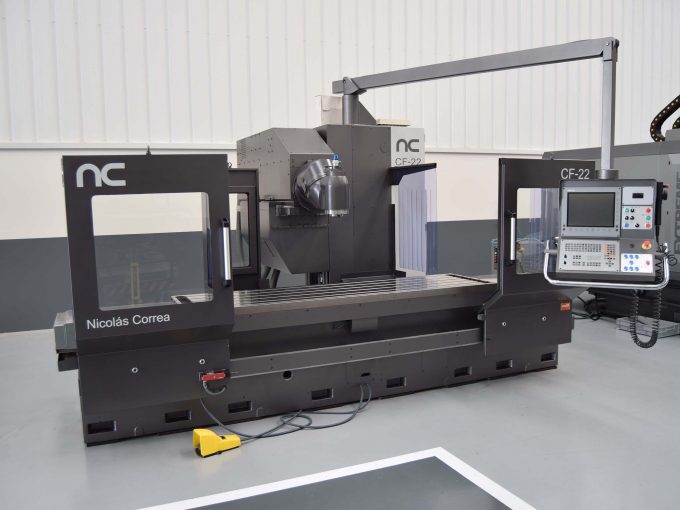

Correa CF25/25 – Used bed type milling machine
CNC Heidenhain TNC 530. New in 2008 Table Surface: 3.100 x 1.100 mm Travels:2.499/1.000/1.000 mm Autoindex head 0.1º/0.1º Longitudinal Chip Conveyor Internal
Correanayak VH PLUS 3000
New in 2013 with HEIDENHAIN TNC 530 HSCI Table surface: 3,200 x 1,100 mm Travels (X/Y/Z): 3,000/1,700/1,500 mm Automatic head 45º UAD 0.1º/0.1º 6,000 rpm 30 tool ATC Internal Coolant 40
Technical Features of this Bed Type Milling Machine
Manufacturer | MTE |
Model | BF-2200 |
Year | 1996 |
CNC | HEIDENHAIN TNC 410 |
Table surface | 2.200 x 1.000 mm. |
“T” slots, number and size | 7-22 |
Distance between “T” slots | 140 mm. |
Max. weight allowed on table | 5.000 kg. |
Longitudinal travel (X Axis) | 2.000 mm. |
Cross travel (Y Axis) | 1.000 mm. |
Vertical travel (Z Axis) | 1.000 mm. |
Rapid Feed | 8.000 mm/min |
Working feed | 0-4.000 mm/min. |
Taper | ISO 50 |
Turning speeds | 40-2.500 rpm |
Speed ranges | 3 |
Head power | 22 kW |
Spindle Torque | 1.460 Nm. |
Portable handwheel | Heindenhain HR-410 |
Total Power | 30 kW |
Machine Weight | 12.000 kg. |
Detailed information of this Bed Type Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Last update: 21/10/24
Sold. Request information about this type of machinery
