Johnford DMC 1500 VMC (Double Column)
Technical Features of this Second Hand VMC
| New in | 2006 |
| CNC | Heidenhain TNC 530 |
| Table Surface | 1.600 x 850 mm. |
| Longitudinal Traverse (X Axis) | 1.500 mm |
| Cross Traverse (Y Axis | 900 mm |
| Vertical Traverse (Z Axis) | 762 mm |
| Distance Between Columns | 1060 mm. |
| Rapid Feed Axis (X,Y) | 24 m/min |
| Rapid Feed Z Axis | 12 m/min |
| Working Feeds | 12 m/min |
| Spindle Speed | 8.000 mm/min |
| Taper | ISO-40 |
| Spindle Power | 15 HP |
| Tool Charger | INCLUDED |
| ATC Positions | 24 |
| Tool Touch Probe | INCLUDED |
| Portable handwheel | Heidenhain HR-410 |
| Chip conveyor | INCLUDED |
| Internal Coolant 20 Bar | INCLUDED |
| Washing Gun and Air Gun | INCLUDED |
| Carrying Load Table | 4.600 Kg. |
| Machine Weight | 15.000 Kg. |
| Total Power Required | 55 Kw. |
| Machine Dimensions ( LxWxH) | 4980x3000x3780 mm. |
Detailed information of this Second Hand VMC
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Vertical Machining Centers
Used MORI SEIKI NVX 5100 II
5 Axis Machining Center New in 2013 CNC M750 BM Travels (X/Y/Z): 1050/530/510 mm. Rotary Table 4º 5º Axis (Continuous) 5AX-DDRT 200 ATC 30 Tools Internal Coolant Chip
MAZAK VARIAXIS 730 5X II 5 Axis Machining Center
5 Axis Simuntaneous Machining Center New in 2007. CNC Mazatrol MATRIX Travels ( X/Y/Z): 730/850/560 mm. Automatic Pallet Changer ( 2 Pallets ) Table Surface 500×500 mm. ATC 40
Used MAZAK VTC 200B
Second Hand Vertical Machining Center New in 1.999. CNC MAZATROL FUSIÓN 640 M Table Surface :1.460 X 460 mm Travels (X/Y/Z): 1.120/510/510 mm. ATC 24 Tools. Rigid Taper Tool leght touch
DMG DMC 80-FD ( 5 Axis) Milling and turning center
5 Axis simultaneour machining center with pallet changer New in 2005. CNC . SIEMENS SINUMERIK 840D POWERLINE Milling and turning table 360×0.001º Milling head with controled B axis Chain
Used MAZAK VTC-820/30 (2013)
New in 2013 with CNC Mazatrol Matrix Nexus 2 Table Surface: 3.500×820 Travels (X/Y/Z): 3.000/820/720 mm. Extra Software High Speed 50.000 mm./min. Chip conveyor. Internal Coolant ATC 30
IBARMIA ZV50 L-1600 VMC
Second Hand IBARMIA ZV50 L-1600 VMC New in 2003 with Fanuc 18 iMD Table Surface: 2.000×650 mm. Travels: 1.600/600/800 mm. ATC 30 Tools Internal coolant Refrigeración
Used Quaser MV 184C Vertical Machining Center
Vertical Machining Center Quaser MV 184C – 3 Axis New in 2011. CNC FANUC MILL 0i -MC Travels (Eje X/Y/Z) :1.020/610/610 mm. ATC 30 Tools Internal Coolant 15 Bar Chip Conveyor Tools and

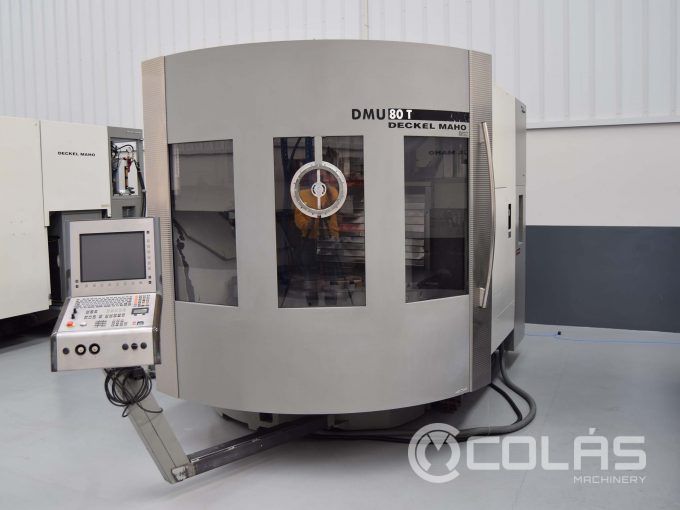

DMG DMU 80T with Heidenhain 426
