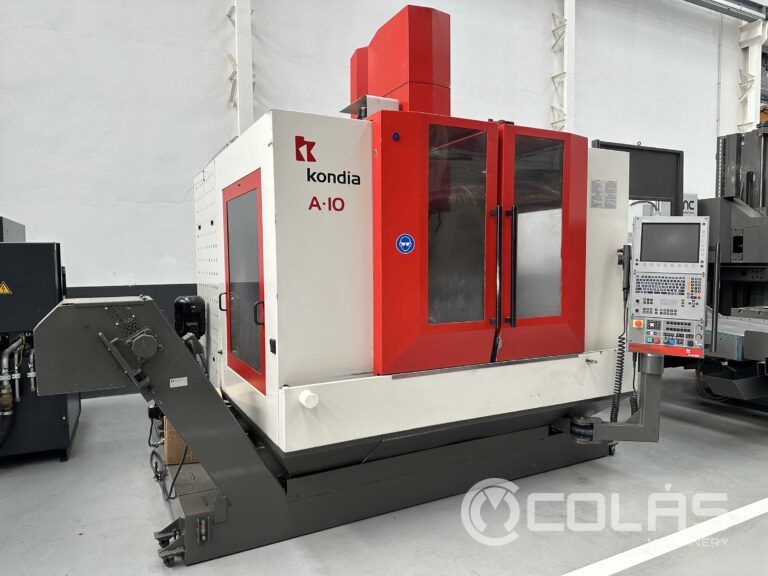

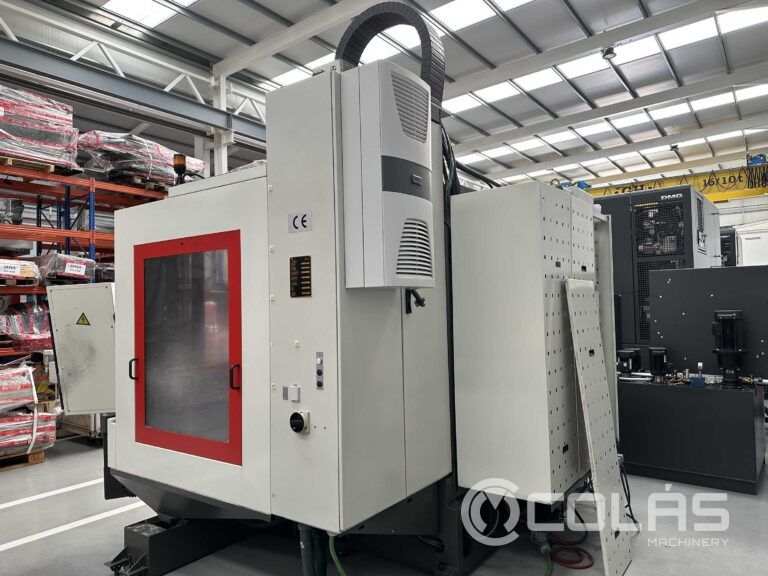

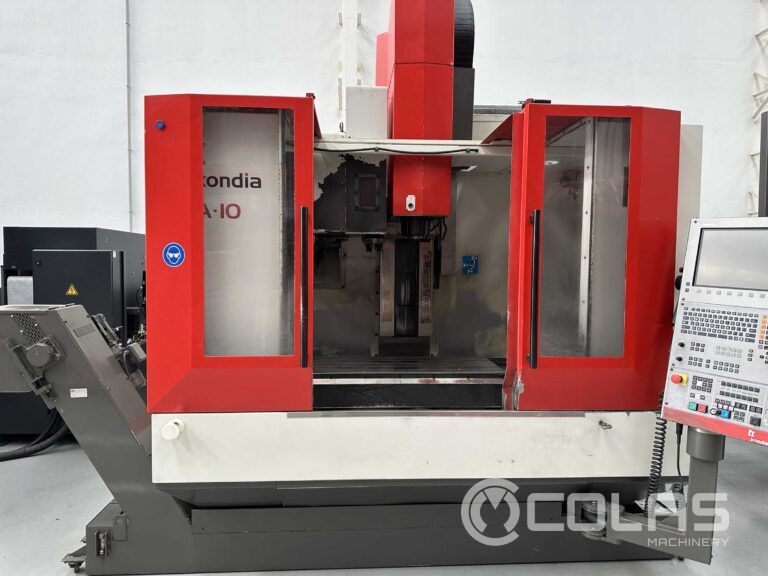

Used KONDIA A-10 VMC
Technical Features of this Second Hand VMC
| Manufacturer | KONDIA |
| Model | A-10 |
| Year | 2008 |

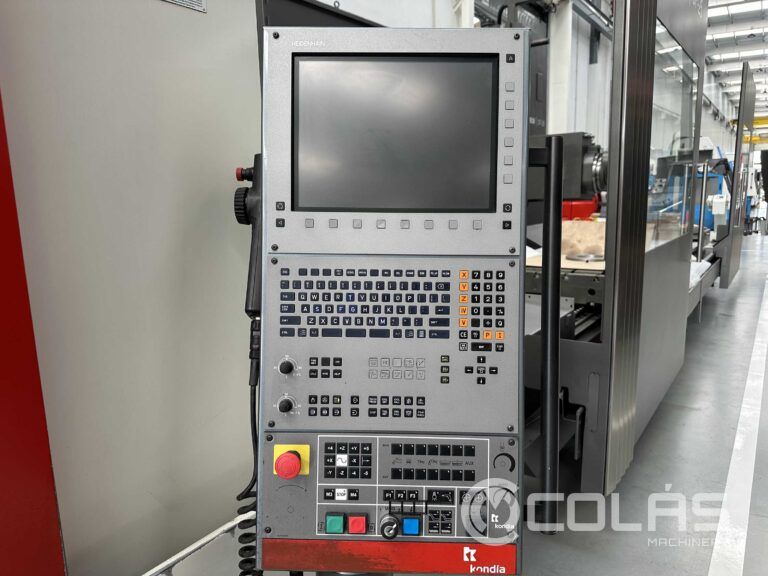

| CNC | HEIDENHAIN TNC 530 |
| Table | |
| Table surface | 1.200 x 500 mm. |
| T-slots (number, width, distance) | 5, 18, 100 mm. |
| Distance table-floor | 885 mm. |
| Dist table-spindle nose (min/max) | 140 / 750 mm. |
| Max weight allowed on table | 850 kg. |
| Travels and feeds | |
| Longitudinal travel (X) | 1.000 mm. |
| Cross travel (Y) | 500 mm. |
| Vertical travel (Z) | 610 mm. |
| Rapid feed X/Y/Z Axis | 30.000 mm./min. |
| Spindle | |
| Taper | ISO 40 DIN 69871 |
| Max spindle speed | 8.000 rpm |
| Spindle power | 22/28 kW |
| Automatic tool changer (ATC) | |
| Type | Cadena |
| Chage type | Ramdom |
| Magazine positions | 40 |
| Max tool width with free adjacent positions | 150 mm. |
| Max tool width without free adjacent positions | 75 mm. |
| Max tool length | 300 mm. |
| Max tool weight | 6,5 kg |
| Other equipment | |
| Internal Coolant | INCLUDED |

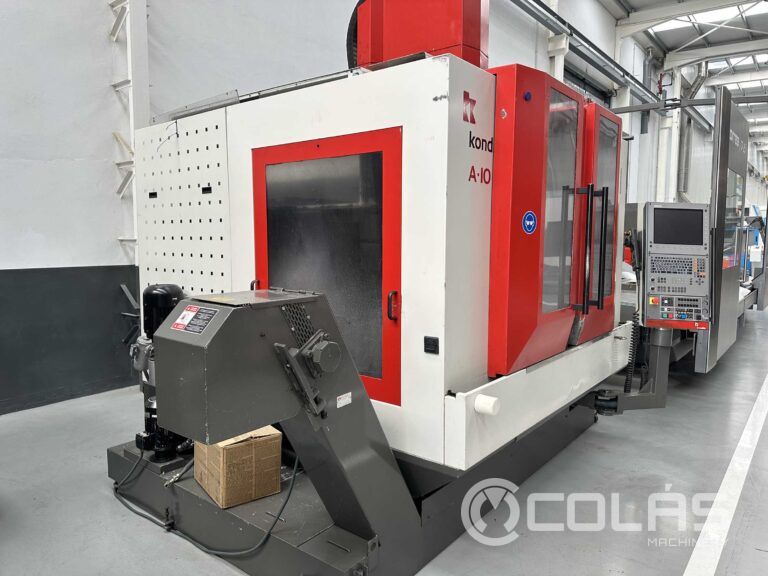

| Chip Conveyor | INCLUDED |
| Portable handwheel | INCLUDED |
| Others | |
| Total power | 37 kW |
| Machine weight | 6.300 kg |
Detailed information of this Second Hand VMC
Used Kondia A-10 vertical center for sale at Maquinaria Colas. It has been reviewed and is ready for inspection and immediate delivery at our exhibition of used machine tool shop in 50720 Zaragoza, Spain
Are you interested in this second-hand Kondia A-10 machining center?
Then do not hesitate and contact us. Whether you just want a no-obligation quote or are interested in getting more information or if you prefer to come see the machine in operation, we will help you.
Call the number +34 976500624, write to sales@maquinariacolas.com or fill out our contact form. We will provide you with all the information you need about this Kondia VMC with Heidenhain TNC 530 CNC
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
