Used Kondia B-1050 VMC
Technical Features of this Second Hand VMC
| Manufacturer | KONDIA |
| Model | B-1050 |
| Year | 2003 |
| CNC | HEIDENHAIN TNC 530 |
| Table | |
| Table surface | 1.200 x 500 mm. |
| T-slots (number, width, distance) | 5, 18, 100 mm. |
| Distance table-floor | 885 mm. |
| Max weight allowed on table | 450 kg |
| Travels and feeds | |
| Longitudinal travel (X) | 1.000 mm. |
| Cross travel (Y) | 500 mm. |
| Vertical travel (Z) | 610 mm. |
| Rapid feed X/Y Axis | 25.000 mm./min. |
| Rapid feed Z Axis | 20.000 mm./min. |
| Spindle | |
| Taper | ISO 40 DIN 69871 |
| Max spindle speed | 8.000 rpm |
| Spindle power | 22/28 kW |
| Automatic tool changer (ATC) | |
| Type | Cadena |
| Chage type | Ramdom |
| Magazine positions | 40 |
| Max tool width with free adjacent positions | 150 mm. |
| Max tool width without free adjacent positions | 75 mm. |
| Max tool length | 300 mm. |
| Max tool weight | 6 kg |
| Tool spul | DIN 69872 |
| Tool change time | 1.415 s |
| Equipment | |
| Internal Coolant | INCLUDED |
| Coolant tank capacity | 350 l. |
| Chip Conveyor | INCLUDED |
| Portable handwheel | INCLUDED |
| Others | |
| Total power | 30 Kw. |
| Machine weight | 5.100 kg |
Detailed information of this Second Hand VMC

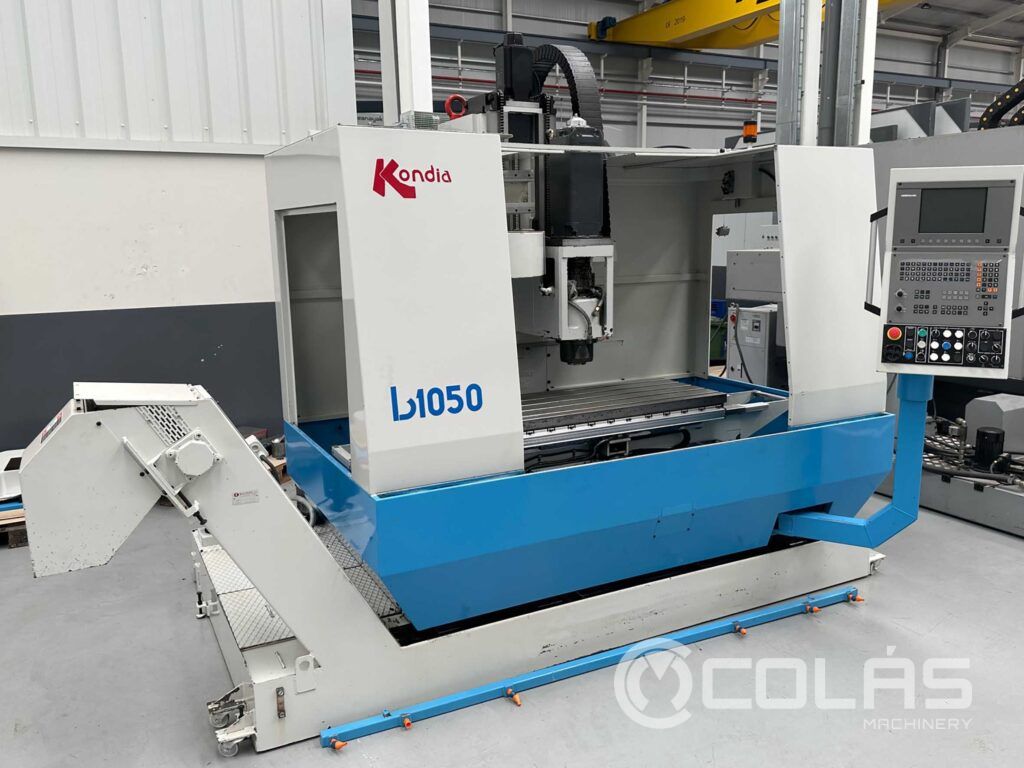

This second-hand Kondia B-1050 machining center is located in our used machine tool warehouse in Zaragoza. A space of more than 12,000 m2 for the exhibition of used machines. It’s ready for immediate delivery and can be inspected under power .
It is an one-meter X-travel machining center new in 2003 with CNC Heidenhain 530 . It is highly equipped with, among other, chip conveyor, 22 positions ATC and internal coolant.
Do you want to buy an used Kondia B-1050 vertical machining center?
If so, do not hesitate and contact us. We will provide you with all the information you may need as well as machine price
You can call us at the telephone number +34 976500624, write an email to sales@maquinariacolas.com or fill in the form and let us contact you.
We will be happy to answer all your questions about this used Kondia B-1050 machining center or any other second-hand machine that we have in stock.
If you prefer to come and see the machine under powr, book an appointment by any of the means above. Upon arrival, everything will be ready to see the machine in operation.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
