CME FS 2
Technical Features of this Bed Type Milling Machine
| Manufacturer | CME |
| Model | FS-2 |
| Year | 2004 |
| CNC | HEIDENHAIN TNC- i530 |
| Table | |
| Table Surface | 2.100 x 850 mm. |
| Max weight allowed on table | 5.500 kg. |
| T-slots | 1 en H-7 y 85 en H-10 |
| Distance between T-slots | 140 mm. |
| Travels and feeds | |
| Longitudinal travel (X Axis) | 2.000 mm. |
| Transversal travel (Y Axis) | 1.000 mm. |
| Vertical travel (Z Axis) | 1.000 mm. |
| Working Feeds (X/Y/Z) | 20.000 mm/min |

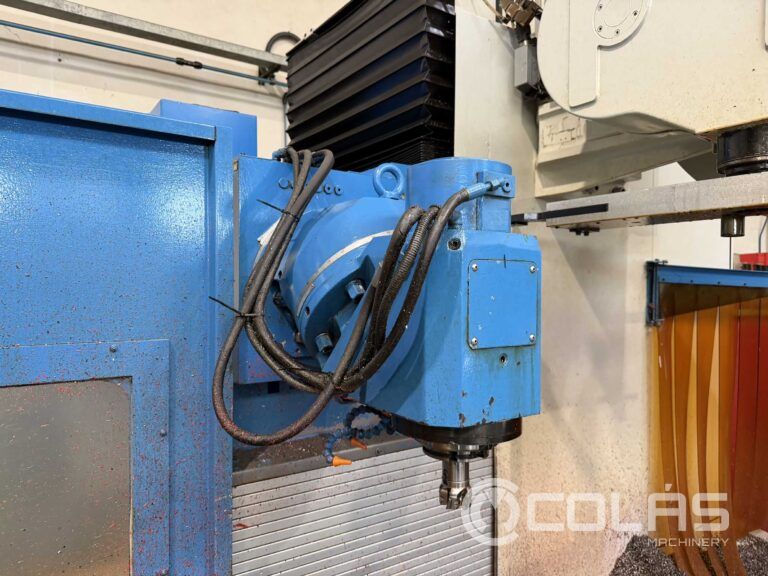

| Main spindle | |
| Type | Universal / manual |
| Taper | ISO-50 DIN69871 |
| Main spindle speed range | 50-4.000 rpm |
| Main spindle power | 22 kW |
| Equipment | |
| Automatic tool chager | INCLUDED |
| Postiions at tool magazine | 20 |
| External coolant | INCLUDED |
| Coolant deposit (175l) with 3 bar pump | INCLUDED |
| Longitudinal chip conveyor | INCLUDED |
| Portable handwheel | HEIDENHANIN HR-410 |
| Ethernet connection | INCLUDED |
| Thermal compensation | INCLUDED |
| Electrical cabinet coolant | INCLUDED |
| Carenage | CE-1 |
| Others | |
| Total power | 35 kVA |
| Machine Dimension | 6022 x 2700 x 2830 mm |
| Machine Weight 15.240 kg. |
Detailed information of this Bed Type Milling Machine

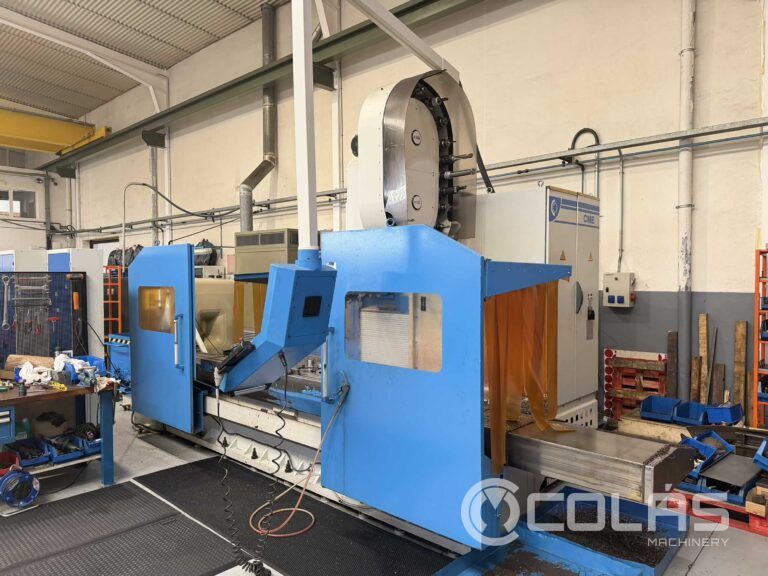

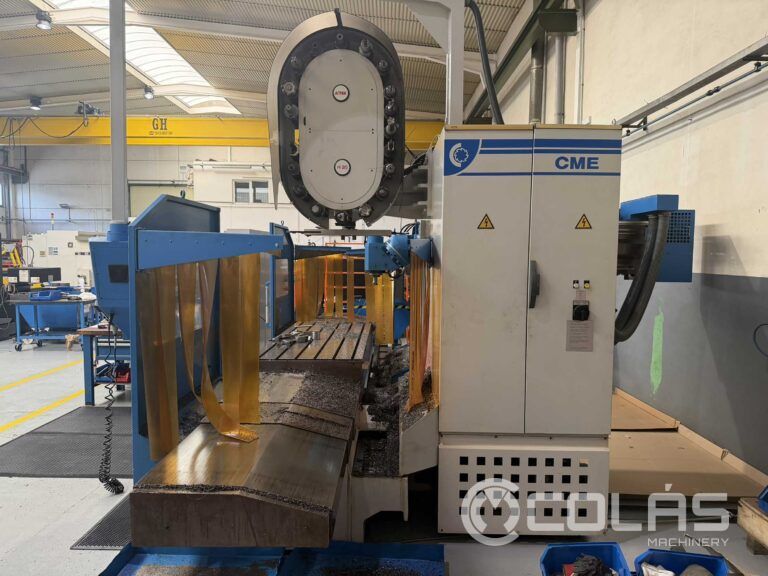

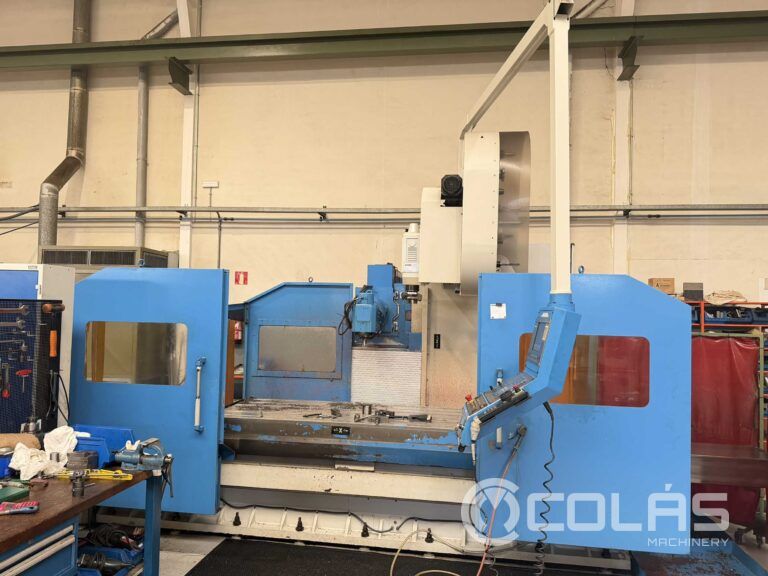

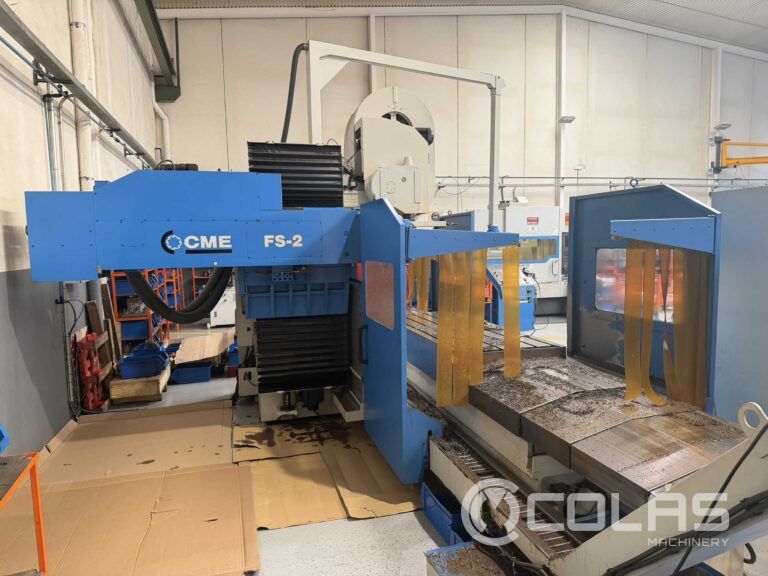

Used CME FS 2 milling machine available at a clearance price. It is still located at its original site, where it can be seen in operation.
Are you looking for a 2-meter fixed-bed CNC milling machine?
If so, don’t hesitate—get in touch with us. Whether you would like a no-obligation quote, need more information about this used CME FS 2, or would like to see it in operation, we are here to help.
Call us at +34 976 500 624, email sales@maquinariacolas.com, or fill out the quote request form on this page.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
