Used Zayer 30 KCU 5000

    • Fresadora Columna Móvil Zayer 30 KC-5000
    • Fresadora Columna Móvil Zayer 30 KC-5000
    • Columna Móvil Zayer de 5 metros usada

    Technical Features of this Moving Column Milling Machine

    CNC Heidenhain TNC 430
    Year 2003
    Table Surface 5.000 X 2.000 mm
    Longitudinal Traverse (X Axis) 5.000 mm
    Cross Traverse (Y Axis) 1.250 mm
    Vertical Traverse (Z Axis) 2.000 mm
    Rapid Traverse X,Y,Z Axis 15.000 mm/min
    Max. Working Feed 5.000 mm/min.
    Taper ISO-50
    Speed Range 2 Ranges
    Main Motor Power 37 Kw.
    Turning Speeds Head 45º 20 – 6.000 r.p.m.
    Turning Speeds Direct Output Head 20 – 6.000 r.p.m.
    Automatic Head Head 45º
    Head 0,001º
    Elbow 0,001º
    Direct Output Head INCLUDED
    Pick-up Station for head Changing   INCLUDED
    Coolant Through Tool 20 Bar  INCLUDED
    Double Rack Pinion System   INCLUDED
    Longitudinal Chip Conveyor   INCLUDED
    Lateral Platform for Operator  INCLUDED
    Machine Weight  42.000 Kg.
    Portable Handwheel  HEIDENHAIN HR-410
    Paint Colour   RAL 7038 – RAL 5012

    Detailed information of this Moving Column Milling Machine



    Technical specifications are not binding and may be modified without notice

    Other available Travelling column milling machines

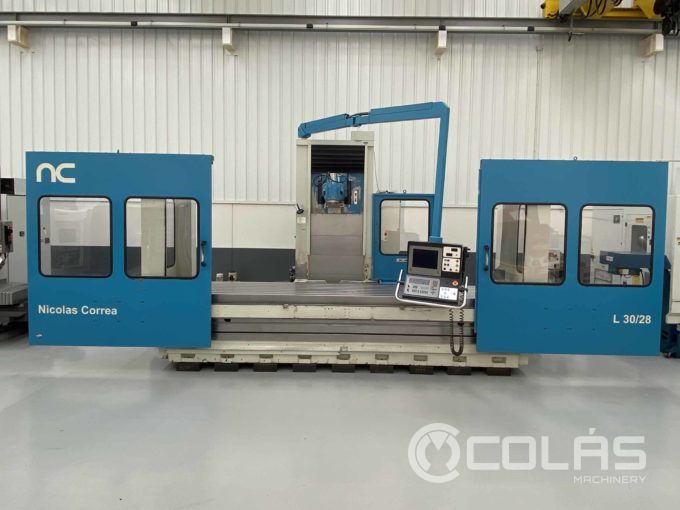

    CORREA L30/28

    Used traveling column milling machine Correa L30/28 New in :1997 CNC HEIDENHAIN TNC-426 Table Surface :4.600 x 1.000 mm X Travel :2.800 mm Y Travel :1.200 mm Z Travel  :1.500

    Second Hand Zayer 30KCU22000 Travelling Column Milling Machine

    ZAYER 30 KCU-22000 Floor Type MiIling Machine

    22 meter travelling column milling machine New inl 2000. CNC SIEMENS 840D Travels (X/Y/Z):22.000/1.500/3.000 mm. AutoIndex Head 45º 0.001º/0.001º ATC 30 Tools Internal Coolant Chip

    Soraluce SP 10000

    Soraluce SP 10000

    New in 2005. Heidenhain iTNC 530 Table size: 10.000×1.100 mm. Travels (X/Y/Z): 8.500/1.200/2.000 mm. Automatic head 2. 5º / 2. 5º ATC 60 tools Internal coolant Tool and part

    Used Soraluce FS 8000 milling machine

    Soraluce FS 8000

    8 meters Soraluce used milling machine wth rototranslating machine New in 2006 with CNC HEIDENHAIN TNC-530 HSCI Table surface :7.500 x 5.000 mm Automatic Head 45º , Horizontal Head and ISO

    7 meter Anayak travelling column milling machine

    Travelling column milling machine ANAYAK HVM-7000

    Used Anayak HVM 7000 with CNC Heidenhain Table Surface:  7.100 X 1.200 mm Travels: 7.000/1.200/2.000 mm. Autoindex Head:  2.5º / 2.5º ATC 40 Tools. Internal Coolant. Chip Conveyor 2

    CME MQ-5000

    Used CME MQ-5000

    CNC Heidenhain TNC 530 New 2011 Automatic Head. Internal Coolant ATC 60 Tools Chip Conveyor Rotary Table 2.000×2.000

    ZAYER 30 KMU 5000

    ZAYER 30 KMU-5000

    New in 1999 CNC HEIDENHAIN TNC-430PA Table Surface: :4.700 x 1.200 mm. Travel (X/Y/Z) :3.400/1.250/2.000 mm. Quill Travel (W Axis) :500 mm. Automatic Head 45º 0.001º/0.001º Twist

    ANAYAK HVM 6000 P

    ANAYAK HVM 6000-P

    New in:2004 CNC: HEIDENHAIN TNC 530 Travels (X/Y/Z): 5.300/1.500/2.000 mm. Table Surface :6.000 x 1.200 mm Automatic Orthogonal Head 1º/1º Internal Coolant 20 Bar Chip
