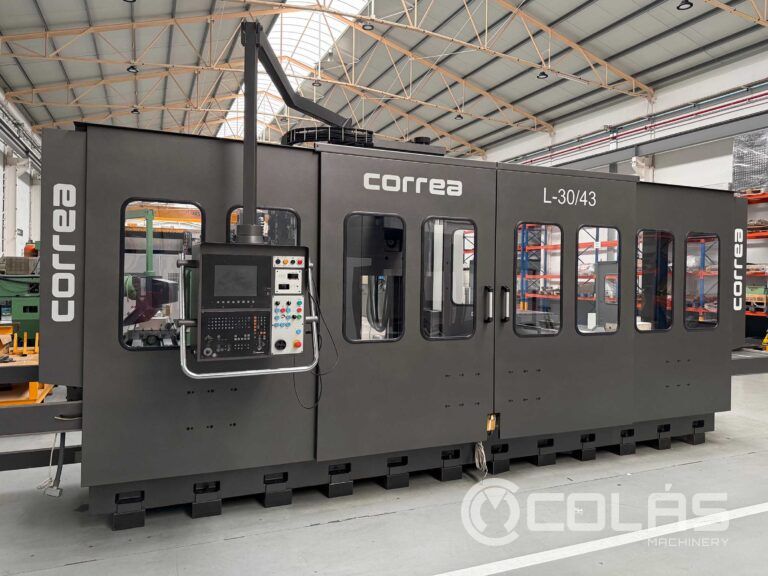

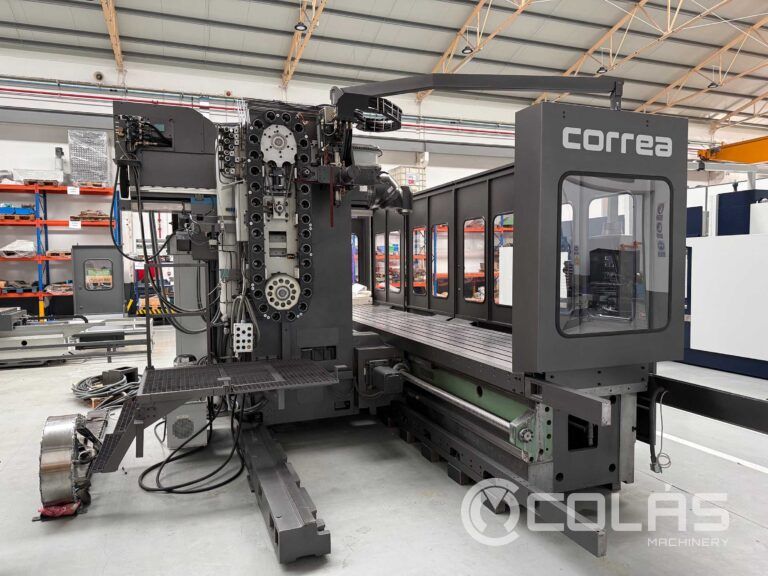

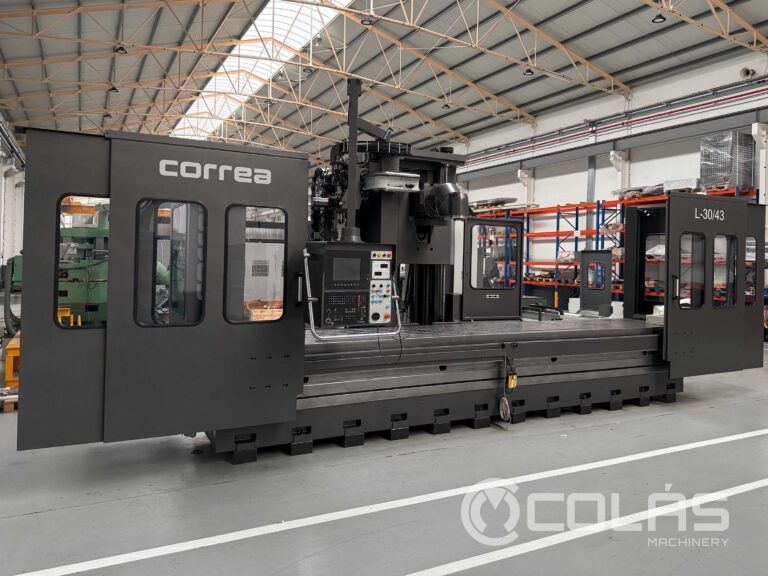

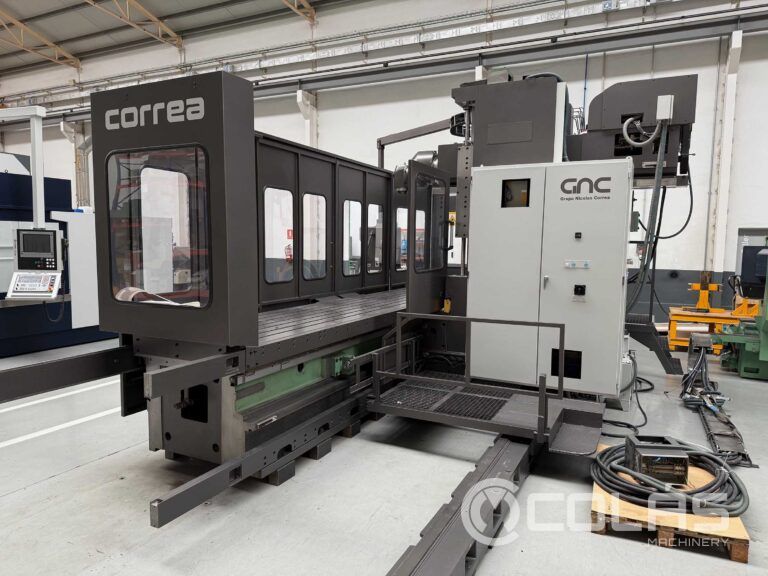

Used Correa L30/43
Technical Features of this Moving Column Milling Machine
| Manufacturer | NICOLÁS CORREA |
| Model | L30-43 |
| Year | 1998 |
| CNC | HEIDENHAIN TNC 426 PB |
| Table Surface | 6.120 x 1.000 mm |
| Carrying Load Table | 20.000 Kg. |
| Longitudinal Traverse (X Axis) | 4.300 mm |
| Transversal Traverse (Y Axis) | 1.200 mm |
| Vertical Traverse (Z Axis) | 1.500 mm |
| Rapid Traverse | 12.000 mm/min |
| Maximum Working Feed | 5.000 mm/min |
| Auto Indexing Head | 2. 5º – 2. 5º |
| Taper | ISO-50 |
| Main Motor Power | 30 kW |
| Turning Speeds | 20 – 3.000 r.p.m. |
| Automatic Tool Charger (ATC) | INCLUDED |
| ATC Positions | 40 |
| Soluble Oil Tank with Paper Filter | INCLUDED |
| Portable Hand Wheel | HEIDENHAIN HR-410 |
| Machine Weight | 28.000 Kg. |
Detailed information of this Moving Column Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
