    Technical Features of this Second Hand VMC

    Manufacturer JOHNFORD
    Model VMC-2000
    Year 2008
    CNC HEIDENHAIN iTNC 530
    Table surface 2.200 x 850 mm
    Max weight allowed on table 4.800 kg
    Longitudinal Travel (X- Axis) 2.050 mm
    Transversal Travel (Y-Axis) 850 mm
    Vertical Travel (Z- Axis) 800 mm
    Min-Max. distance from table to nose head 150 – 950 mm
    Distance from main axis to column 885 mm
    Rapid feed (X,Y Axis) 15.000 mm/min
    Rapid feed (Z Axis) 12.000 mm/min
    Max. Working Feed 8.000 mm/min
    Taper BT40 (BIG PLUS SYSTEM)
    Spindle Speeds 10.000 rpm
    Speed ranges 2
    Engine Power 25 H.P.
    Automatic tool changer INCLUDED
    Positions at tool magazine 60
    Tool selection type RANDOM, vertical bidireccional
    Max tool diameter (full magazine) 75 mm
    Max tool diameter (alternative) 100 mm
    Max tool length 320 mm
    Max tool weight 10 kg
    Rigid Tapping INCLUDED
    Portable handwheel INCLUDED
    2 longitudinal chip conveyor INCLUDED
    Internal coolant 20 bar INCLUDED
    Independent deposit with filter unit INCLUDED
    Part touch probe RENISHAW OMP 60
    Tool touch probe INCLUDED
    Integral fairing INCLUDED

    Detailed information of this Second Hand VMC

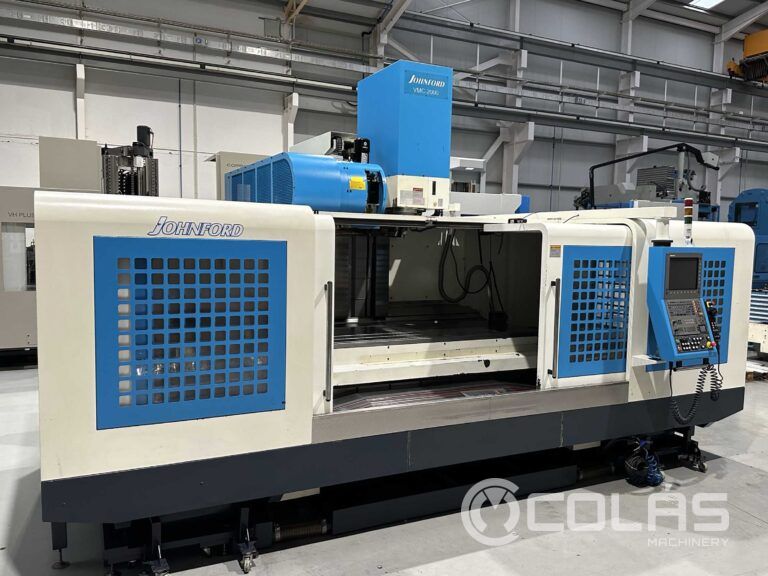

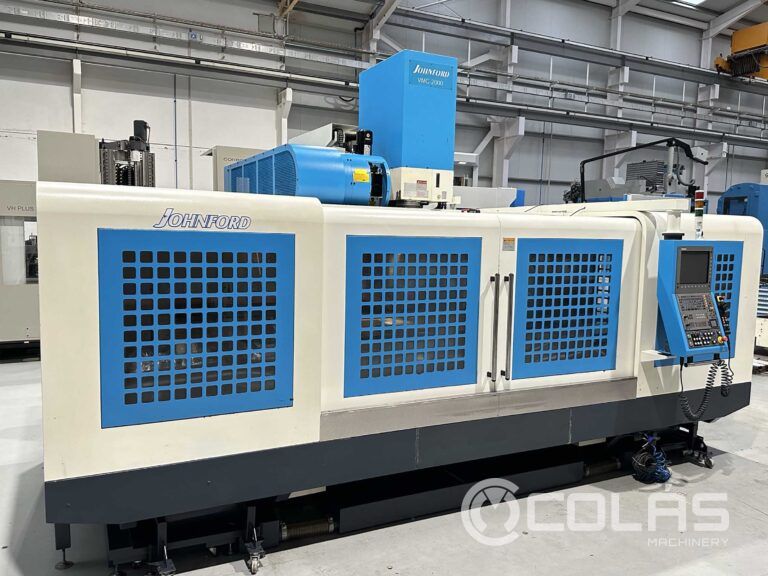

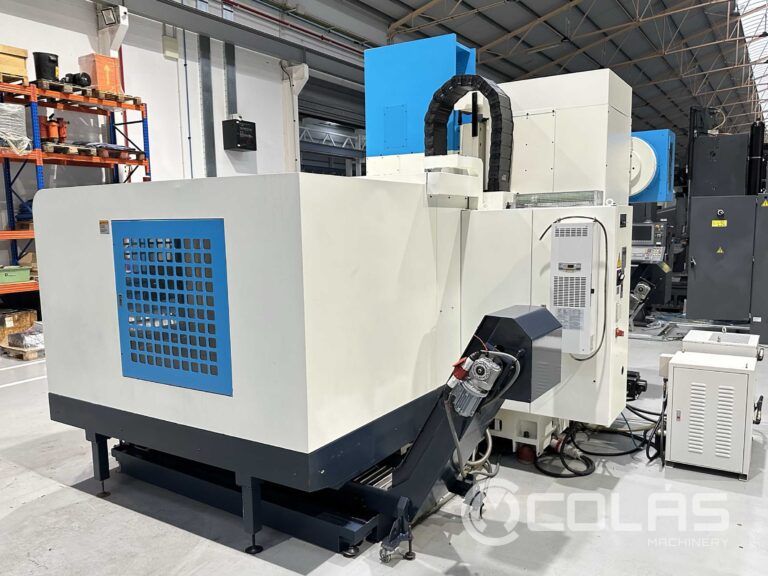

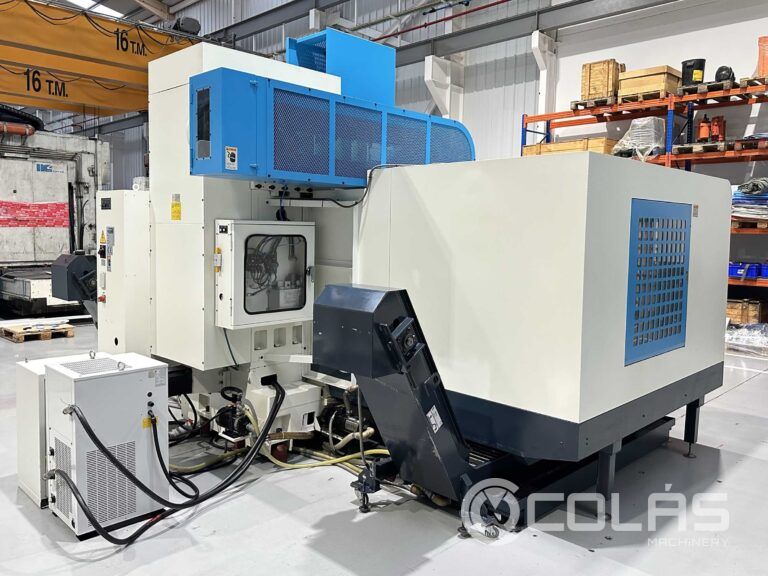

    Used JOHNFORD VMC-2000 vertical machining center for sale. It is located at our second-hand machinery warehouse  in 50720 Zaragoza, Spain. It has been overhauled and is ready for immediate inspection and delivery. It can be seen under power.

    Are you interested in this used Johnford vertical machining center?

    So don’t think about it and contact us. Call +34 976500624, write to sales@maquinariacolas.com or fill in the contact form. We will be happy to answer any questions you may have or book an appointment to see this JOHNFORD VMC-2000 in operation.
