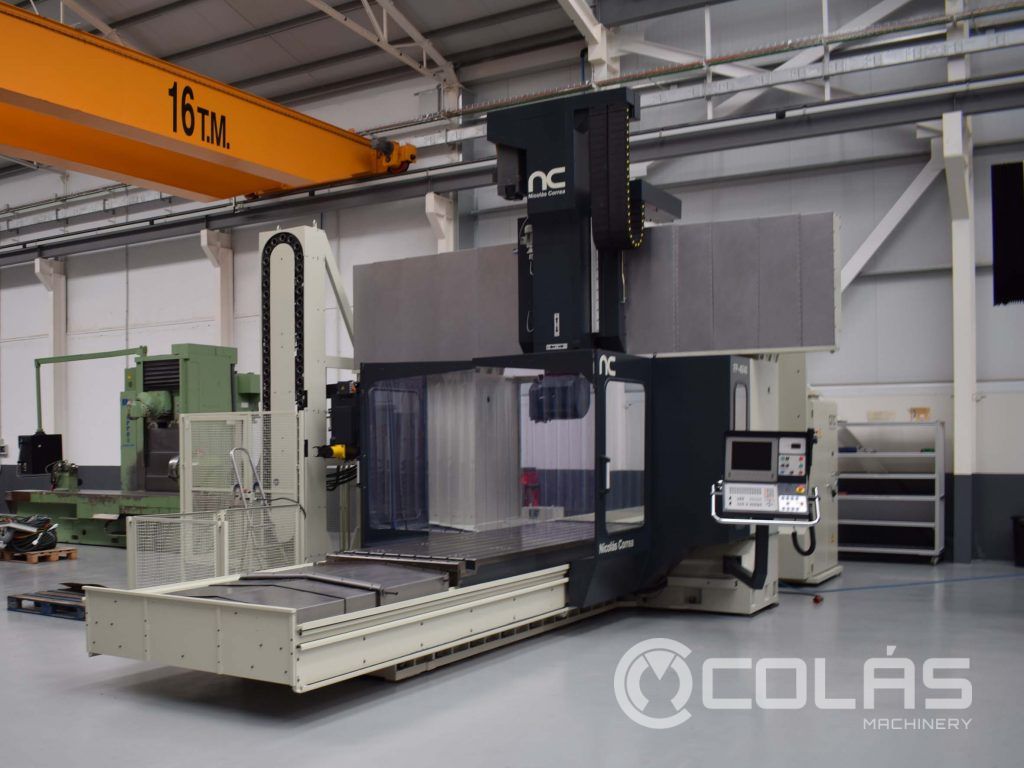

Used Correa FP40/40 S ATC UDG
Technical Features of this Brige Type Milling Machine
| Table Surface | 4.500 X 1250 mm |
| Longitudinal Traverse (X Axis) | 4.000 mm |
| Cross Traverse (Y Axis) | 3.000 mm |
| Vertical Traverse (Z Axis) | 1.000 mm |
| Distance Between Columns | 2.300 mm |
| Rapid Feed (X Axis) | 15.000 mm/min |
| Rapid Feed (Y ,Z Axis) | 12.000 mm/min |
| Max. Working Feed | 7.000 mm/min |
| Head Type | Ortogonal UAGA |
| Orthogonal Milling Head indexing every | 2.5º / 2.5º |
| Taper | ISO-50 / DIN 69871 A |
| Spindlespeed | 3.000 r.p.m. |
| Main Motor Power | 30 KW. |
| Range Speeds | 2 Ranges |
| Carrying Load Table | 10.000 Kg. |
| Machine Weight | 33.000 Kg. |
| Tool Setting Probe | INCLUDED |
| Portable Handwheel | HEIDENHAIN HR 410 |
| ATC | INCLUDED |
| Nº Positions ATC | 60 TOOLS |
| NIKKEN Tilting table CNC 320 VF | INCLUDED |
| Control | HEIDENHAIN TNC 426 PA |
| Manufacturing Year | 1997 |
Detailed information of this Brige Type Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
