Bridge Type Milling Machine Zayer FP 10000
Technical Features of this Brige Type Milling Machine
Table Surface | 10.000 X 3.000 mm |
X- Axis (Joint Tables) | 10.000 mm |
Y- Axis | 4.200 mm |
Z-Axis | 1.100 mm |
Distance Between Columns | 3.500 mm |
Distance Between Table Surface to Nose Axis Head Direct Output | 2.000 mm. |
Distance Between Table Surface to Nose Axis Head 45º | 1.298 mm. |
Allowed weight on the table | 30.000 Kg.. |
Rapid Traverse (X,Y,Z) | 10.000 mm/min |
Working feed (X ,Y ,Z) | 6.000 mm/min |
Speed Universal Head 45º | 3.000 rpm |
Speed of the direct output head | 3.000 rpm |
Automatic Speed TWIST | 3.000 rpm |
Main Engine Power | 40 Kw |
Speed Ranges | 2 Ranges |
Number of Heads | 3 |
Taper | ISO 50 |
Manual Exchage of Heads | INCLUDED |
Hydraulic Tool Clamping | INCLUDED |
Machine Colour | RAL 7038 – 5012 |
Portable Handwheel | INCLUDED |
Machine Weight | 80.000 Kg. |
Axis and Head Engines manufacturer | SIEMENS |
Machine Condition | EXCELLENT |
ADDITIONAL EQUIPMENT | |
Automatic Tool Charger 30 Tools | INCLUDED |
Universal Head 45º (3.000 rpm) | |
Head Manual Taken/Pick up | |
Automatic Rotation Upper Body | |
360 pos x 1º | INCLUDED |
Direct Output Head | |
Head Manual Taken/Pick up | INCLUDED |
Spherical Automatic Head | |
Head Manual Taken/Pick up | |
Continuous Rotation in both bodies | INCLUDED |
Retractable Manual Support in the Right Side | INCLUDED |
Detailed information of this Brige Type Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Bridge and Gantry milling machines

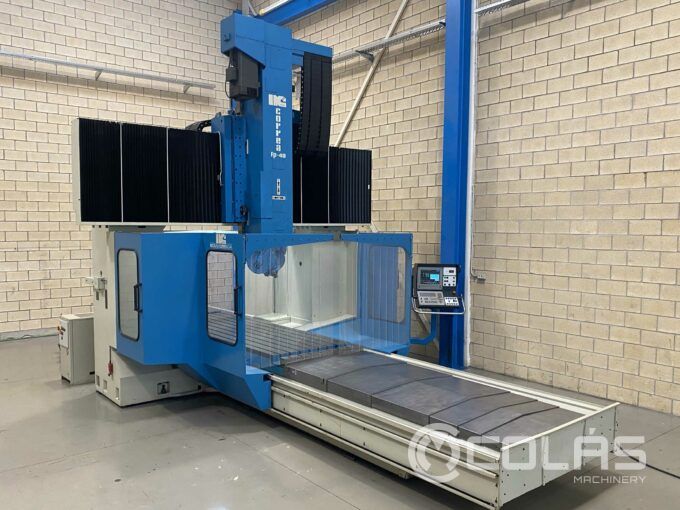

CORREA FP40/50 5 Axis in Liquidation Sale
