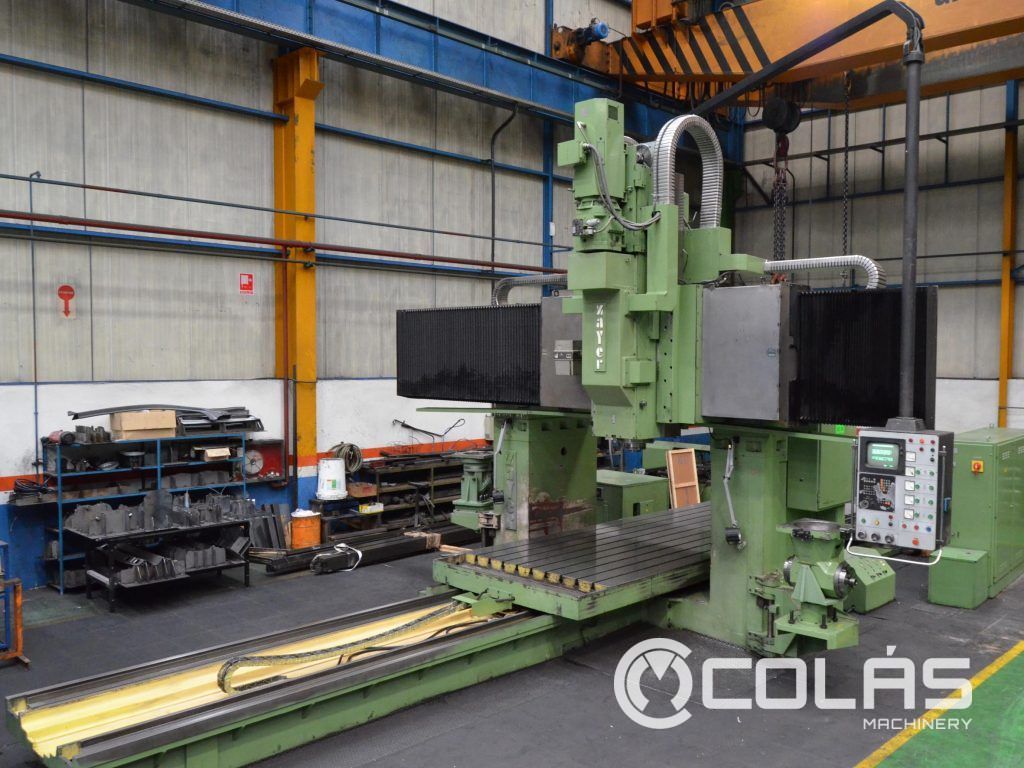

ZAYER FP 4500 Planer-Type Milling M/C – Double Column
Other available Bridge and Gantry milling machines

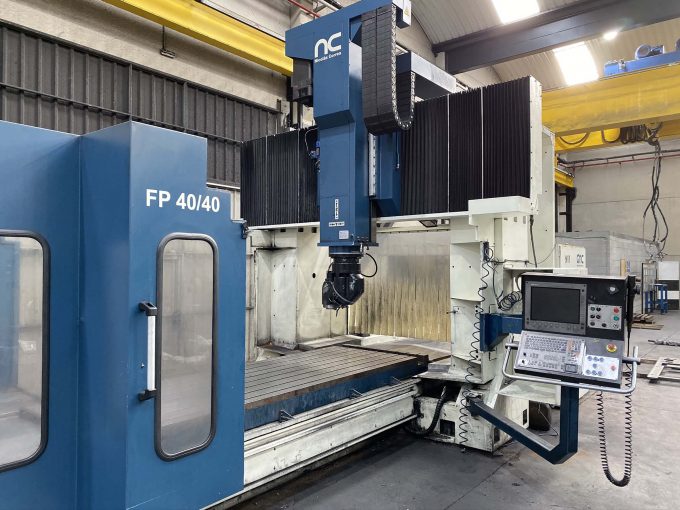

Nicolás Correa FP40-40
Manufactured in 1997 with HEIDENHAIN TNC 426M Table: :4,000 x 1,250 mm Travels (X/Y/Z) :3,500/2,500/1,000 mm Distance between columns: 2,300 mm Direct head and 45º head Chip
Zayer TEBAS 5000
New in 2013 with HEIDENHAIN iTNC-530 HSCI CNC. Automatic head 45º 0.001º/0.001º 6000 rpm 43 kW Direct output head reduction 1:2.29 Automatic head changer ATC 20 tools Chip conveyor-
Bridge Type Milling Machine Correa FP 30/30 ATC
New in 2000. CNC HEIDENHAIN TNC-426. Table Surface: 3.000 X 1.250 mm. Distance between Columns:1.740 mm. Internal Coolant ATC 30 Tools. External Electrospindle 18.000 rpm 90º angle head
Correa RAPID-50
New in 2005 with CNC FIDIA C20 (Heidenhain TNC 530 optional) Table surface: 5,000 x 2,000 mm Travels (X/Y/Z): 5,000/3,100/1,000 mm Distance between columns: 2,800 mm. Automatic head UAD
AWEA VP-2012
AWEA bridge type milling machine on liquidation sale New in 1998 with Siemens 810D CNC Table surface: 2,200 x 1,100 mm Travels (X/Y/Z) :2,000 /1,200/760 mm Distance between columns: 1,300
Used Correa FP40/30 Bridge Type Milling Machine
Used Correa FP40/30 ATC UDG Bridge Type milling machine. CNC Heidenhain TNC 426. Orthogonal Autoindex Head 2.5º/2.5º. Internal Coolant. ATC 10 Tools.
Nicolás Correa FP 50/80 5 axis
New in 2010 with CNC iTNC-530 5 axis Table: 8.500×2.500 mm. Travels (X/Y/Z) :8.000/3.800/1.250 mm Distance between columns: 3.100 mm 5-axis automatic head B/C axis oscillation range: ±
Technical Features of this Brige Type Milling Machine
| CNC | Heidenhain TNC 355 |
| Year | 1990 |
| Table Surface | 4.500 X 2.000 mm |
| Longitudinal Traverse (X Axis) | 4.500 mm |
| Transversal Traverse (Y Axis) | 3.200 mm |
| Vertical Traverse (Z Axis) | 1.000 mm |
| Ram Quill Vertical Traverse (W) | 400 mm. |
| Distance Between Columns | 2.500 mm |
| Min- Max. Height From Table Surface To Spindle Nose | 300-1.300 mm |
| Rapid Traverse X,Y,Z, Axis | 10.000 mm/min |
| Max. Working Feed X,Y,Z | 5.000 mm/min |
| Universal Head 45º | INCLUDED |
| Direct Output Head | INCLUDED |
| Special Ram with Quill Exit | Ø 220 mm. |
| Quill Hydraulic Block | INCLUDED |
| Turning Speed | 1.800 r.p.m. |
| Hydraulic Tool Clamper | INCLUDED |
| Taper ISO 50 DIN 2080 | |
| Main Motor Power | 50 CV |
| Speed Ranges | 2 Gamas/ Ranges |
| Manual Taken Heads | INCLUDED |
| Retractable Manual Support in the right side for Double Exit Head | INCLUDED |
| Retractable Manual Support in the left side for Head 45º | INCLUDED |
| Machine Colour | RAL 6011 |
| Portable Hand wheel | INCLUDED |
| Table Max. Carrying Load | 20.000 Kg. |
| Machine Weight | 52.000 Kg. |
| Machine Condition | GOOD |
Detailed information of this Brige Type Milling Machine
Used ZAYER FP 4500 Planer-Type Milling M/C – Double Column. Can be inspected under power. Ready to be delivered. More info with pictures and price here.
