Travelling Column Milling Machine CME MQ-12000
Technical Features of this Moving Column Milling Machine
Table Surface | N/A – TBC | |
Longitudinal Traverse (X Axis) | 12.000 mm | |
Transversal Traverse (Y Axis) | 1.200 mm | |
Vertical Traverse (Z Axis) | 4.000 mm | |
Quill (Z Axis) | 700 mm. | |
Quill Diameter (W Axis) | 150 mm. | |
1.000 + 700 mm. | ||
Max. Working Feed X-Y-Z | 4.000 mm/min. | |
Rapid Traverse | 30.000 mm/min. | |
Automatic Tool Charger | INCLUDED | |
Positions in ATC | 120 Tools | |
Taper at Orthogonal Head | ISO-50 | |
Taper Spindle Quill | ISO-50 | |
Turning Speeds Orthogonal Head | 20 – 4.000 r.p.m. | |
Turning Speeds Spindle Quill | 20 – 2.000 r.p.m. | |
Auto Indexing Orthogonal Head | ||
A Body | 1º | |
B Body | 1º | |
Main Motor Power | 35 Kw. | |
Speed Ranges (ZF Box) | 2 Gamas/ 2 Ranges | |
Longitudinal Chip Conveyor | INCLUDED | |
Twin Screws – Motor (Z Axis) | INCLUDED | |
Double Motor (X A xis) | INCLUDED | |
Control Panel with elevator at | ||
column side | INCLUDED | |
Coolant through tool 20 BAR | INCLUDED | |
Total Power Required | 85 Kva. | |
Machine Weight | 82.000 Kg. | |
Portable Handwheel | HEIDENHAIN HR-410 | |
Machine Condition | EXCELLENT |
Detailed information of this Moving Column Milling Machine
Travelling Column Milling Machine CME MQ-12000 with Heidenhain TNC 530. Manufactured in 2011 but never used. Great opportunity.
MQ travelling column milling machines with CNC control allow to manufacture great precision and high productivity pieces. These machines are built with great versatility as a product with high structural rigidity product to assure a suitable rating in hard working conditions, in rigidity and precision
The structural main pieces (bed, table, column, vertical carriage, longitudinal carriage and ram) are pearlitic cast-iron GG30, stabilized and strongly veined.
The guidance of the machine is done on prismatic rectified guides,designed to support heavy charges, obtaining a high rigidity and a big precision.
The transmission of the longitudinal axis depends on X course of the machine, it can be done through ballscrews for courses inferior to 10.000 mm. or double pinion – rack system, for courses upper to 10.000 mm. The transmission of Z and Y axes are realized through the ballscrews
If your want to buy a Travelling Column Milling Machine CME MQ-12000 please contact us. You can call us to our customer service number +34 976500624 or use the contact form appearing at the end of the page.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Travelling column milling machines

ZAYER 30 KMU-5000
New in 1999 CNC HEIDENHAIN TNC-430PA Table Surface: :4.700 x 1.200 mm. Travel (X/Y/Z) :3.400/1.250/2.000 mm. Quill Travel (W Axis) :500 mm. Automatic Head 45º 0.001º/0.001º Twist

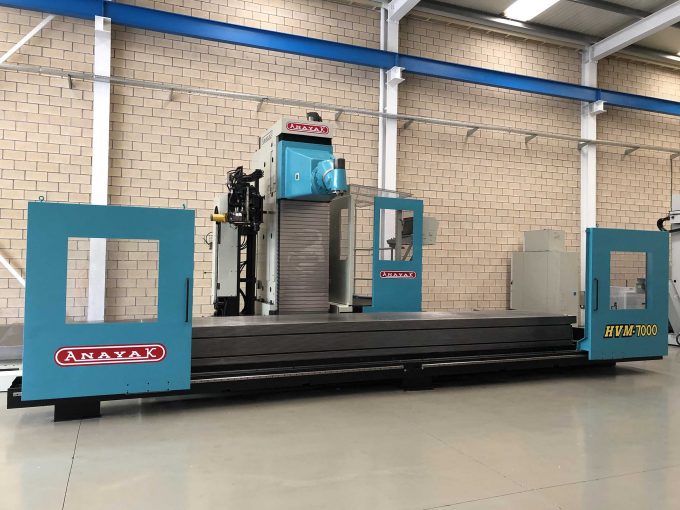

Travelling column milling machine ANAYAK HVM-7000
