MAZAK NEXUS 410A-II VMC
Other available Vertical Machining Centers
QUASER MV204CPL/12
Travels (X/Y/Z): 1,524/700/610 mm Table: 1,700 x 700 mm Taper: BT 40 BIG PLUS 30-position magazine 20 bar internal coolant 2 cross chip conveyor Longitudinal chip

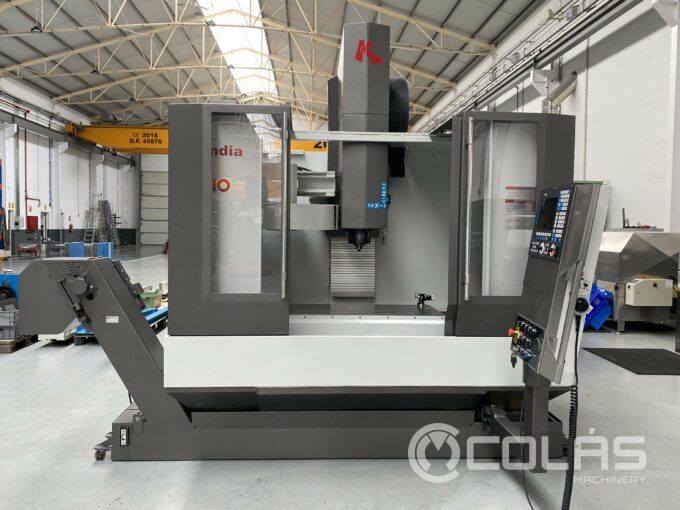

Used Kondia B-1050 VMC
Second Hand Kondia VMC with Heindenhain TNC530 Table Surface: 1.200 x 500 mm. Travels (X/Y/Z): 1.000/500/610 mm. Chip conveyor ATC 22 Tools Internal
Johnford SV41 with pallet changer
Johnford VMC with pallet changer New in 2007 with FANUC 18i MC.2 Table: 1,200 x 600 mm Travel (X / Y / Z) :1,050 / 610 / 610 mm 20-tool ATC Internal coolant 20 Bar 2 longitudinal and 1
Used KONDIA A-10 VMC
Second Hand Kondia VMC New in 2006 CNC HEIDENHAIN 530 Table Surface :1.200 x 500 mm. Travels ( X/Y/Z) :1.000/500/610 mm. ATC 40 Tools Internal Coolant Chip
Second Hand DMG DMF-260
New in 2011 with CNC SIEMENS SINUMERIC 840D Table dimmesion: 2,900 x 700 mm. Travels (X/Y/Z) :2,600/700/700 mm ATC 3o Internal coolant 40 Bar / 600 l Longitudinal chip
Johnford SV41
Johnford 3+2 axis machining center New in 2007 with HEIDENHAIN iTNC 530 Table: 1,200 x 600 mm Travels (X / Y / Z) :1,050 / 610 / 610 mm 20-tool ATC Golden Sun CNCT 321 rotary table
Kondia A15
Used Kondia vertical machining center New in 2009 with HEIDENHAIN TNC 530 CNC Table Dimenssions: 1,550 x 700 mm. Travel (X/Y/Z axis): 1,500/700/700 mm. 40-tool ATC Internal coolant Chip
GORATU G INNOVA 15
New in 2004 with FAGOR 8055 MC Table surface: 1,725×650 mm. Travels (X/Y/Z): 1,5007700/700 mm. Spindle speed 10,000 rpm 24-tool
Technical Features of this Second Hand VMC
| Year | 2009 |
| CNC | MAZATROL MATRIX NEXUS |
| Table Size | 900 x 410 mm. |
| Table Surface Configuration | 18 mm T slotx3, 125 mm pitch |
| Carrying Load Table | 500 kg. |
| Longitudinal Traverse (X Axis) | 560 mm. |
| Cross Traverse (Y Axis | 410 mm. |
| Vertical Traverse (Z Axis) | 510 mm. |
| Rapid Feed Axis | 36 m/min. |
| Spindle Speed | 12.000 r.p.m. |
| Taper | ISO 40 DIN 69871 |
| Spindle Power | 55 HP |
| Tool Charger | INCLUDED |
| ATC Positions | 30 |
| Tool Touch Probe | INCLUDED |
| Chip conveyor | INCLUDED |
| Machine Weight | 4920 kg. |
| Total Power Required | 55 kW. |
| Machine Condition | EXCELLENT |
| Machine Dimensions ( LxWxH) | 4980x3000x3780 mm. |
Detailed information of this Second Hand VMC
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
