Vertical Machining Centre Johnford VMC-1324
Technical Features of this Second Hand VMC
| Table Surface | 1.400X 710 mm | |
| Longitudinal Traverse X Axis | 1.350 mm. | |
| Transversal Traverse Y Axis | 760 mm | |
| Vertical Traverse Z Axis | 710 mm. | |
| Rapid Traverse (X,Y,Z) | 15.000 mm/min Max. | |
| Working Feed (X,Y,Z) | 8.000 mm/min | |
| Carrying Load Table | 3.200 kg. | |
| Taper | BT-50 Turning Speeds | 4.500 rpm. |
| Head Ranges | 2 Ranges | |
| Main Engine Power | 20 Cv | |
| Tool Charger RANDOM | INCLUDED | |
| Tool Charger | 24 Tools. | |
| Internal Coolant through tool (20 Bar) | INCLUDED | |
| Guarding Door | INCLUDED | |
| Rigid Tapping | INCLUDED | |
| Ready for 4th Axis (Wired + Regulator) | INCLUDED | |
| Tools and Accesories | INCLUDED | |
| Control | FANUC O M | |
| Machine Weight | 12.000 Kg. | |
| Manufacturing Year | 1998 |
Detailed information of this Second Hand VMC
Vertical Machining Centre Johnford VMC-1324 built in 1998 with CNC Fanuc OM
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Vertical Machining Centers
Used MAZAK VTC-820/30 (2013)
New in 2013 with CNC Mazatrol Matrix Nexus 2 Table Surface: 3.500×820 Travels (X/Y/Z): 3.000/820/720 mm. Extra Software High Speed 50.000 mm./min. Chip conveyor. Internal Coolant ATC 30
DMG DMU 80T with Heidenhain 426
New in: 2001 CNC:Heidenhain 426 Table Dimension: 1.250 x 700 mm. Travels (X/Y/Z): 880/630/630 mm. C Axis in Table: CONTINUOUS B Axis Turning Head: -91º / +12º
Johnford DMC 1500 VMC (Double Column)
Johnford VMC with CNC Heidenhain TNC 530 Travels (X/Y/Z): 1500/900/792 mm. Distance between columns : 1060 mm. ATC 24 Tools Chip Conveyor Internal Coolant 20
Used MORI SEIKI NVX 5100 II
5 Axis Machining Center New in 2013 CNC M750 BM Travels (X/Y/Z): 1050/530/510 mm. Rotary Table 4º 5º Axis (Continuous) 5AX-DDRT 200 ATC 30 Tools Internal Coolant Chip
Used MAZAK VTC 200B
Second Hand Vertical Machining Center New in 1.999. CNC MAZATROL FUSIÓN 640 M Table Surface :1.460 X 460 mm Travels (X/Y/Z): 1.120/510/510 mm. ATC 24 Tools. Rigid Taper Tool leght touch

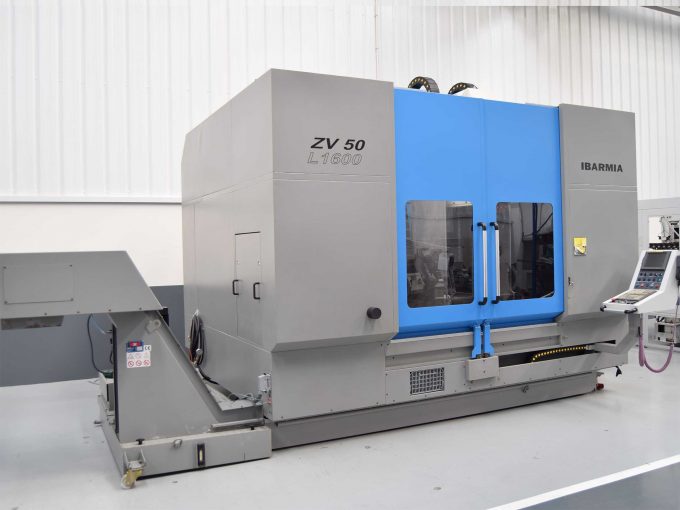

IBARMIA ZV50 L-1600 VMC
