Características técnicas de esta fresadora pórtico usada
Brand | Zayer |
Model | KPU 5000AR |
CNC | HEIDENHAIN TNC-430M |
New in | 2001 |
Table | |
Table surface | 5,000 x 1,800 mm |
Admissible weight on table | 15,000 kg |
Travels and feeds | |
Travels (X/Y/Z) | 4,700/3,050+873 /1,100 mm |
Distance between columns | 2,300 mm |
Maximum height from the table to the nose with direct output head | 1,200 mm. |
Maximum height from the table to the nose with a 45º head in a vertical/horizontal position | 1,175 / 1,240 mm. |
Rapid Feed / Work Feed (X, Y, Z) | 15,000 /5,000 mm/min |
Heads | |
45º Automatic Head | INCLUDED |
45º head indexing | 0.001º/0.001º |
Automatic Head Taper 45º | ISO-50 – DIN 69871 |
Automatic head speed 45º | 6,000 r.p.m. |
Main motor power | 37 kW |
Number of automatic ranges | 2 |
Direct Output Head | INCLUDED |
Direct output head speed | 6,000 r.p.m. |
Direct output head cone. | ISO-50 – DIN 69871 |
Equipment | |
Axis and Spindle Motors | DIGITAL SIEMENS |
Ethernet connection | INCLUDED |
Portable Handwheel | HEIDENHAIN HR-410 |
Refrigeration Equipment Heads + Ram | INCLUDED |
Manual Change of Heads | INCLUDED |
Manual Retractable Support on the Right Side for 45º Head | INCLUDED |
Manual Retractable Support on the Right Side for Direct Output Head | INCLUDED |
Double Chip Evacuator one on each side of the table | INCLUDED |
Deposit 1,000 l. Coolant with Paper Filter + Magnetic Separator | INCLUDED |
Cooling through the tool 10 bar | INCLUDED |
External cooling of the tool 10 bar | INCLUDED |
Automatic loader of 100 tools | INCLUDED |
Automatic Tool Change in 45º Head and Direct Output Head. INCLUDING | |
Protection doors + Railing | INCLUDED |
CNC 3D ROT function. | INCLUDING |
Positioning accuracy | 0.010mm. |
Repeatability precision | 0.005 mm. |
Machine Color | RAL 6011 |
Información detallada de esta fresadora pórtico usada

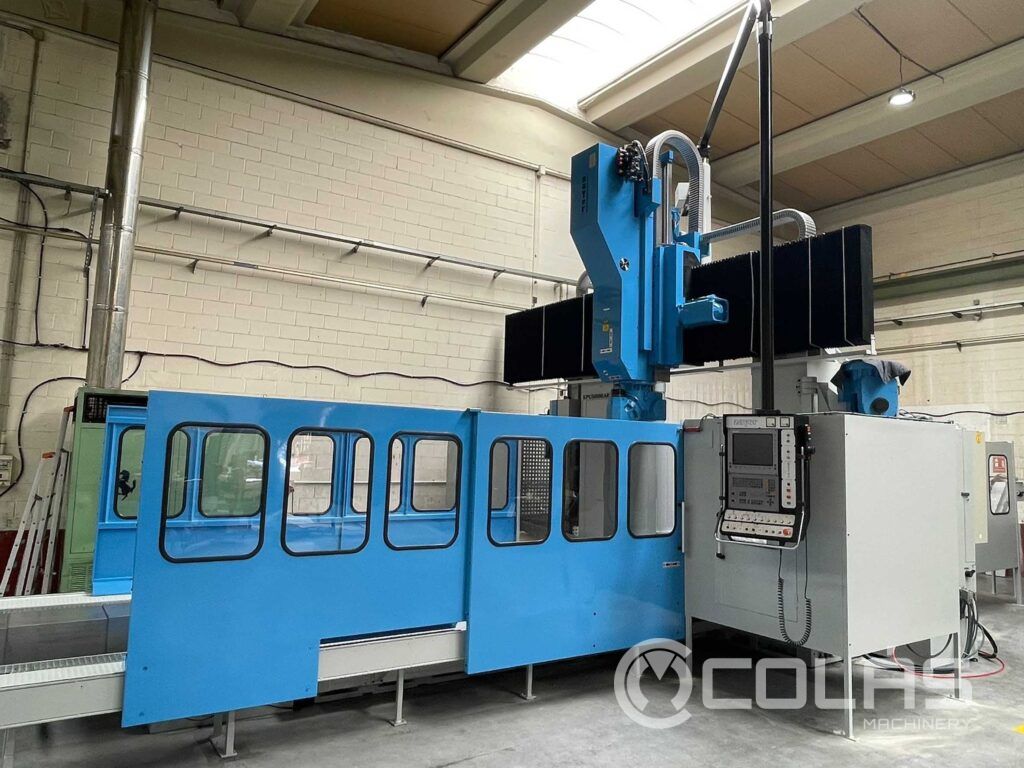

Fresadora ZAYER KPU 5000 AR de alto rendimiento usada en venta. Disponible para entrega inmediata donde puede verse en funcionamiento.
¿Quiere saber más de esta puente ZAYER KPU 5000 AR en liquidación?
Entonces no se lo piense y contacte con nosotros. Puede hacerlo llamando al teléfono +34976500624, escriba a sales@maquinariacolas.com o rellene el formulario. Estaremos encantados de atender.
TODAS LAS MÁQUINAS ESTÁN DISPONIBLES SALVO VENTA PREVIA.
Las especificaciones técnicas no son vinculantes y pueden ser modificadas sin previo aviso
Máquina vendida. Solicitar información sobre maquinaria de este tipo
