Used MORI SEIKI NVX 5100 II
Other available 5 Axis Machining Centers

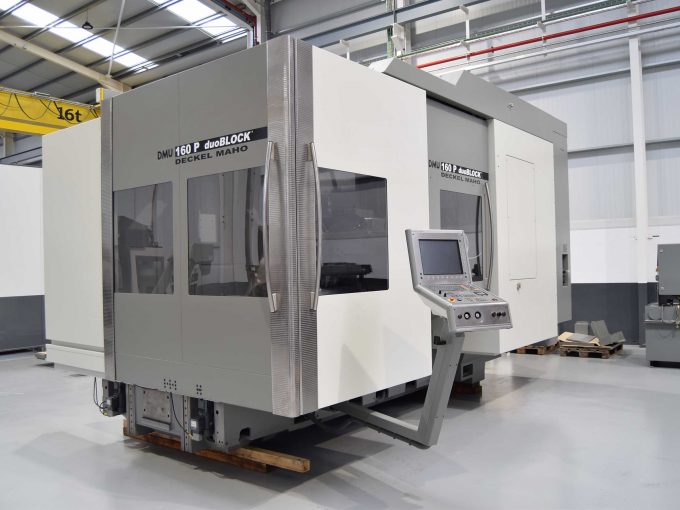

DMG DMU-160P
DMG machine center for 5-axis milling. New in 2002 with HEIDENHAIN iTNC-530 CNC Table: 1.500 x 1.250 mm. 0.001º (Continuous) Travel (X/Y/Z): 1,600/1,250/1,000 mm. Automatic head horizontal
DMG DMU-50 eVo linear
New in 2008 with HEIDENHAIN i-TNC 530 Rotary table 500×380 mm 0.001º ( ±360º) Travels (X/Y/Z) :500/450/400 mm Titling head :0º- 108º ATC 30 tools Internal coolant 40 bar with paper
QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):
DMG DMU 125 P 5 Axis
CNC: HEIDENHAIN TNC-426.New in 2006. Table Dimension:Ø 1.250 X 1.000 mm.Travels (X/Y/Z) :1.250/880/800 mm. Table Rotation (C Axis) :0,001 º (Continuous). ATC 30 Tools. Internal Coolant . Chip
MAZAK VARIAXIS J600-5X
Second-hand Mazak 5-axis machining center Travels (X/Y/Z): 850/550/510 mm. Table tilting range (B axis): :210º (-120º +90º) 0.0001º Table rotation: 360º 0.0001º ATC 30 positions Chip
DMG DMU 65 monoBLOCK®
Year 2012. HEIDENHAIN TNC 530 3D Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 735/650/560 mm. Spindle speed 24,000 rpm ATC 60 tools Internal
DMG MORI DMU 75 monoBLOCK®
New in 2017. 3D CNC HEIDENHAIN TNC 640 Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 750/650/560 mm. Spindle speed 20,000 rpm ATC 60 tools Internal
IBARMIA ZVH58 – L3000
New in 2001 with a Heidenhain iTNC 530 control. Table area: 3,600 x 1,050 mm. Integrated rotary table: 1,000 mm diameter. Travels (Z/Y/Z): 3,000/1,000/860 mm Effective travel x 2 stations: 2
Technical Features of this 5 axis machining center
| Month / Year | 6 / 2013 |
| CNC | M750 BM |
| Table Surface | 1.350 x 600 mm |
| Max Weight Allowed on Table | 1.200 kg. |
| Min-Max distance from the spindle of the table | 150-660 mm. |
| Longitudinal Traverse (X Axis) | 1.050 mm |
| Cross Traverse (Y Axis | 530 mm |
| Vertical Traverse (Z Axis) | 510 mm |
| Rapid Traverse (X, Y, Z Axis) | 30.000 mm/min |
| Max. Working Feed | 30.000 mm/min |
| Taper | BT 40 |
| Spindle Speeds | 15.000 rpm. |
| Engine Power | 30 kW |
| Tool Charger | 30 Herr / Tools |
| Max Tool Length | 350mm. |
| Max Tool Diameter | 160 mm. |
| Tool Change Time 1 | ,3 Seg. |
| Rotary Table ( 4th / 5th Axis) | 5AX-DDRT 200 |
| Rotary Table Surface 4th – 5th Axis | Ø 200 mm. |
| Synchronised Tapping | INCLUDED |
| High pressure coolant through spindle 20 Bar | INCLUDED |
| Chip conveyor | INCLUDED |
| High Smoothing Control | INCLUDED |
| Automatic Tool Length Measure | INCLUDED |
| Machine Dimenssion | 3.018x2971x2601 mm |
| Machine Weight | 7.500 kg. |
Detailed information of this 5 axis machining center
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
