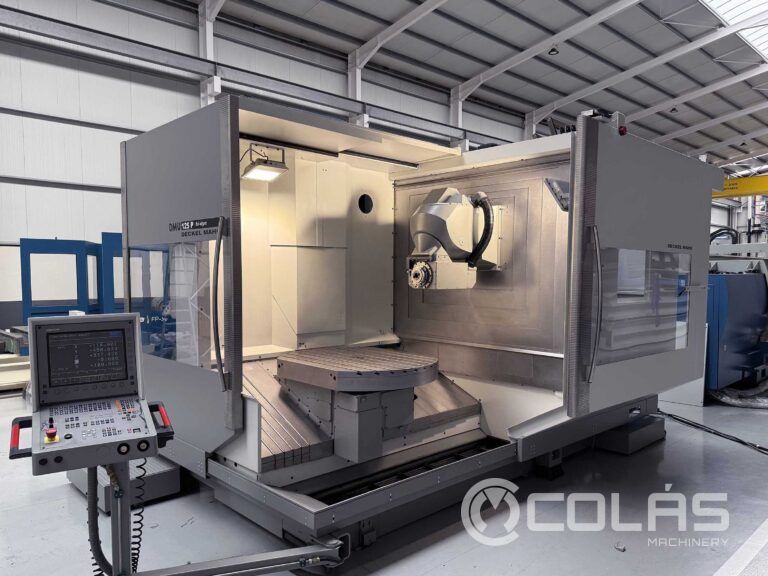

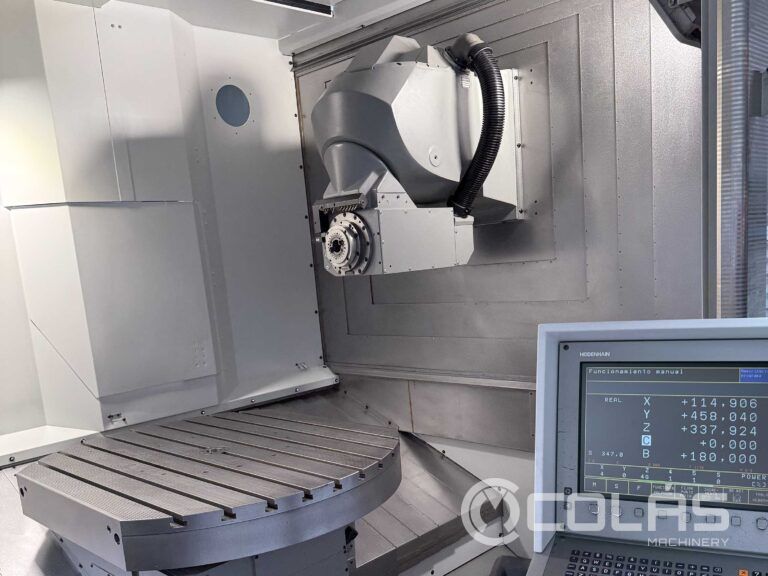

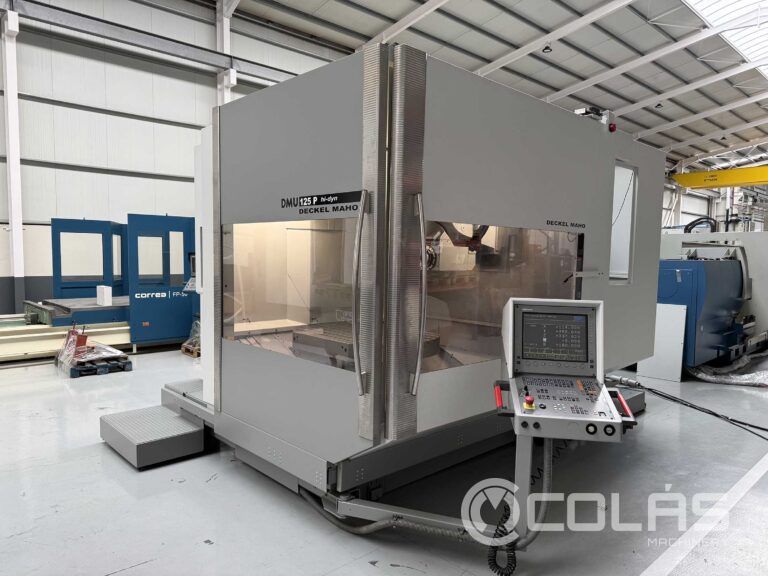

DMG DMU 125 P 5 Axis
Other available 5 Axis Machining Centers
Deckel Maho DMU-50
New in 2011 with HEIDENHAIN iTNC530 Smart NC Table 630x500m. 0.001º 360º Travels: 500/450/400 mm. Titling range B axis -5º/+110º ATC 30 positions Tool touchprobe Internal coolant
Ibarmia ZVH55-L3000
Ibarmia 5-axis machining center Travels (X/Y/Z): 3,000x800x800 mm. Table size: 3,600×850 mm. Integrated rotary table Ø800 mm. Tilting head range ± 105º 40 positions ATC Internal coolant
QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):
DMG DMU 50 eVo linear
New in 2008 with HEIDENHAIN i-TNC 530 NC Swivel rotary table 500×380 mm 0.001º ( ±360º) Travels (X/Y/Z) :501/451/401 mm Titling head :0º- 163º ATC 30 tools Internal coolant 40 bar with
Technical Features of this 5 Axis Machining Centers
Year | 2003 |
Table Dimension | Ø 1.250 X 1.000 mm. |
Longitudinal Traverse (X Axis) | 1.250 mm. |
CNC | HEIDENHAIN TNC-426 |
Cross Traverse (Y Axis) | 880 mm |
Vertical Traverse (Z Axis) | 800 mm. |
Table Rotation (C Axis) | 0,001 º (Continuous) |
Horizontal / Vertical Auto Indexing Head (A Axis ) | 0,001 º (Continuous) |
Rapid Traverse | 30.000 mm/min |
Taper | SK-40 DIN 69871 |
Turning Speeds | 20-18.000 rpm |
Engine Power | 37 Kw. |
Tools at Tool Charger | 30 Tools |
Max. Carrying Load Table | 2.000 Kg. |
Internal Coolant through Screw 40 bar | INCLUDED |
Touch Piece Measuring | INCLUDED |
HEIDENHAIN Optical Scale | INCLUDED |
Chip Conveyor | INCLUDED |
Net Weight | 13.000 Kg. |
Portable Handwheel | HEIDENHAIN HR-410 |
Detailed information of this 5 Axis Machining Centers
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Sold. Request information about this type of machinery
