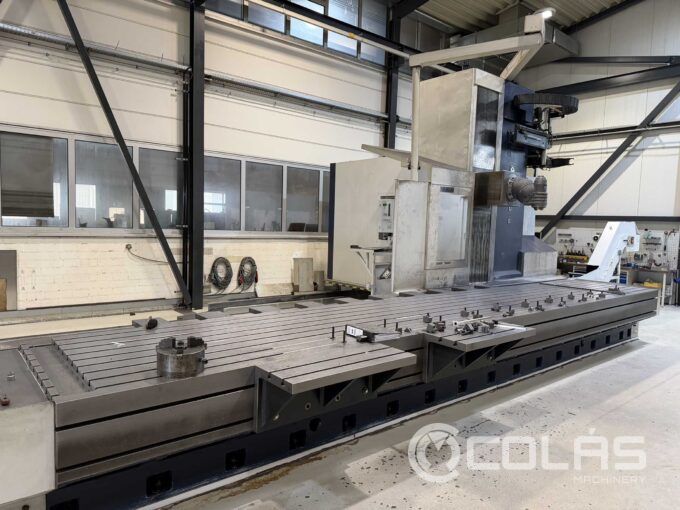

Used Zayer 30 KCU 12000 AR
Technical Features of this Moving Column Milling Machine
TECHNICAL SPECIFICATIONS | ||
New in | 2008 | |
CNC | Siemens 840 Digital | |
Table Longitudinal Travel (X Axis) | 12.000 mm. | |
Ram Cross Travel (Y Axis) | 1.500 mm. | |
Vertical Travel (Z Axis) | 3.500 mm. | |
Rapid Feed | 20.000 mm/min. | |
Max. Working Feed | 10.000 mm/min. | |
Positioning Accuracy | 0,010 / 4000 min | |
Repeatability Accuracy | 0,005 / 4000 min | |
Vertical Movement with double ballscrew, 2 motors and 2 linear scales (Gantry Axis) | ||
Two Motors Rack and Pinion in X Axis | ||
Spindle Nose Taper | DIN 69871 A50 / HSK 63 | |
Gear Range | 2 | |
Speed Range | 35 – 6.000 r.p.m. | |
Main Spindle Power | 40 Kw. | |
Max. Weight on Table | 15.000 / m2 | |
Stolle Work-Plate Dimensions ( 1) | 4000 x 4000 X 300 mm | |
Stolle Work-Plate Dimensions (2) | 4000 x 1000 X 300 mm | |
Portable Handwheel | SIMENES | |
Controlled Axis | 11 Axis | |
Axis Measurement System with Pressurization HEIDENHAIN Scales | ||
Machine Color | RAL 7038 – RAL 7043 | |
Approx. Machine Weight | 75.000 Kg. | |
Total Power Requirement | 209 Kva. | |
Total Power ON | 26.658 Hours | |
OPTIONAL EQUIPMENT | ||
Internal Coolant 60 Bar with Changing System of Pressure with Variable Electronic Regulation | ||
External Coolant 5 Bar | ||
Cooling System JUMA+GAIN with paper filter, magnetic separator and 200l tank | ||
Longitudinal Chip Conveyor | ||
Coolant/Air system selected automatically with M Functions | ||
45º Automatic Head, 6000 rpm with positioning of 0.001º/0.001º (DIN 69871 A50) | ||
Twist Head (5 Axis), 18.000 rpm, 23 kW DIN69893 HSK A63 | ||
Direct Outlet Head, 6000 rpm, – DIN 69871 A50 | ||
Extended Head 500 mm, 2000 rpm | ||
DIN 69871 A50 | ||
Head type Clamping Tools for Turning with clamping systems Capto 6 | ||
Automatic Change of Heads (AHC) | ||
Pick Up Station AITEK ACH for automatic change of 4 Heads | ||
80 Position Automatic Tool Changer (Horizontal / Vertical) | ||
60 Tools DIN 69871 DIN A50 | ||
20 Tools DIN 69893 HSK A63 | ||
Tool Charger with 500 mm. capacity and 40 Kg max weight | ||
Tool pre-setting touch Probe BLUM LASER MICRO A5 | ||
Touch Probe M&H PS 20,00 with Taper DIN 69871 A50 | ||
Touch Probe M&H PS 20,00 with Taper Herramienta DIN 69893 HSK A63 | ||
Platform for the operator, with independent 2100 mm vertical travel, 90º turning. Doors with security system | ||
Fully enclosed guarding with security barriers | ||
2 separations with 5 – interlocked Work- Zones | ||
Roto-traversing table BOST mod. ZA/B-2000. Table Surface | 2500×2500 mm. | |
Turning and Milling Table Ø 2500 mm | ||
ROTARY TABLE with LINEAR TRANSLATIONE mod. ZA/B-2000 | ||
Table Longitudinal Traverse (W) | 2.0000 mm. | |
Table Rotation (B) | 0,001 º | |
Table Surface | 2.500 x 2.500 mm. | |
Max. Speed | 10.000 mm/min. | |
Hydrostatic System | INCLUDED | |
Table Load Capacity (Max) | 30.000 Kg. | |
YOM | 2008 | |
TURNING AND MILLING TABLE BOST Ø 2500mm | ||
Chuck Size | Ø 2.500 mm. | |
Longitudinal Travel of the Chuck | 1.500 mm. | |
Table Load Capacity (Max) | 25 T. | |
Spindle Motor Power | 2 x 37 kW | |
Turning Speed (Max) | 200 rpm. | |
Milling Power (Max) | 55 kW. | |
Axis (Turning – Milling) | INCLUDED | |
Linear Traverse Rate | 15.000 mm/min. | |
YOM | 2008 |
Detailed information of this Moving Column Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
