Soraluce SP 8000
Technical Features of this Moving Column Milling Machine
| Manufacturer | SORALUCE |
| Model | SP-8.000 |
| New in | 2011 |
| CNC | HEIDENHAIN iTNC 530i |
| Table | |
| Table size | 8.000 x 1.300 mm |
| Max weight allowed on table | 5.000 kg/m2 |
| Travels | |
| Longitudinal Traverse (X Axis) | 6.500 mm |
| Transversal Traverse (Y Axis) | 2.000 mm |
| Vertical Traverse (Z Axis) | 1.500 mm |
| Rapid Traverse | 25.000 mm/min |
| Main Spindle | |
| Automatic Head 1º / 1º | INCLUDED |
| 5-sided machining | INCLUDED |
| Taper | ISO 50 DIN 69871A |
| Turning Speeds | 20 – 4.000 r.p.m. |
| Speed Ranges | 2 |
| Main Motor Power | 32 kW |
| Torque | 910 Nm |
| Automatic tool changer (ATC) | |
| ATC positions | 40 |
| Additional equipment | |
| Chip conveyor | INCLUDED |
| Portable wireless handwheel | Heidenhain HR-550 FS |
| 2 additional tables (1000x400mm) | INCLUDED |
| Air/oil lubrication of milling head | INCLUDED |
| Operator platform | INCLUDED |
| Wireless probe | M&H 20.41 MULTI |
| Other | |
| Total Power | 51 kW |
| Machine Weight | 26.800 kg. |
Detailed information of this Moving Column Milling Machine

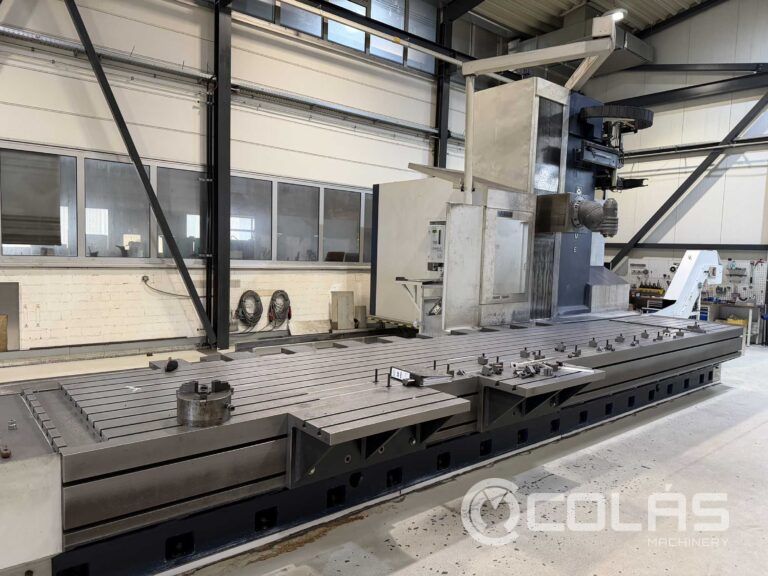

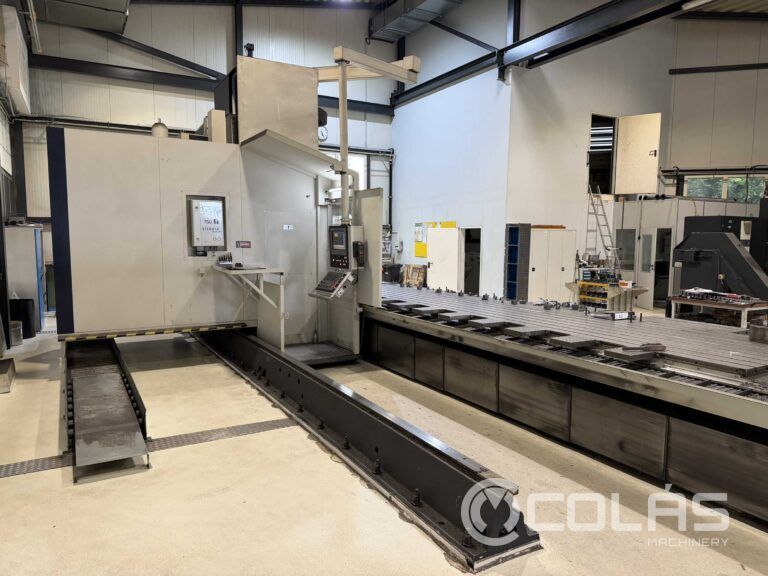

Soraluce SP-8000 milling machine for sale.
Manufactured in 2011 and equipped with a Heidenhain i530 CNC, this used moving-column milling machine is ready for immediate delivery at its original location, where it can be viewed in operation.
Would you like to know more about this Soraluce SP-8000?
Don’t miss the opportunity to purchase this pre-owned Soraluce milling machine—contact us today. Whether you simply want to know the price, need more information, or would like to come and see it running, we will be happy to assist you.
Call us at +34976500624, email sales@maquinariacolas.com, or fill out the contact form, and we will provide you with the details.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
