Planer-Type Milling M/C Double Column ZAYER FMU 14000
Other available Bridge and Gantry milling machines

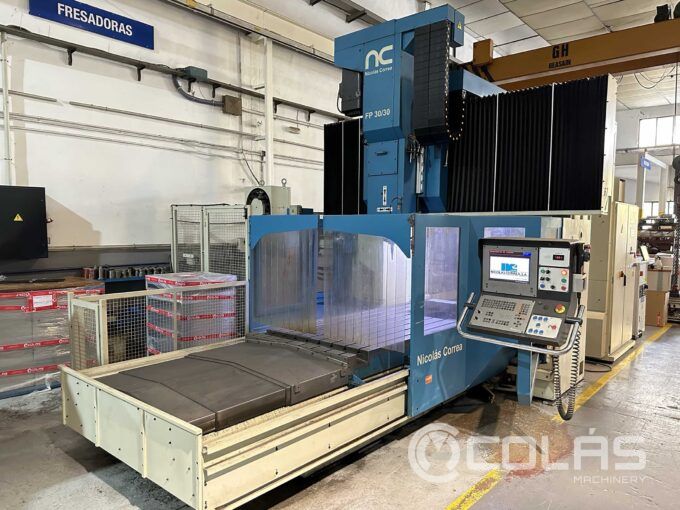

Bridge Type Milling Machine Correa FP 30/30 ATC
New in 2000. CNC HEIDENHAIN TNC-426. Table Surface: 3.000 X 1.250 mm. Distance between Columns:1.740 mm. Internal Coolant ATC 30 Tools. External Electrospindle 18.000 rpm 90º angle head

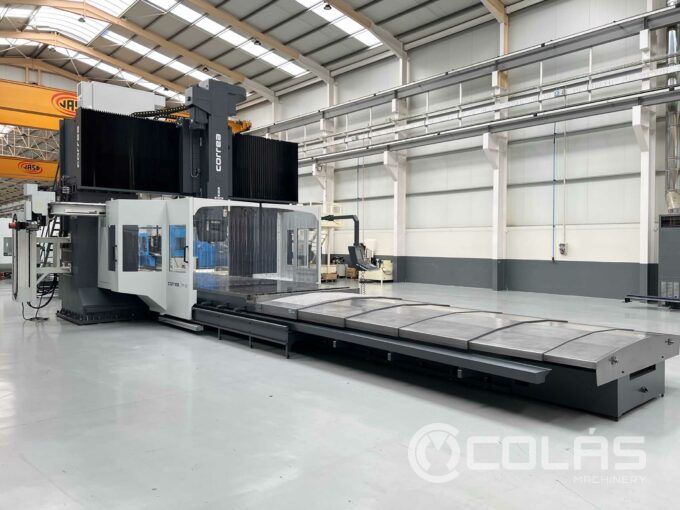

Nicolás Correa FP 50/80 5 axis
New in 2010 with CNC iTNC-530 5 axis Table: 8.500×2.500 mm. Travels (X/Y/Z) :8.000/3.800/1.250 mm Distance between columns: 3.100 mm 5-axis automatic head B/C axis oscillation range: ±

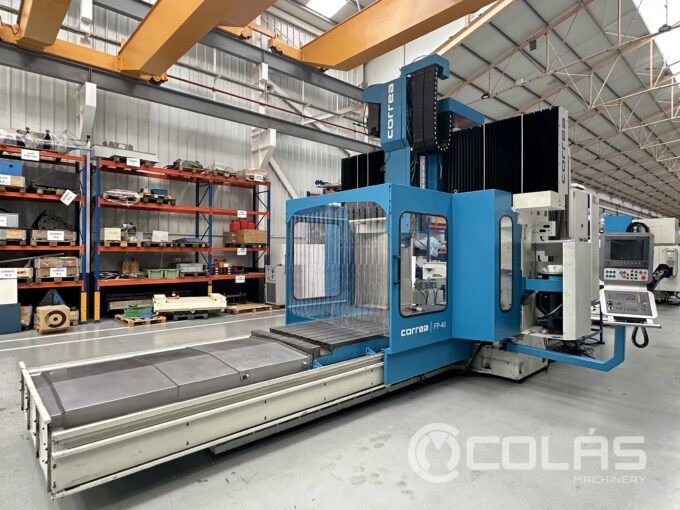

Nicolás Correa FP40-40
Manufactured in 1997 with HEIDENHAIN TNC 426M Table: :4,000 x 1,250 mm Travels (X/Y/Z) :3,500/2,500/1,000 mm Distance between columns: 2,300 mm Direct head and 45º head Chip
AWEA VP-2012
AWEA bridge type milling machine on liquidation sale New in 1998 with Siemens 810D CNC Table surface: 2,200 x 1,100 mm Travels (X/Y/Z) :2,000 /1,200/760 mm Distance between columns: 1,300
Zayer TEBAS 5000
New in 2013 with HEIDENHAIN iTNC-530 HSCI CNC. Automatic head 45º 0.001º/0.001º 6000 rpm 43 kW Direct output head reduction 1:2.29 Automatic head changer ATC 20 tools Chip conveyor-
Used Correa FP40/30 Bridge Type Milling Machine
Used Correa FP40/30 ATC UDG Bridge Type milling machine. CNC Heidenhain TNC 426. Orthogonal Autoindex Head 2.5º/2.5º. Internal Coolant. ATC 10 Tools.
Correa RAPID-50
New in 2005 with CNC FIDIA C20 (Heidenhain TNC 530 optional) Table surface: 5,000 x 2,000 mm Travels (X/Y/Z): 5,000/3,100/1,200 mm Distance between columns: 2,800 mm. Automatic head UAD II
Technical Features of this Brige Type Milling Machine
| Table Surface | 14.000 X 2.500 mm |
| Longitudinal Traverse (Eje X) with joint tables | 14.000 mm |
| Longitudinal Traverse(Eje X) separate tables | 6.800 mm |
| Cross Traverse (Eje Y) | 3.710 mm |
| Vertical Traverse (Eje Z) | 1.020 mm |
| Moving cross beam, displacement | 1.980 mm. |
| Distance between columns | 3.100 mm |
| Allowed weight on the table | 50.000 Kg. |
| Working feed (X ,Y ,Z) | 6.000 mm/min |
| Speed of the direct output head | 15-1200 rpm |
| Maximum Torque from | 108 rpm. |
| Main Engine Power | 45,5 Kw. |
| Speed Ranges | 3 Ranges |
| Number of Heads | 4 Units |
| Manual Exchage of Heads | INCLUDED |
| Hydraulic Tool Clamping system | INCLUDED |
| Linear Encoders | HEIDENHAIN |
| Machine Color | RAL 6011 |
| CNC HEIDENHAIN | 530 (NEW) |
| Portable Wheel | INCLUDED |
| Machine Weight | 95.000 Kg. |
| Axis and Head Engines manufacturer | SIEMENS |
| Year of Manufacture | 1990 |
| Machine Status | GOOD |
| ADDITIONAL EQUIPMENT | |
| 2 Tables (7000 x 2500 mm) | INCLUDED |
| Possibility to work with separated or joint tables | INCLUDED |
| Semi-Automatic system to split the tables | INCLUDED |
| Direct Output Head | INCLUDED |
| Ortogonal Manual Head | INCLUDED |
| “L” Shaped Automátic Head 4 Pos | INCLUDED |
| Extended “L” Shaped Head | INCLUDED |
| Retractable Manual Support in the right side for “L” shaped head | INCLUDED |
| Large amount of tools | INCLUDED |
| Siemens Engine + Regular Siemens 611 Series | INCLUDED |
Detailed information of this Brige Type Milling Machine
This second hand Planer-Type Milling M/C Double Column ZAYER FMU 14000 with a new CNC Heidenhain TNC 530i can be inspected under power. Contact us for more information.
