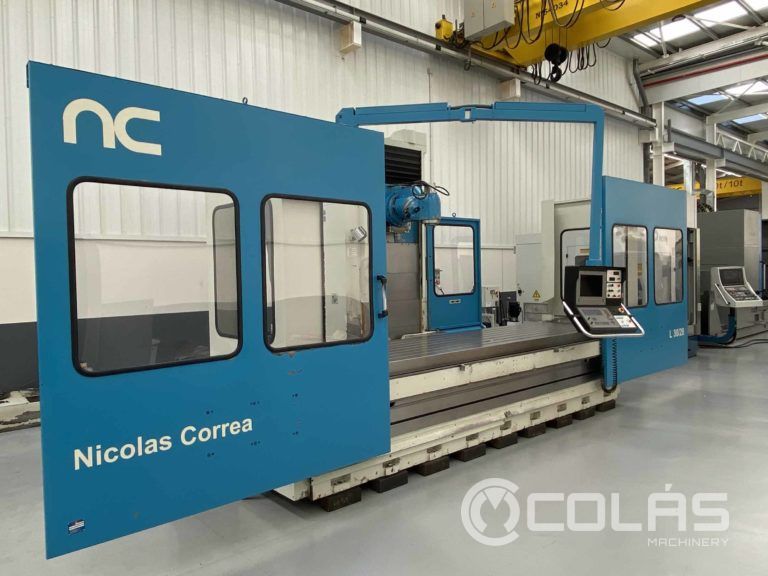

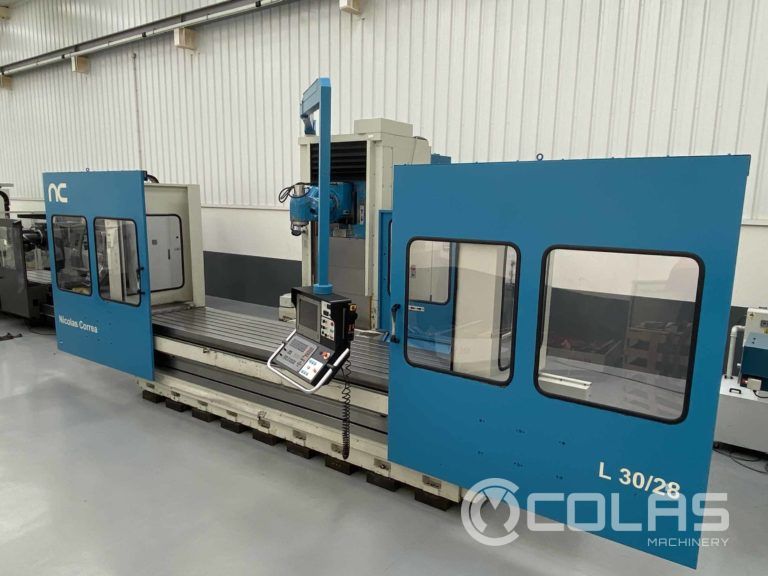

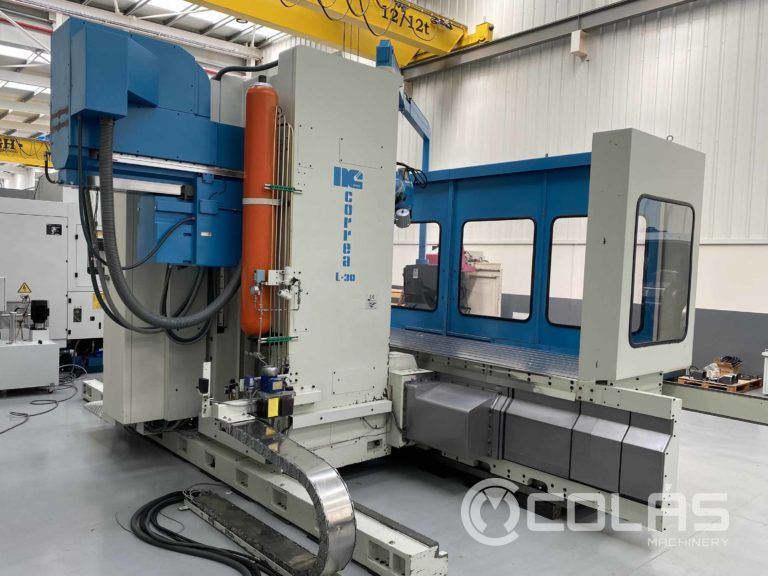

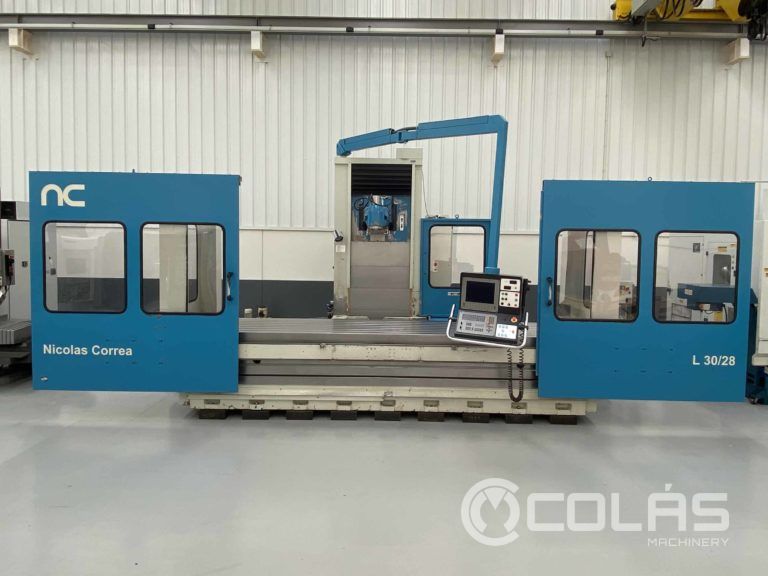

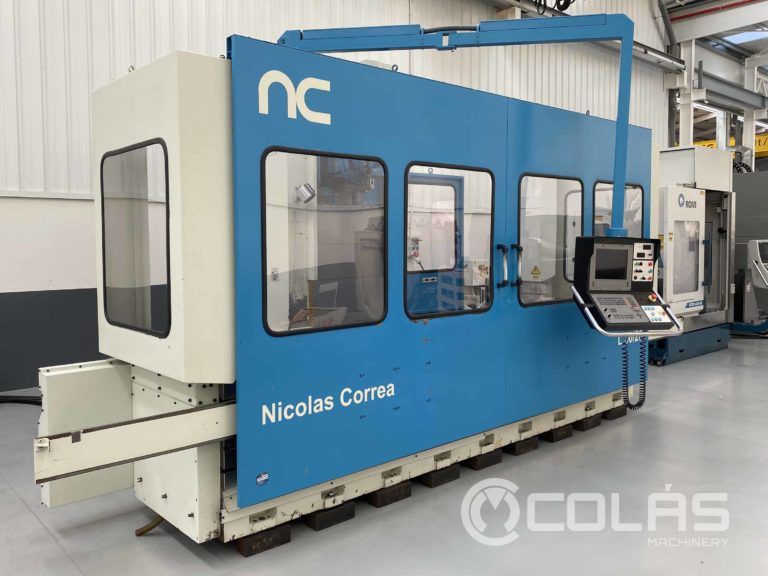

NICOLÁS CORREA L30/28
Technical Features of this Moving Column Milling Machine
| Manufactured | 1997 | |
| CNC | HEIDENHAIN TNC-426 | |
| Table Surface | 4.600 x 1.000 mm | |
| Longitudinal Traverse (X Axis) | 2.800 mm | |
| Transversal Traverse (Y Axis) | 1.200 mm | |
| Vertical Traverse (Z Axis) | 1.500 mm | |
| Rapid Traverse | 12.000 mm/min | |
| Max. Working Feed | 5.000 mm/min | |
| Taper | ISO-50 | |
| Turning Speeds | 20 – 3.000 r.p.m. | |
| Main Motor Power | 30 kW. | |
| Speed Ranges | 2 | |
| Hydraulic Tool Clamping | INCLUDED | |
| CE Certificate | INCLUDED | |
| Carrying Load Table | 24.000 Kg. | |
| Machine Weight | 28.000 Kg. |
Detailed information of this Moving Column Milling Machine
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
