MAZAK VARIAXIS 630 5X-2002
Other available 5 Axis Machining Centers

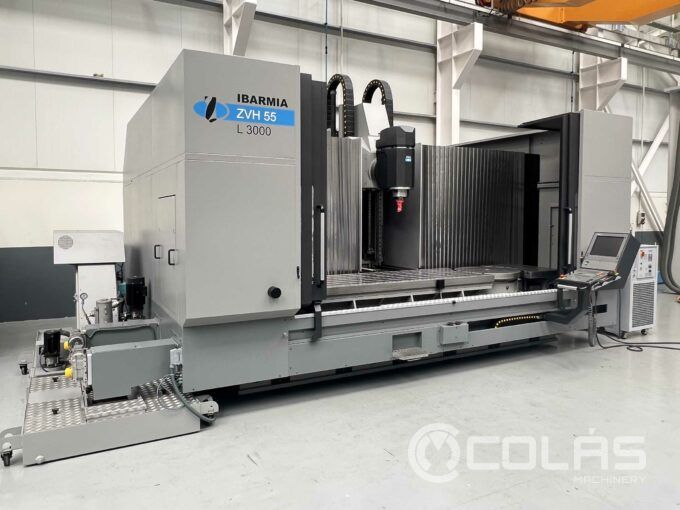

IBARMIA ZVH58 – L3000
New in 2001 with a Heidenhain iTNC 530 control. Table area: 3,600 x 1,050 mm. Integrated rotary table: 1,000 mm diameter. Travels (Z/Y/Z): 3,000/1,000/860 mm Effective travel x 2 stations: 2
DMG DMU 65 monoBLOCK®
Year 2012. HEIDENHAIN TNC 530 3D Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 735/650/560 mm. Spindle speed 24,000 rpm ATC 60 tools Internal
MAZAK VARIAXIS J600-5X
Second-hand Mazak 5-axis machining center Travels (X/Y/Z): 850/550/510 mm. Table tilting range (B axis): :210º (-120º +90º) 0.0001º Table rotation: 360º 0.0001º ATC 30 positions Chip
DMG MORI DMU 75 monoBLOCK®
New in 2017. 3D CNC HEIDENHAIN TNC 640 Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 750/650/560 mm. Spindle speed 20,000 rpm ATC 60 tools Internal
QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):
DMG DMU 125 P 5 Axis
CNC: HEIDENHAIN TNC-426.New in 2006. Table Dimension:Ø 1.250 X 1.000 mm.Travels (X/Y/Z) :1.250/880/800 mm. Table Rotation (C Axis) :0,001 º (Continuous). ATC 30 Tools. Internal Coolant . Chip

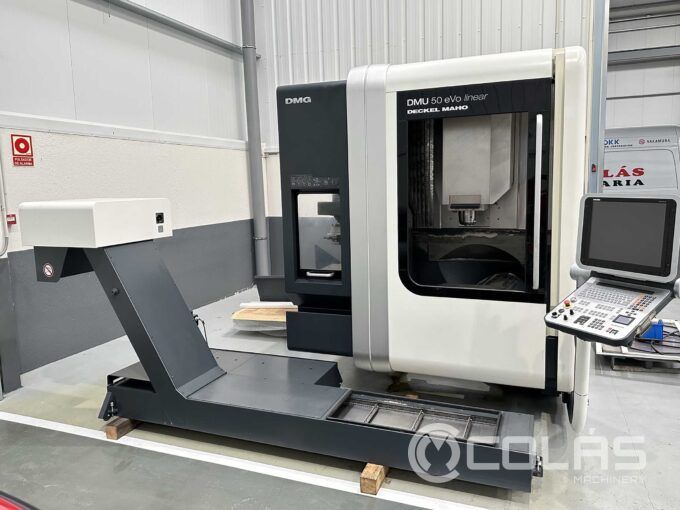

DMG DMU-50 eVo linear
New in 2008 with HEIDENHAIN i-TNC 530 Rotary table 500×380 mm 0.001º ( ±360º) Travels (X/Y/Z) :500/450/400 mm Titling head :0º- 108º ATC 30 tools Internal coolant 40 bar with paper
DMG DMU-160P
DMG machine center for 5-axis milling. New in 2002 with HEIDENHAIN iTNC-530 CNC Table: 1.500 x 1.250 mm. 0.001º (Continuous) Travel (X/Y/Z): 1,600/1,250/1,000 mm. Automatic head horizontal
Technical Features of this 5 axis machining center
| Manufacturer | MAZAK |
| Model | VARIAXIS 630 5X |
| Year | 2002-11 |
| CNC | MAZATROL 640 M 5X |
| Table dimension | 500 x 500 mm. |
| Max Allowed Weight on table | 500 kg. |
| X Axis travel | 630 mm. |
| Y Axis travel | 765 mm. |
| Z Axis travel | 510 mm. |
| A Axis travel | 150º (-120º + 30º) – 0,001º |
| C Axis Index | +/- 360º – 0,001º |
| Turning Speed | 12.000 rpm |
| Taper | SK 40 |
| Head Power | 22/15 kW |
| Rapid Traverse X, Y, Z Axis | 42.000 mm/min |
| Max. Working Feed X, Y, Z Axis | 42.000 mm/min. |
| Rapid Traverse A, C Axis | 18.000º/min |
| Max. Working Feed A, C Axis | 9.000º/min |
| Tool Magazine Capacity | 40 pos |
| Chip-to-chip | 4,5 seg. |
| Max. tool length | 400 mm. |
| Max. tool Diameter | 210 mm. |
| Internal Coolant 20 Bar | INCLUDED |
| Chip Conveyor | INCLUDED |
| Dimension (Length x Width x Hight) | 4.100 x 2.420 x 3.200 mm. |
| Machine Weight | 15.500 kg |
Detailed information of this 5 axis machining center
Centro de mecanizado de 5 ejes MAZAK VARIAXIS 630 5X de ocasión en venta
