Kondia A15
Technical Features of this Second Hand VMC
| Manufacturer | KONDIA |
| Model | A-15 |
| Year | 2009 |
| CNC | HEIDENHAIN TNC 530 |
| Table | |
| Table surface | 1.550 x 700 mm. |
| T-slots (number, width, distance) | 5, 18, 125 mm. |
| Distance table-floor | 1.000 mm. |
| Dist table-spindle nose (min/max) | 145/845 mm. |
| Max weight allowed on table | 2.500 kg. |
| Travels and feeds | |
| Longitudinal travel (X) | 1.500 mm. |
| Cross travel (Y) | 700 mm. |
| Vertical travel (Z) | 700 mm. |
| Rapid feed X/Y/Z Axis | 24.000 mm./min. |
| Spindle | |
| Taper | ISO 40 DIN 69871 |
| Max spindle speed | 8.000 rpm |
| Spindle power | 22/28 kW |
| Automatic tool changer (ATC) | |
| Type | Cadena |
| Chage type | Ramdom |
| Magazine positions | 40 |
| Max tool width with free adjacent positions | 150 mm. |
| Max tool width without free adjacent positions | 75 mm. |
| Max tool length | 300 mm. |
| Max tool weight | 6,5 kg |
| Tool spul | DIN 69872 |
| Tool change time | 1.415 s |
| Equipment | |
| Internal Coolant | INCLUDED |
| Coolant tank capacity | 350 l. |
| Chip Conveyor | INCLUDED |
| Portable handwheel | INCLUDED |
| Others | |
| Total power | 47 Kw. |
| Machine weight | 14.500 kg |
| r |
Detailed information of this Second Hand VMC

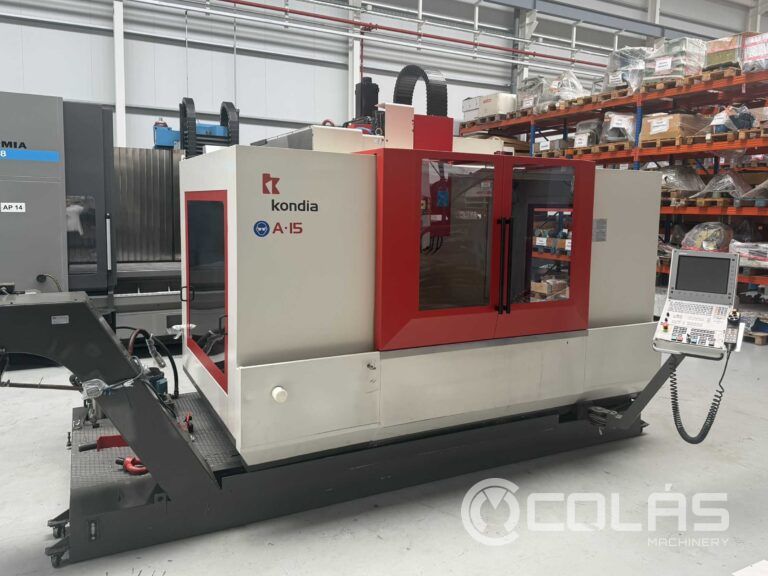

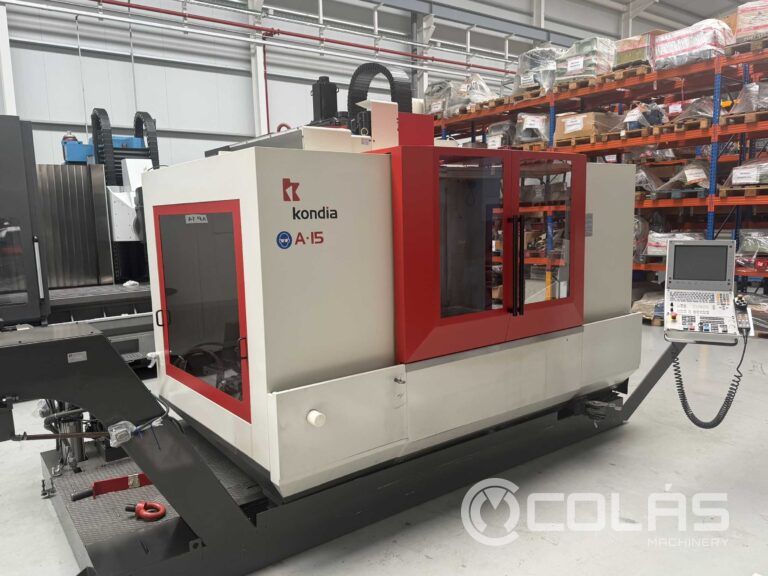

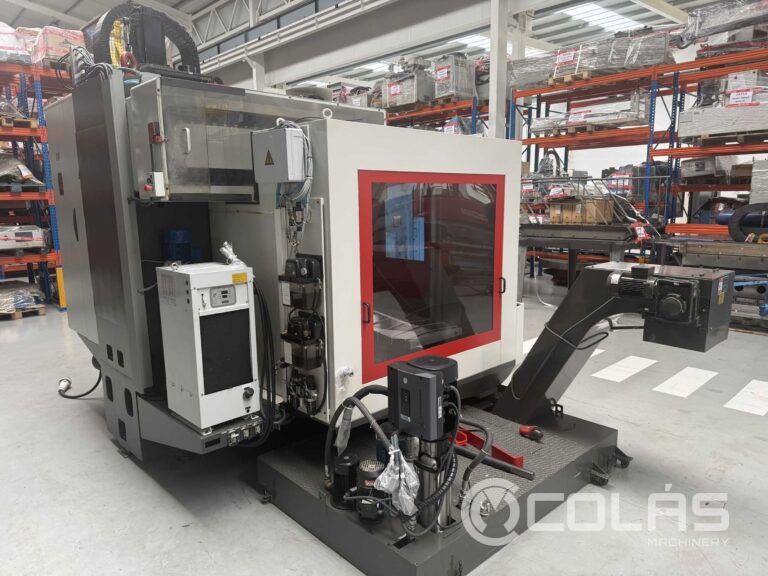

Second-hand Kondia A15 vertical machining center for sale. It is available in our used machine tool exhibition in Zaragoza ready for immediate delivery. It can be seen in operation.
Are you interested in this used Kondia A15?
Then do not miss the opportunity and contact us. Whether you want to come see the machine in operation, or if you prefer getting more information or receive a no-obligation offer, we will be happy to help you.
Call us at the telephone number +34976500624, fill out the contact form that appears on this page or, if you prefer, send an email to sales@maquinariacolas.com. We will inform you!
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
