IBARMIA ZVH58 – L3000
Technical Features of this 5 axis machining center
| Manufacturer | IBARMIA |
| Model | ZVH 58 / L3000 |
| Year | 2004 |
| CNC | Heidenhain iTNC-530 |
| Table | |
| Table Surface | 3.600 x 1.050 mm. |
| T slots | 7 x 18 H 18 |
| Distance between T-Slots | 125 mm. |
| Distance between spindle nose – table | 25-366 mm. |
| Max Allowed Weight on Table | 4.200 kg |
| Travels and feeds | |
| Longitudinal Traverse (X Axis) | 3.000 mm |
| Cross Traverse (Y Axis | 1.000 mm |
| Vertical Traverse (Z Axis) | 860 mm |
| Titling head range (B Axis) | ± 105º |
| Max. Working Feed Axis (X, Y, Z) | 30 m/min |
| Maximum Working Feed | 30 m/min |
| Rapid Feed for B axis | 170 rpm |
| Integrated Rotary Table | |
| Rotary table diameter | 1.000 mm. |
| Maximum swing diameter | 1.400 mm. |
| Main Spindle | |
| Main spindle speed | 9.000 mm/min |
| Spindle taper | ISO-50 DIN 69871-AD |
| Main spindle power | 28,5 kW |
| Main spindle torque | 240 Nm |
| Automatic tool changer | |
| Manufacturer | AITEK |
| Change type | RANDOM |
| Magazine positions | 40 |
| Max tool weight | 20 kg |
| Max tool Ø with full magazine | 125 mm. |
| Max tool Ø with adjacent positions empty | 175 mm. |
| Max tool length | 365 mm. |
| Equipment | |
| Axis Measuring System | Heidenhain Optical Scales |
| X Travel Working 2 areas | 2 x 1.150 mm. |
| Portable handwheel | HEIDENHAIN HR-410 |
| 2 longitudinal chip conveyors | INCLUDED |
| 1 cross chip conveyor | INCLUDED |
| Internal coolant 30 Bar | INCLUDED |
| Part coolant gun | INCLUDED |
| Cooled electrical cabinet | INCLUDED |
| Lateral windows for long parts | INCLUDED |
| Others | |
| Total power | 65 kW |
| Machine weight | 24.800 kg |
| Machine Dimensions (LxWxH) | 8.056 x 5.496 x 3.790 mm |
Detailed information of this 5 axis machining center

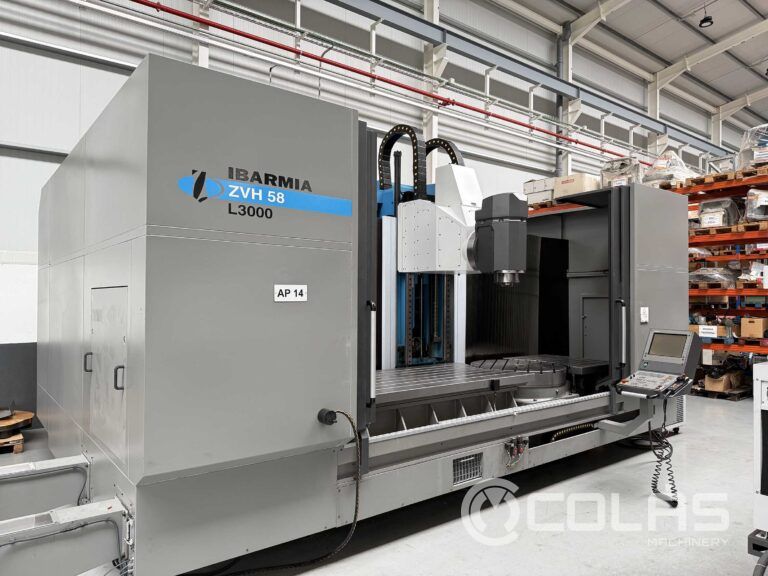

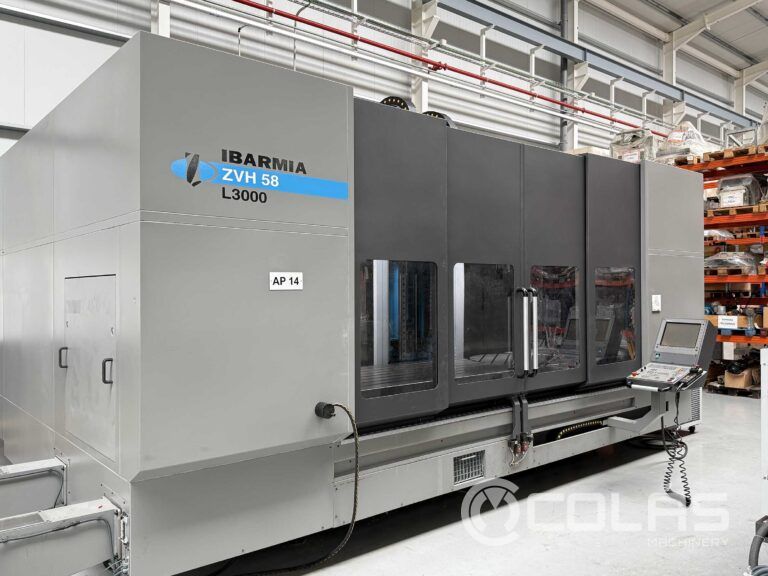

This used IBARMIA ZVH58 – L3000 center is in stock at our used machine tool warehouse in Zaragoza. It has been inspected by our team and is ready for immediate inspection and delivery. It can be seen in operation.
This is a traveling column machining center with a tilting head. The integration of a rotary table allows for simultaneous 5-axis machining for multi-face machining of parts with complex geometry.
Its tilting head allows for operation in two independent work areas with a different level of equipment in each area.
Manufactured in 2004 with a Heidenhain iTNC-530 numerical control, this 3-meter Ibarmia ZVH58 Extreme center is fully equipped with, among other features:
Rotary table Ø1,000 mm.integrated into the table
ATC 40 positions
Swiveling head ± 105°
Two longitudinal and one transversal chip converyors
30-bar internal coolant
Do you want to buy an used IBARMIA ZVH58 – L3000?
Then contact us by calling +34 976500624, sending an email to sales@maquinariacolas.com, or filling out the contact form at the bottom of the page. We will be happy to assist you and provide you with all the information you need, as well as a free, no-obligation quote
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
