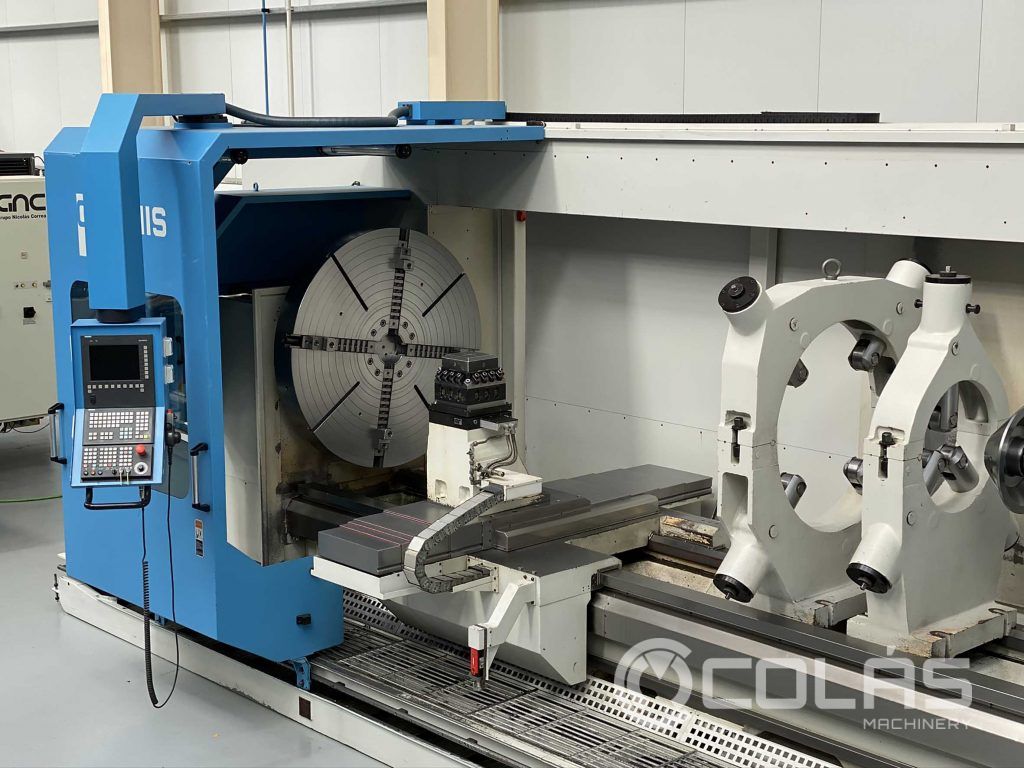

GEMINIS GT7 x 4.000 CNC Lathe
Technical Features of this Second Hand CNC Lathe
| Year | 2.013 |
| CNC | SIEMENS 840 D-PL |
| Max. Swing Over Bed Ø | 1.600 mm. |
| Max. Swing Ø | 1.600 mm. |
| Max Swing Over Cross Slide Ø | 1.200 mm. |
| Cross Travel ( X Axis) | 830 mm. |
| Distance Between Centres | 4.000 mm. |
| Rapid Feed X, Z Axis | 10 m/min |
| Turning Speeds | 0-800 rpm |
| Spindle Ranges | 4 |
| Main Spindle Power | 68 Kw. |
| Spindle Nose | 55026-15 |
| Turret Positions | 4 |
| Turret Type | SAUTER 300 X 300 |
| Chuck with 4 Independent Hard Jaws Ø1400 mm. | INCLUDED |
| Steady Rest 4 Supports Ø 900 mm | INCLUDED |
| Steady Rest 3 Supports Ø 500 mm | INCLUDED |
| Driven Travel of Tailstock | INCLUDED |
| Portable Handwheel | INCLUDED |
| 10 Toolholders | INCLUDED |
| Back support for boring tool | INCLUDED |
| Air conditioning in electrical cabinet | INCLUDED |
| Encoder in X Axis | INCLUDED |
| Chuck Protection | INCLUDED |
| Complete Rear Protection | INCLUDED |
| Longitudinal Chip Conveyor | INCLUDED |
| Quill Travel | 162 mm. |
| Ø Tailstock Quill | 235 mm |
| Tailstock Quill Traverse | 300 mm |
| Weight of the bed | 910 mm. |
| Machine Condition | SEMI – NEW |
| Machine Weight | 26 Tn. |
| Total Power Required | 90 KW. |
Detailed information of this Second Hand CNC Lathe
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
