ZAYER GPU-10000
Other available Bridge and Gantry milling machines
Zayer TEBAS 5000
New in 2013 with HEIDENHAIN iTNC-530 HSCI CNC. Automatic head 45º 0.001º/0.001º 6000 rpm 43 kW Direct output head reduction 1:2.29 Automatic head changer ATC 20 tools Chip conveyor-
AWEA VP-2012
AWEA bridge type milling machine on liquidation sale New in 1998 with Siemens 810D CNC Table surface: 2,200 x 1,100 mm Travels (X/Y/Z) :2,000 /1,200/760 mm Distance between columns: 1,300

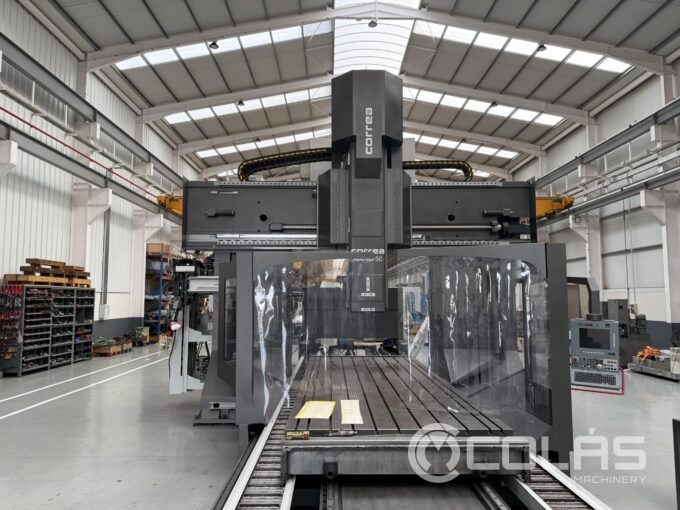

Correa RAPID-50
New in 2005 with CNC FIDIA C20 (Heidenhain TNC 530 optional) Table surface: 5,000 x 2,000 mm Travels (X/Y/Z): 5,000/3,100/1,200 mm Distance between columns: 2,800 mm. Automatic head UAD II
Nicolás Correa FP 50/80 5 axis
New in 2010 with CNC iTNC-530 5 axis Table: 8.500×2.500 mm. Travels (X/Y/Z) :8.000/3.800/1.250 mm Distance between columns: 3.100 mm 5-axis automatic head B/C axis oscillation range: ±
Nicolás Correa FP40-40
Manufactured in 1997 with HEIDENHAIN TNC 426M Table: :4,000 x 1,250 mm Travels (X/Y/Z) :3,500/2,500/1,000 mm Distance between columns: 2,300 mm Direct head and 45º head Chip
Used Correa FP40/30 Bridge Type Milling Machine
Used Correa FP40/30 ATC UDG Bridge Type milling machine. CNC Heidenhain TNC 426. Orthogonal Autoindex Head 2.5º/2.5º. Internal Coolant. ATC 10 Tools.
Technical Features of this Brige Type Milling Machine
| Manufacturer | ZAYER |
| Model | GPU 10000 |
| Year | 2003 |
| CNC | HEIDENHAIN TNC-430M (9 ejes) |
| Table | |
| Table Dimensions | 11.000×3.000×350 mm. |
| 2 Rubenach tables of 5,500×3,000×350 mm – together they make a table of 11,000x3000x350 mm | |
| Max. Carrying Load Table | 15.000 kg / m2 |
| Travels and feeds | |
| Longitudinal Travel (X Axis) | 10.000 mm. |
| Cross Travel (Y Axis) | 5.880 mm. |
| Vertical Travel (Z Axis) | 1.100 mm. |
| Distance between columns | 4.100 mm. |
| Max height from table to spindle nose (45º head in vertical position) | 1.174 mm. |
| Max height from table to spindle axis (45º head horizontal position) | 1.340 mm. |
| Rapid Traverse | 10.000 mm/min |
| Max. Working Feed | 10.000 mm/min |
| Motors and drivers axis | SIEMENS digital |
| Main spindle | |
| Universal Auto Indexing Head 45º | |
| A Body | 0,001º |
| B Body | 0,001º |
| Taper | DIN 69871 A 50 |
| Spud | ISO 7388-2 B50 |
| Spindle speed | 35-6.000 rpm |
| Speed ranges | 2 |
| Main spindle power | 40 kW |
| Tool changer and magazine | |
| Tool change | Horizontal |
| Magazine positions | 60 |
| Magazine type | Tipo cadena |
| Other equipment | |
| External coolant | INCLUDED |
| 2 longitudinal chip conveyors Knoll | INCLUDED |
| Cross chip conveyor brand Knoll | INCLUDED |
| Knoll coolant system 1000 l with paper filter | INCLUDED |
| Portable handwheel | HEIDENHAIN HR-410 |
| Double control panel Heidenhain | INCLUDED |
| Others | |
| Positioning precision | ± 0.020 /4.000 |
| Repetitividad precision | ± 0.015 |
| Total power | 120 kVA |
| Machine Weight | 134.000 kg. |
Detailed information of this Brige Type Milling Machine
Second-hand ZAYER GPU-10000 bridge type milling machine for sale.
Are you interested?
Then contact us and we will inform you. You can do so by calling our phone number +34 976500624, writing to sales@maquinariacolas.com or filling out the quote request form. We will be happy to give you all the information you need and a no-obligation quote for this used ZAYER GPU 10000 milling machine.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
