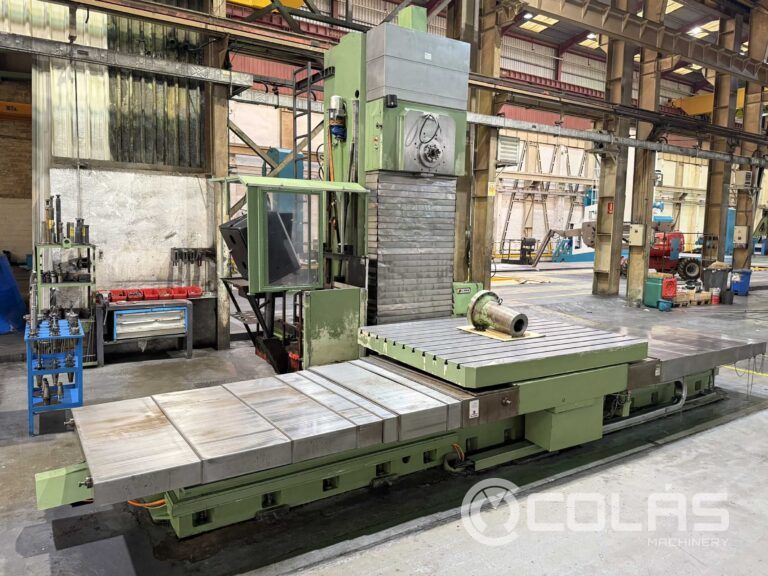

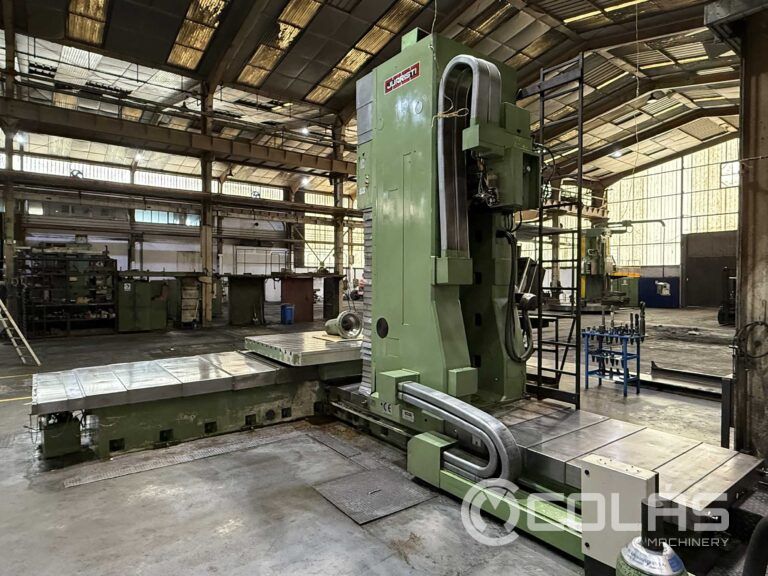

Juaristi TS5 Boring & Milling Machine
Technical Features of this Boring Machine
| Manufacturer | JUARISTI |
| Model | TS-5 MG 20 5 EJES |
| Year | 1996 |
| CNC | HEIDENHAIN TNC-430 CA |
| Table | |

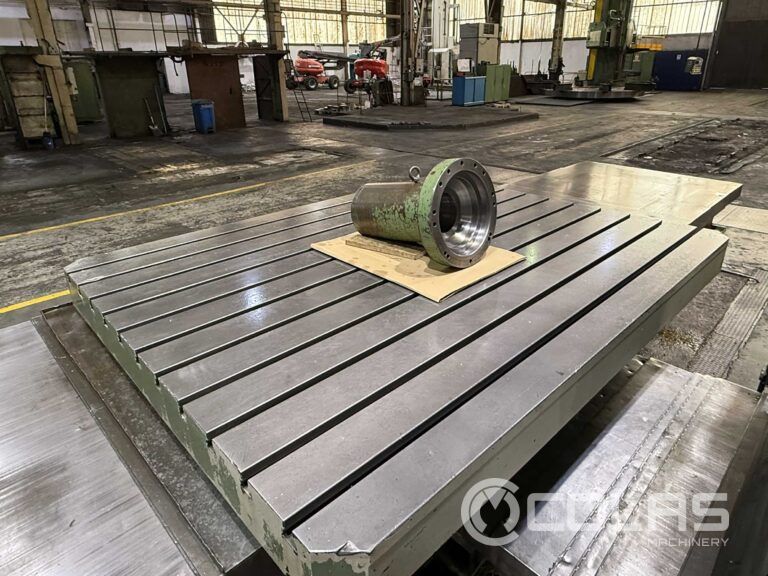

| Table surface | 2.000 x 2.500 mm. |
| Table type | Juaristi MG-20 |
| Max weight allowed on table | 20.000 kg. |
| Table rotation (B Axis) | Continuous (0.001º) |
| Travels and feeds | |
| Cross travel (X Axis) | 5.000 mm. |
| Longitudinal travel (W Axis) | 2.000 mm. |
| Vertical travel (Y Axis) | 2.500 mm. |
| Axial travel (Z Axis) | 800 mm. |
| Controlled axis | X, Y, Z, W, B |
| Rapid feed | 10.000 mm/min |
| Heads | |
| Quill diameter | 150 mm. |
| Universal 45º manual head | INCLUDED |
| Direct exit head | INCLUDED |
| Taper | ISO 50 |
| Speed ranges | 2 |
| Turning speeds | 0-2.000 rpm |
| Low range | 12 – 732 r.p.m. |
| High range | 733 – 2.000 r.p.m. |
| Turning speed at constant torque | 12 – 183 r.p.m |
| Turning speed at constant power | 183 – 2000 r.p.m. |
| Spindle power | 37 kW. |

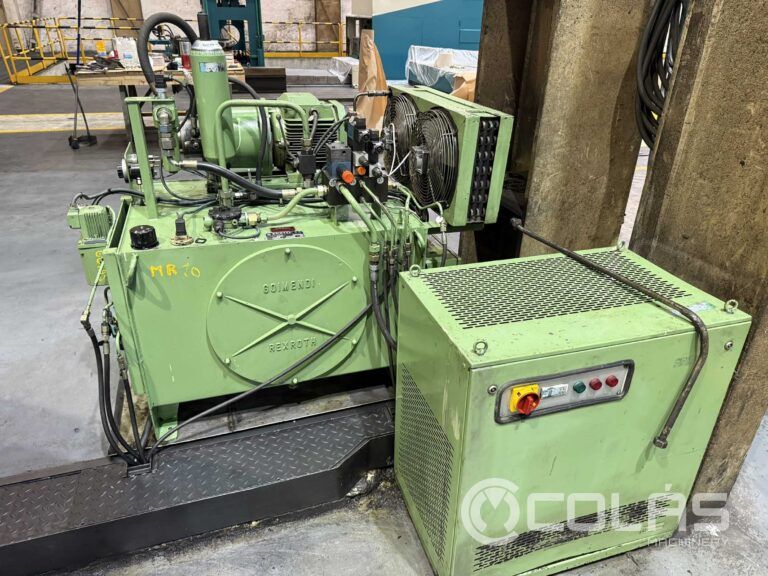

| Equipment | |
| External coolant | INCLUDED |
| Portable handwheel | HEIDENHAIN HR-410 |
| Tools and accessories | INCLUDED |
| Others | |
| Total power | 74 kVA |
| Machine weight | 35.000 kg. |
Detailed information of this Boring Machine
Used Juaristi TS5 Boring & Milling Machine for sale. It is still in its original location, ready to be immediately delivered.
Are you looking for an used Juaristi TS5 Boring & Milling Machine?
Then don’t hesitate and contact us. Call +34 976500624, email us at sales@maquinariacolas.com, or fill out the form at the end of the machine listing.
We’d be happy to help and answer all your questions. We’ll send you a no-obligation quote for the machine.
If you’d prefer to see this used Juaristi TS 5 MG-20 CNC boring machine in operation, please don’t hesitate. Contact us using any of the methods listed above.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
