Travelling Column Milling Machine Anayak HVM 8000
Other available Travelling column milling machines
ZAYER 30 KMU-5000
New in 1999 CNC HEIDENHAIN TNC-430PA Table Surface: :4.700 x 1.200 mm. Travel (X/Y/Z) :3.400/1.250/2.000 mm. Quill Travel (W Axis) :500 mm. Automatic Head 45º 0.001º/0.001º Twist
CORREA L 30/58
New in 1999 with CNC HEIDENHAIN TNC 430 D Table :6.120 x 1.000 mm Travels (X/Y/Z) :5.850/1.200/2.000 mm Auto Indexing Head :2. 5º – 2. 5º ATC 60 positions. Chip conveyor 4 additional
Used Correa L30/43
Reconstructed milling machine with total Quality CNC Heidenhain TNC 426 PB Table Surface :6.120 x 1.000 mm Travels (X/Y/Z): 4.300/1.200/1.500 mm Autoindex Head:2. 5º – 2. 5º ATC 40
ZAYER 30 KCU-22000 Floor Type MiIling Machine
22 meter travelling column milling machine New inl 2000. CNC SIEMENS 840D Travels (X/Y/Z):22.000/1.500/3.000 mm. AutoIndex Head 45º 0.001º/0.001º ATC 30 Tools Internal Coolant Chip
Technical Features of this Moving Column Milling Machine
| Table Surface | 8.000 X 2.000 mm |
| Longitudinal Traverse (X Axis) | 7.300 mm |
| Transversal Traverse (Y Axis) | 1.500 mm |
| Vertical Traverse (Z Axis) | 2.500 mm |
| Rapid Traverse | 8.000 mm/min |
| Max. Working Feed | 6.000 mm/min |
| Taper | ISO-50 (69871-B) |
| Turning Speeds | 20 – 3.000 r.p.m. |
| Auto Indexing Head | 2,5º – 2,5º |
| Tool Chargers | INCLUDED |
| Nº Tools Charger | 40 Tools. |
| Internal Coolant | INCLUDED |
| Longitudinal Chip Conveyor | INCLUDED |
| 2 Clamping Angle Plates | INCLUDED |
| Several Tools | INCLUDED |
| Main Motor Power | 30 Kw. |
| Nº Ranges | 2 Ranges |
| Max. Carrying Load Table | 20.000 Kg. |
| Machine Weight | 65.000 Kg. |
| Control | SIEMENS 840 |
| Year Manufacture | 2002 |
| Machine Condition | EXCELLENT |
Detailed information of this Moving Column Milling Machine

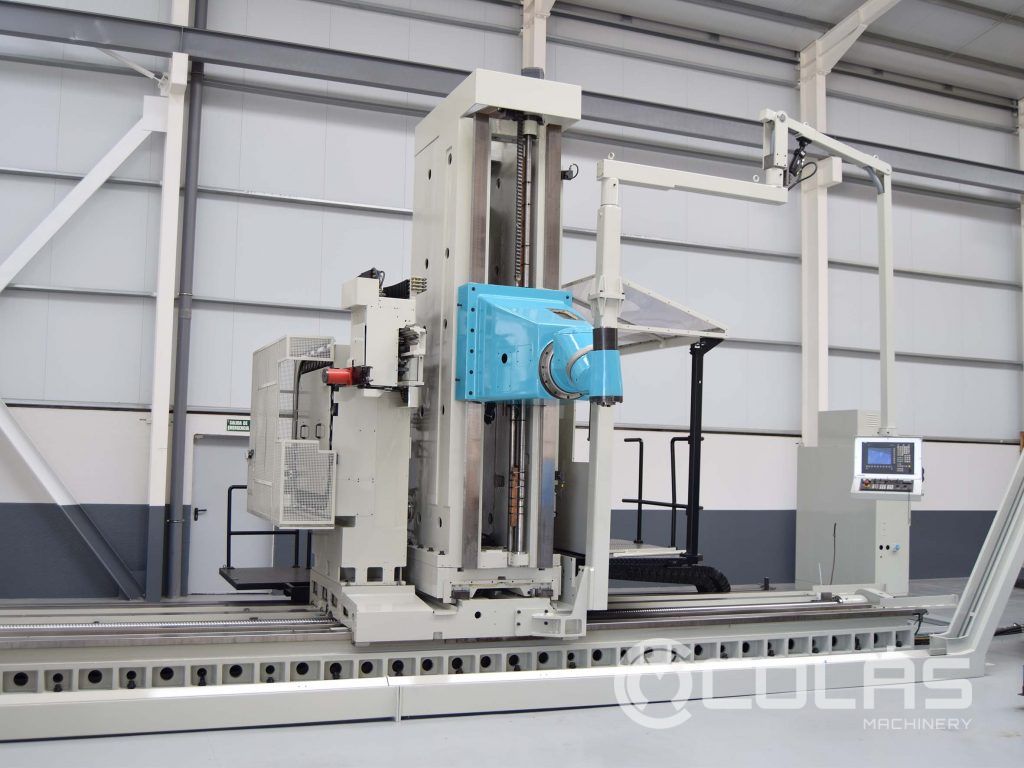

This Used Travelling Column Milling Machine Anayak HVM 8000 with numeric control SIEMENS 840 was built in 2002 and it’s in an excellet status in the used machine tools warehouse of Maquinaria Colás in Zaragoza.
It has semi automatic head ( 2.5º in head and nose), 40 positions automatic tool charger, internal coolant and longitudinal chip conveyor.
