Used Pinacho Taurus 260 x 2000 (2002)
Other available CNC Lathes
GEMINIS GHT6-G2 1300 x 3000
Year: 2007. FAGOR 8055 TC/C CNC Max. swing over bed / carriage: 1,300/940 mm Distance between centers: 3,000 mm C-axis and live tooling 8-position VDI 50 turret Ø 900 mm universal 3-jaw
Mori Seiki NLX 2500SY/700
Mori Seiki turning center new in 2011 C axis in spindle and sub spindle. Y Axis Maximum swing over bed: 590 mm. Driven Tools. High precision refrigeration Bar feeder and part
MORI SEIKI NL 3000 / 3000
Manufactured in 2008 with MORI SEIKI MSX-850III CNC Max. swing over bed / carriage: 995 / 825 mm Spindle bore: 105 mm 12-position turret SCHUNK THW hydraulic chuck (Ø400 mm) SHW hydraulic

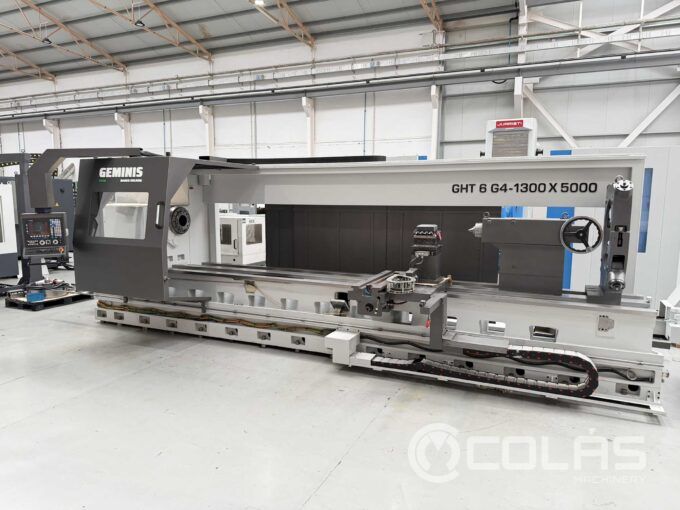

GEMINIS GHT6 G4 1,300 x 5,000
New in 2008. CNC Fagor 8055TC Maximum swing over bed / carriage: 1300/1000 mm DIN 55026-11 spindle nose with 104 mm bar capacity SAUTER 300×300 4-position automatic turret Tailstock quill
Pinacho Rhino SK/425
New in 2005 with GE Fanuc Series 21i-T CNC Distance between centers: 5,000 mm Max swing over bed/carriage: 850/560 mm 8-position automatic turret Tailstock with hydraulic quill stroke 3-jaw
DAEWOO PUMA 2000-SY
New in 2003 with CNC FANUC 18i – T Max swing over bed/ carriage: 600/550 mm. Y Axis Travel: 100 (±50) mm. B Axis Travel: 580 mm. C axis 0.001º Driven turret positions
Geminis GHT4 720X3000
3-meter used CNC lathe New in 1999 CNC FAGOR 8055 TC/B Swing over bed/carriage: 720 / 470 mm Spindle bore diameter: 92 mm Duplomatic VDI 40 8-position turret 3-jaw self-centering
GURUTZPE A1200 4G CNC x 6000
New in 2008 CNC: FAGOR 8055 TC Maximum swing over bed/carriage: 1,200/1,000 mm C-axis + live tooling 4-jaw independent chuck (Ø 800 mm) 3 fixed steady rests and 2 Morari hydraulic
Technical Features of this Second Hand CNC Lathe
| Ø Max. Sobre Bancada | 530 mm. |
| Ø Max. Sobre carro Longitudinal | 475 mm. |
| Ø Max. Sobre carro Transversal | 315 mm. |
| Altura de Puntos | 260 mm |
| Distancia entre puntos | 2.000 mm. |
| Anchura de Bancada | 350 mm. |
| Ø Agujero del Husillo Principal | 80 mm. |
| Avance rápido Eje X | 10 m/min |
| Avance rápido Eje Z | 10 m/min |
| Revoluciones del Cabezal | 0-2.500 rpm |
| Nº de Gamas Automáticas de Cabezal | 1 Gama |
| Potencia Motor Principal | 17 Kw. |
| Tipo de Nariz Cabezal | ASA B5,9 |
| Diámetro de la caña del contrapunto | 82 mm |
| Curso caña contrapunto | 235 mm |
| Cono Morse del Contrapunto | Morse 5 |
| Torreta Cambio Automático Duplomatic 8 Pos | INCLUIDO |
| Plato Universal 3 Garras Ø 250 | INCLUIDO |
| Evacuador de Viruta Longitudinal | INCLUIDO |
| Protección Trasera Completa | INCLUIDO. |
| 2 Volantes en Panel de Mandos | INCLUIDO. |
| Luneta Fija Capacidad Ø 200 mm. | INCLUIDO. |
| CNC | FAGOR 8050 TC |
| Dimensiones de Máquina | 5.435 x 1.985 mm |
| Peso de la Máquina | 3.500 Kg. |
| Potencia Total Instalada | 20 Kw. |
| Año de Fabricación | 2.002 |
| Nº de Serie | 45238 |
| Estado de la Máquina | BUENO |
Detailed information of this Second Hand CNC Lathe
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
