Bridge Type Milling Machine Nicolás Correa FP 30/30
Technical Features of this Brige Type Milling Machine
Table Surface | 3.000 X 1.250 mm |
Distance between Columns | 1.740 mm. |
Longitudinal Traverse (X Axis) | 2.500 mm |
Transversal Traverse (Y Axis) | 2.000 mm |
Vertical Traverse (Z Axis) | 1.000 mm |
Distance between shoulders | 800 mm |
Rapid Traverse (X,Y ,Z) | 15.000 mm/min |
Max. Working Feed | 5.000 mm/min |
Taper | ISO-50 |
Direct Exit Head Speed | 5.000 r.p.m. |
Main Motor Power | 22 Kw. |
Ranges | 2 Ranges |
Carrying Load Table | 10.000 Kg. |
Machine Weight | 21.500 Kg. |
Control | HEIDENHAIN TNC-530 |
Manufacture Year | 1998 (DECEMBER) |
Detailed information of this Brige Type Milling Machine
This second hand Bridge Type Milling Machine Nicolás Correa FP 30/30 with HEIDENHAIN TNC-530 is available in stock in the used metalworking machinery warehouse that Maquianria Colás owns in Zarazgoza – SPAIN.
Based on the concept of reliability the Bridge Type MIlling Machines FP model add to the typical characteristics of the Correa bridge milling machine design and exceptional strenght and versatility thanks to its over-sized structre, hardened and ground slideway and numerous optional features available. Teh resut is an homogeneous cnc milling machine than ensures rigiditir, damping capacity and accuracy.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available Bridge and Gantry milling machines

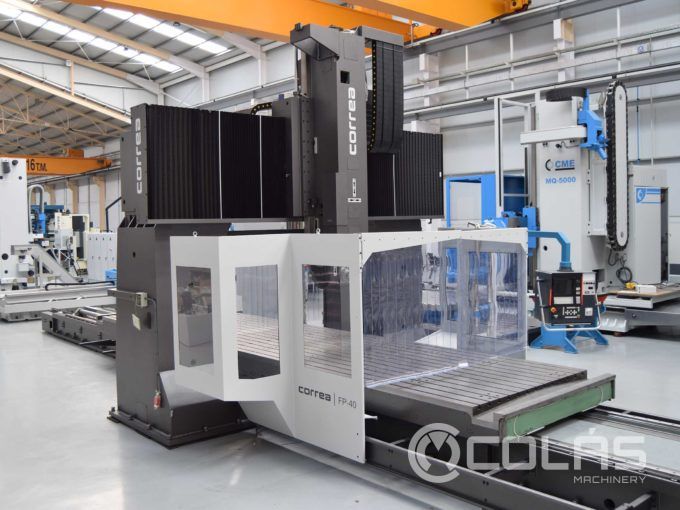

NICOLÁS CORREA FP40-80
8 meter bridge type milling machine New in Year /Reconstruction year :1999 / 2020 CNC HEIDENHAIN TNC-530 Table Surface :8.000 X 2.000 mm Travels (X/Y/Z): 8.000/3.250/1.000 mm Distance

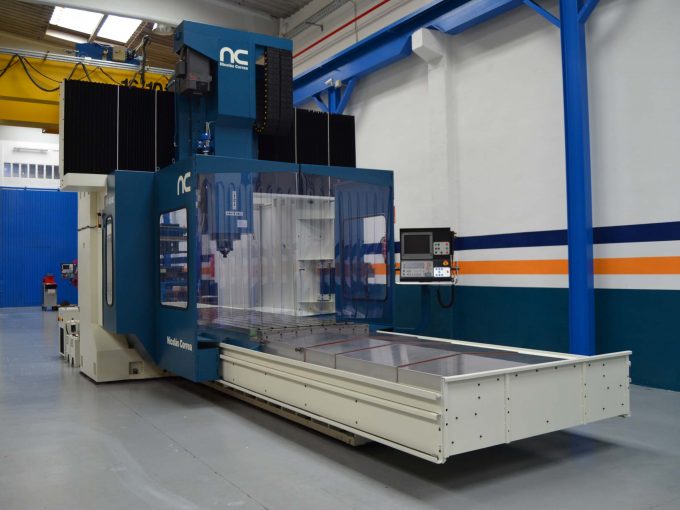

Rebuilt Bridge Type Milling Machine Nicolas Correa FP 40/40
Bridge type milling machine with CNC HEIDENHAIN TNC-530 New in/reconstructed in :2003 /2021 Table surface :4.000 X 1500 mm Travels (X/Y/Z) :4.000/2.500/800 mm Distance between columns

Bridge Type Milling Machine Zayer KP 5000
Table Surface:5.000 X 1200 mm. Travels: (X/Y/Z):4.710/2.560/1.100 mm. Distance between shoulders:1.800 mm. 3 Heads (direct exit, automatic 4º and 5º axis, extended). Automatic head change.

ZAYER KPCU6000 AR
High Performance Zayer Milling Machine New in 2003. CNC HEIDENHAIN TNC-530 Travels (X/Y/Z): 6000/3.550 + 873/1100 mm. Distance between columns: 2800 mm. Autoindex Head 45º

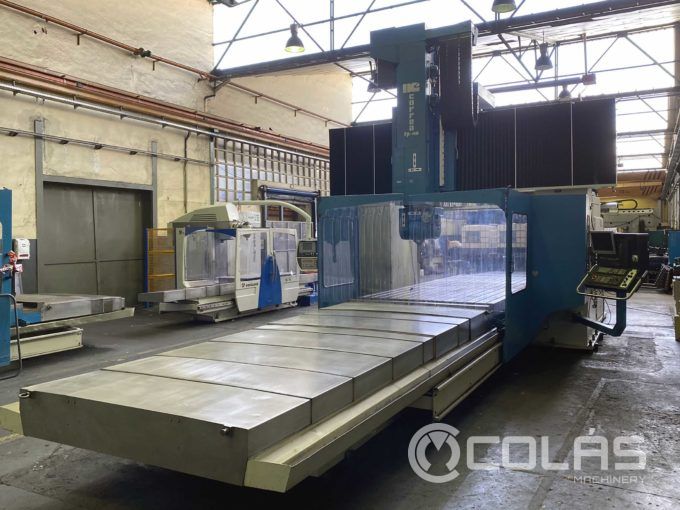

CORREA FP40/50 5 Axis in Liquidation Sale
