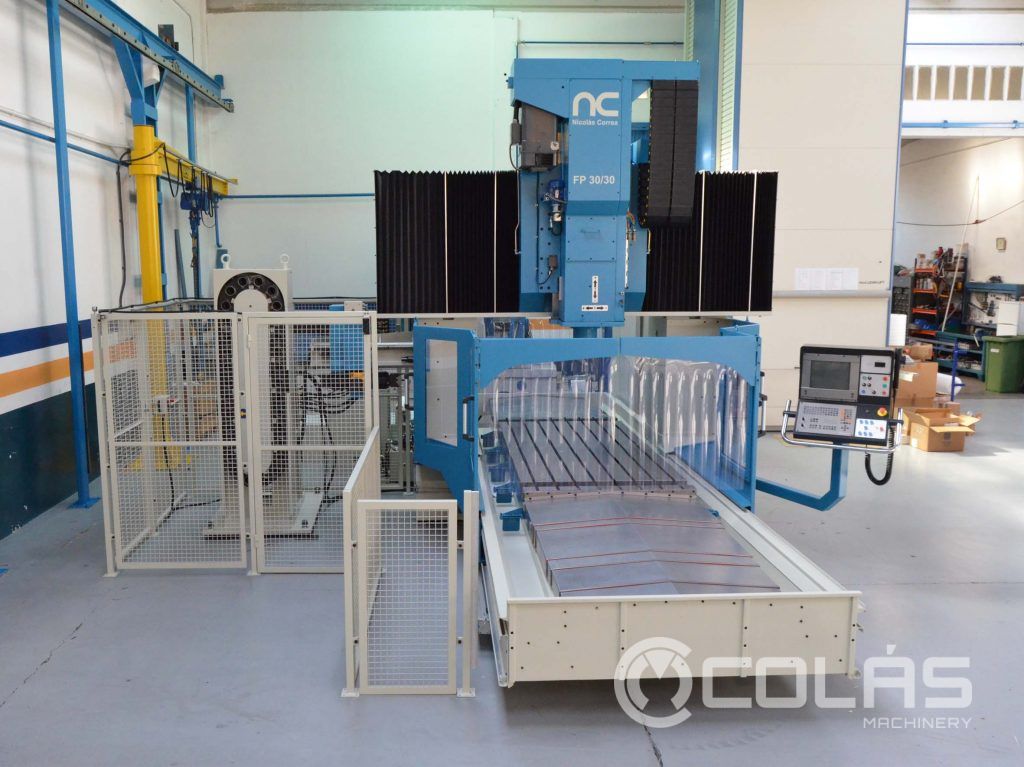

Bridge Type Milling Machine Correa FP 30/30 ATC
Other available Bridge and Gantry milling machines
Nicolás Correa FP 50/80 5 axis
New in 2010 with CNC iTNC-530 5 axis Table: 8.500×2.500 mm. Travels (X/Y/Z) :8.000/3.800/1.250 mm Distance between columns: 3.100 mm 5-axis automatic head B/C axis oscillation range: ±
Zayer TEBAS 5000
New in 2013 with HEIDENHAIN iTNC-530 HSCI CNC. Automatic head 45º 0.001º/0.001º 6000 rpm 43 kW Direct output head reduction 1:2.29 Automatic head changer ATC 20 tools Chip conveyor-
CORREA FP40/30 UAGA ATC
Bridge type Correa milling machine with autoindex head New in 2004 with CNC Heidenhain iTNC 530 Travels (X/Y/Z): 2.500/1.000/2.350 mm. Distance between columns: 2.350 mm. Orthogonal
Used Correa FP40/30 Bridge Type Milling Machine
Used Correa FP40/30 ATC UDG Bridge Type milling machine. CNC Heidenhain TNC 426. Orthogonal Autoindex Head 2.5º/2.5º. Internal Coolant. ATC 10 Tools.
Technical Features of this Brige Type Milling Machine
Table Surface | 3.000 X 1.250 mm |
Distance Between Columns | 1.740 mm. |
Longitudinal Traverse (X Axis) | 2.500 mm |
Transversal Traverse (Y Axis) | 2.000 mm |
Vertical Traverse (Z Axis) | 800 mm |
Rapid Traverse X Axis | 15.000 mm/min |
Rapid Traverse Y , Z Axis | 12.000 mm/min |
Max. Working Feed | 7.500 mm/min |
Taper | ISO-50 |
Direct Exit Head Speed | 5.000 r.p.m. |
Main Motor Power | 22 Kw. |
Ranges | 2 Ranges |
Coolant Through Tool. (12 Bar) | INCLUDED |
Soluble Oil Lubricant Tank With Filter Paper + Magnetic | INCLUDED |
External Electromandrel 18.000 rpm + Coolant | INCLUDED |
Automatic Charger 30 Tools | INCLUDED |
Piece Measure Probe RENISAW | INCLUDED |
Carrying Load Table | 10.000 Kg. |
Machine Weight | 25.500 Kg. |
Control | HEIDENHAIN TNC-426 |
Manufacture Year | 2.000 (DECEMBER) |
Detailed information of this Brige Type Milling Machine
Based on the fiablity concept, the used bridge type milling machine Correa FP 30/30 ATC with HEIDENHAIN TNC-426 can be found in an excellet status in the used machine tools warehouse that Maquinaria Colás owns in Zaragoza. The bridge type milling machine Correa is reviewed and ready for inmediate inspection and delivery.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Sold. Request information about this type of machinery
