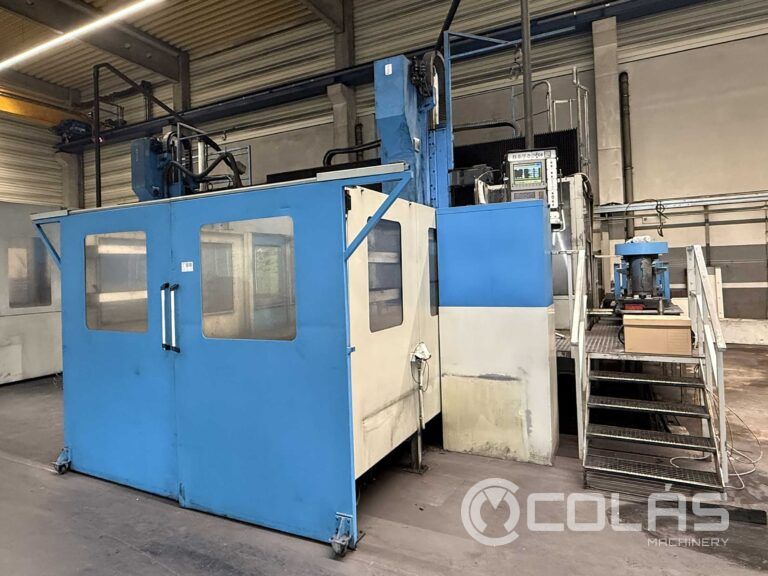

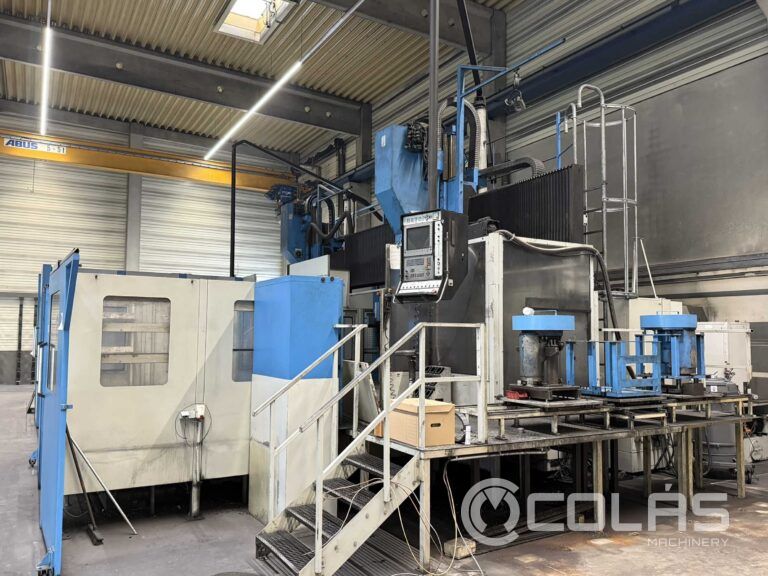

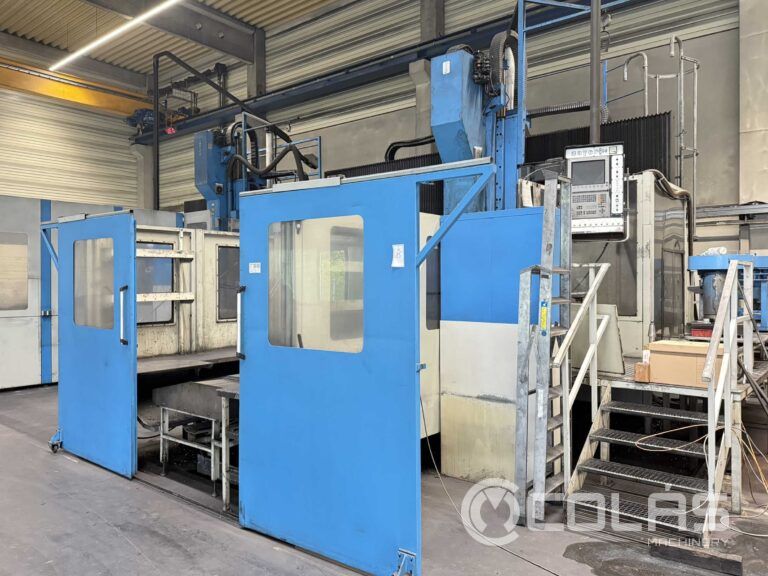

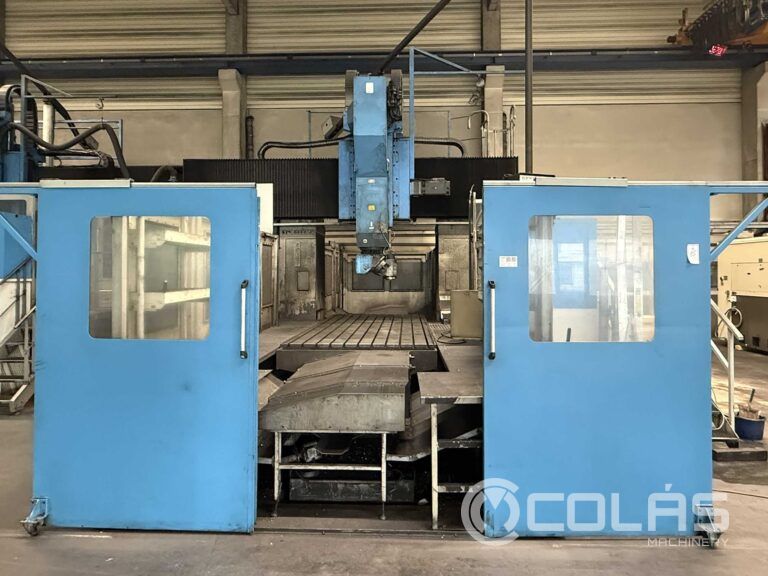

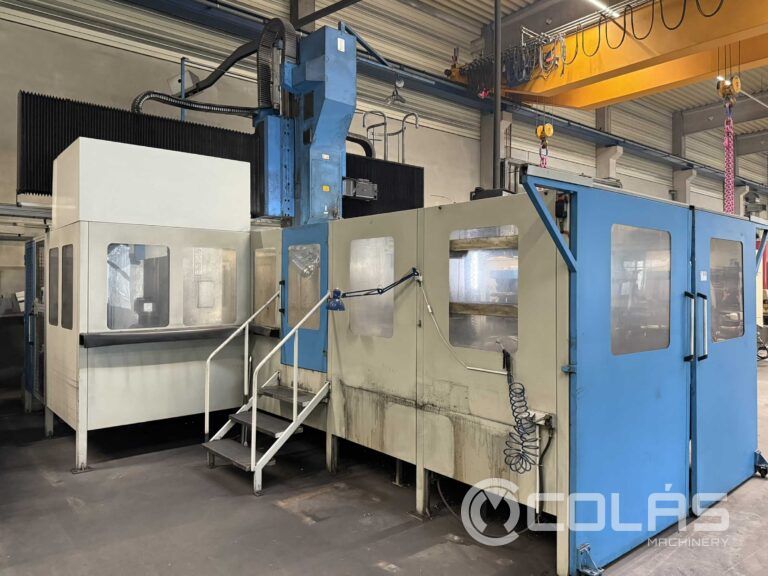

ZAYER KPU-4000AR
Technical Features of this Brige Type Milling Machine
| Manufacturer | ZAYER |
| Model | KPU-4000 AR |
| Year | 11/2000 |
| CNC | HEIDENHAIN TNC-430 PA |
| Table | |
| Table Surface | 4.000 x 1800 mm |
| Max weight allowed on table | 20.000 kg |
| Travels and feeds | |
| Longitudinal travel (X Axis) | 3.700 mm |
| Cross travel (Y Axis) | 3.050 + 873 mm |
| Vertical travel (Z Axis) | 1.100 mm |
| Distance between columns | 2.300 mm |
| Max distance from table to nose with direct exit head | 1.175 mm |
| Max distance from table to nose with 45º head in vertical position | 1.240 mm. |
| Rapid feed (X, Y, Z) | 25.000 mm/min |
| Max. Working Feed | 15.000 mm/min |
| X, Y, Z Axis acceleration | 0,8 m/seg2 |
| Automatic head 45 | |
| A Axis Rotation | 0.001º/360.000 posiciones |
| B Axis Rotation | 0.001º/360.000 posiciones |
| Automatic head 45º Taper | ISO-50 – DIN 69871 |
| Automatic head 45º Speed | 6.000 r.p.m. |
| Main spindle power | 37 kW. |
| Speed ranges | 2 |
| Direct exit head | INCLUDED |
| Direct output head taper | ISO-50 – DIN 69871 |
| Automatic tool changer (ATC) | INCLUDED |
| Magazine positions | 30 |
| Equipment | |
| Manual change of heads | INCLUDED |
| Retractable Automatic Support in the Right Side For 45º Head | INCLUDED |
| Manual support in the upper side or right column for direct output head | INCLUDED |
| Integral protection guards | INCLUDED |
| Double chip conveyor,one at each side of the machine | INCLUDED |
| Cross chip conveyor | INCLUDED |
| 1000 l Oil Tank with Filter Paper + Magnetic Separator | INCLUDED |
| Internal coolant 20 Bar | INCLUDED |
| External coolant 5 bar | INCLUDED |
| CNC 3D ROT Function | INCLUDED |
| Portable handwheel | HEIDENHAIN HR-410 |
| Axis and head engines manufacturer | SIEMENS DIGITALES |
| Others | |
| Ethernet connection | INCLUDED |
| Positioning accuracy | 0.010 mm. |
| Repetitive accuracy | 0.005 mm. |
| Machine colour | RAL 7038 / RAL 5012 |
| Machine weight | 42.000 kg |
Detailed information of this Brige Type Milling Machine
Used ZAYER KPU-4000AR high-performance bridge type milling machine in liquidation sale. It is ready for immediate delivery, still in the original location where it can be inspected under power.
Do you want to see more about this used ZAYER KPU-4000AR?
If so, don’t hesitate to contact us. We will contact you to provide the information you need, arrange a machine inspection, or advise you on the best option for your business.
You can contact us via the no-obligation quote request form, by phone at +34 976500624, or by emailing sales@maquinariacolas.com. We will be happy to help you.
Seize this opportunity and get a used ZAYER KPU-4000AR at the best price (clearance prices available for a limited time only).
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
