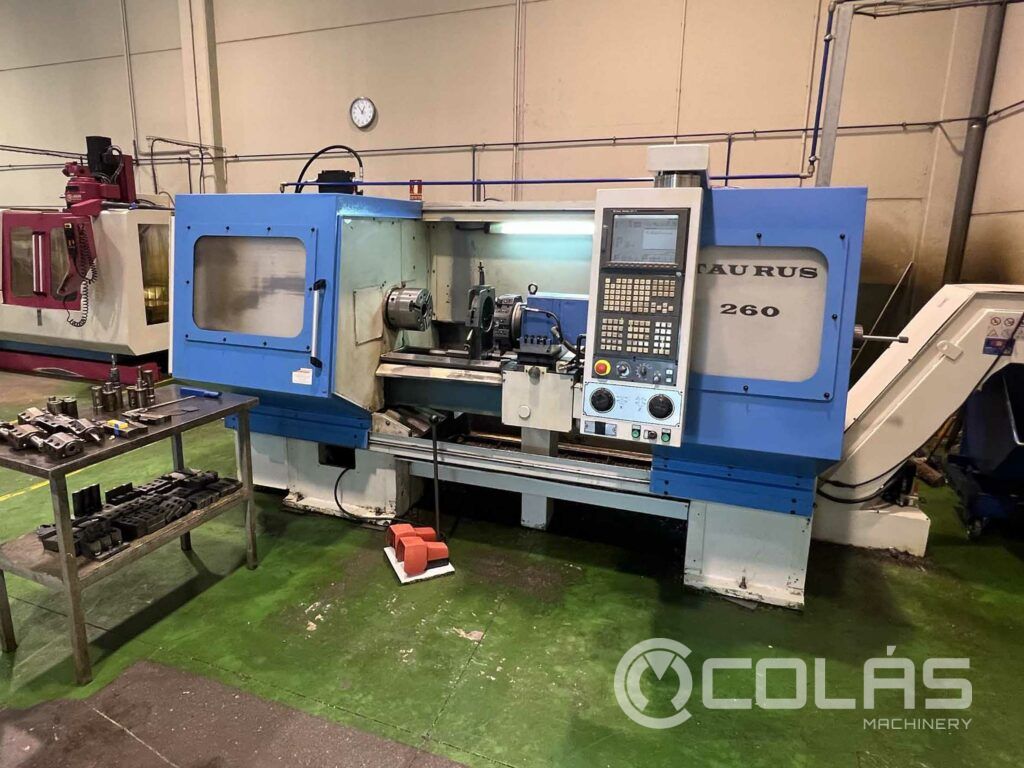

Used Pinacho Taurus 260 (2007)

    • Pinacho Taurus 260 usado año 2007
    • Pinacho Taurus 260 2000 entre puntos
    • Torno Pinacho Taurus 260 2 metros

    Technical Features of this Second Hand CNC Lathe

    Ø Max. Over Bed 530 mm.
    Ø Max. Longitudinal Carriage 475 mm.
    Ø Max. Transversal Carriage 315 mm.
    Centres Height 260 mm
    Distance Between Centres 2.000 mm.
    Bed Width 350 mm.
    Main Spindle Bore Ø 105 mm.
    Rapid Traverse X Axis 10 m/min
    Rapid Traverse Z Axis 10 m/min
    Head Turning Speeds 0-2.000 rpm
    Head Automatic Range 1  Ranges
    Main Motor Power 17 Kw.
    Spindle Nose ASA B5,9
    Tailstock Quill Ø 82 mm
    Hydraulic Tailstock Quill Travel 235 mm
    Tailstock Morse Taper Morse 5
    Turret Automatic Change Duplomatic 8 Pos. INCLUDED
    Universal Chuck – 3 Jaws Ø 250 INCLUDED
    Universal Chuck – 4 Jaws Ø 310  INCLUDED
    Longitudinal Chip Conveyor INCLUDED
    Complete Rear Protection  INCLUDED
    2 Handwheels at Control Pad  INCLUDED
    Fixed Steady Rest Ø 200 mm  INCLUDED
    CNC FAGOR 8050 TC
    Machine Dimensions 5.435 x 1.985 mm
    Machine Weight 3.500 Kg.
    Total Power Required 20 Kw.
    Manufacturing Year 2.007
    Serial Number 53919
    Machine Condition EXCELLENT

    Detailed information of this Second Hand CNC Lathe

    This used Pinacho Taurus 260 (2007) at Maquinaria Colás. We own a  wide selection of used CNC Lathes in stock at our used machinery warehouse.More info and prices here.

    ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
    Technical specifications are not binding and may be modified without notice

    Other available CNC Lathes

    Gurutzpe A 1000 / 3G x 4000

    Gurutzpe A 1000/3G x 4000

    4 meter and 4 guides Gurutzpe CNC Lathe New in 2004. CNC FAGOR 8055 TC Max swing over bed :1.000 mm. W Axis – Driven tailstock CNC controlled C Axis and driven tools Turret SAUTER VDI 50 8

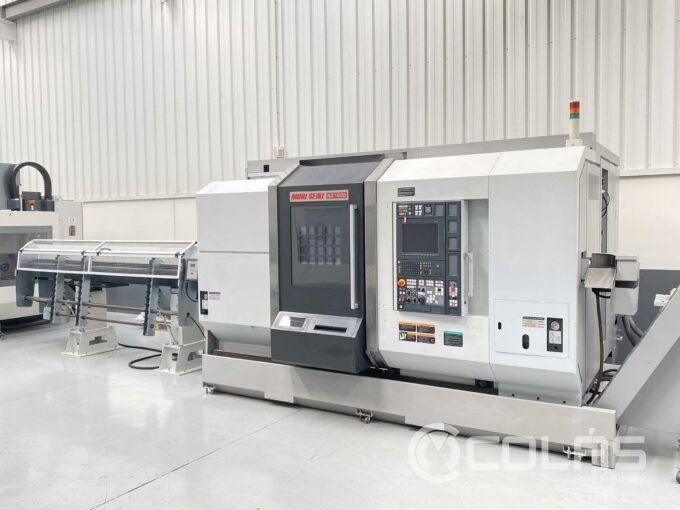

    Mori Seiki NZ1500 T2Y2
