Used Doosan Puma 600
Technical Features of this Second Hand CNC Lathe
| New in | 2001 |
| CNC | Fanuc 18 iT |
| Distance Between Centres | 1.600 mm. |
| Ø Swing over Bed | 1.030 mm. |
| Ø Max. Turning | 900 mm. |
| Ø Max. Turning over Carriage | 800 mm |
| Max. Weight Piece – Chuck | 1.400 Kg. |
| Max. Weight Piece Chuck – Centre | 3.700 Kg. |
| X Traverse | 470 mm. |
| Z Traverse | 1.650 mm. |
| Head Turning Speeds | 0 – 1800 rpm |
| Head Torque | 6.605 Nm |
| Speed Ranges | 2 Ranges |
| Main Motor Power | 35/45 Kw |
| Nº Tools at Turret | 12 Herr. |
| Turret Tool Dimension | 32 X 32 mm |
| Ø Spindle Through Hole | 117 mm. |
| Automatic Tool Setter | INCLUDED |
| Chuck | Ø 620. mm |
| Machine Weight | 16.000 Kg. |
| Machine Condition | EXCELLENT |
Detailed information of this Second Hand CNC Lathe
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Other available CNC Lathes
Used CMZ TC35Y – 1350 (2016)
CMZ CNC Lathe with Y axis, C Axis and driven tools New in 2016 CNC Fanuc 31i Model B Turret – 12 positions driven tools Chip Conveyor Tool Presettter Tools and
CMZ TL20M with Fanuc 32i
Used CNC lathe with FANUC 32i Model A New in 2011 C Axis and Live Tools Chip Conveyor Automatic Parts Conveyor Tool
DOOSAN PUMA 2000SY CNC Lathe
Second Hand Turning Center with main spindle, sub-spindle both with C Axis Driven tools Y Axis New in 2007. CNC Fanuc 18I MB Bar Feeder TNS
GURUTZPE A-1400 x 5000 2G
Second Hand Gurutzpe Lathe with 5 meter between centers New in 2003. CNC Fagor 8055 TCN Max. Turnig Diameter :1.420 mm. Turret BARUFALDI 4 Positions :320 X 320 mm Longitudinal Chip
HYUNDAI KIA SKT-400LMC
Used HYUNDAI – KIA turning center New in 2008 CNC FANUC 21 i TB Distance between centers :2.110 mm. Max Turning Ø :570 mm. C Axis and Driven Tools Turret 12 Positions 2 Radial and 2
GEMINIS GHT6-G2 8000×1300
8-meter Geminis turning center New in 2007 with CNC SIEMENS 840D Distance between centers: 8,000 mm. 4-position automatic turret Longitudinal Chip Conveyor Chuck 4 Independent Hard Jaws Ø

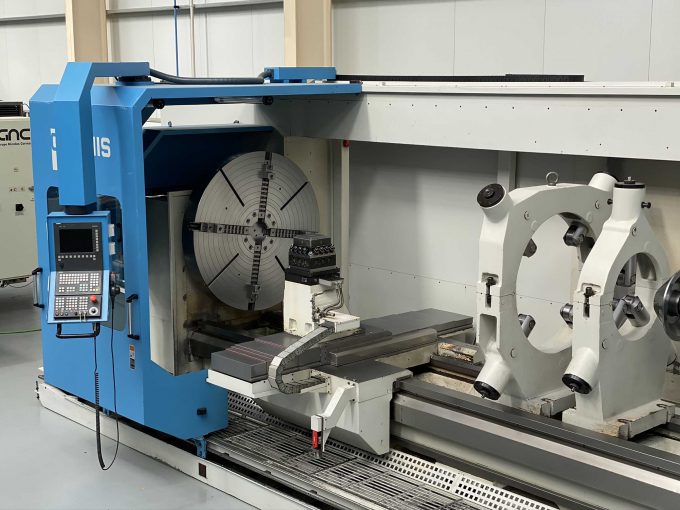

GEMINIS GT7 x 4.000 CNC Lathe
