Ravensburg P 30
Technical Features of this Conventional lathes
Manufacturer / model | RAVENSBURG P 30 |
New in | 1976 / 2019 |
Swing Over Bed | 3.040 mm. |
Swivel diameter in pocket | 4.300 mm. |
Turning length | 3.600 mm |
Turning length | 140 mm. |
Speed Range | 0.18-92 rpm. |
Speeds | 36 |

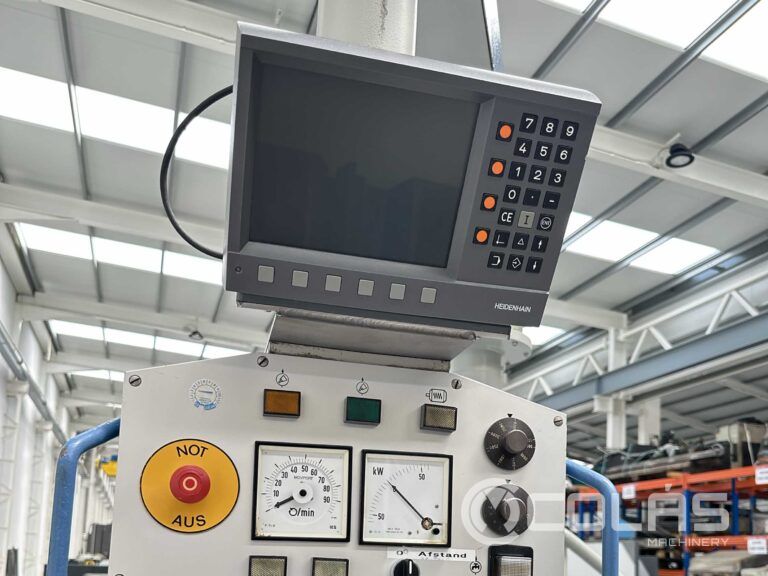

4 axis digital readout system | HEIDENHAIN |

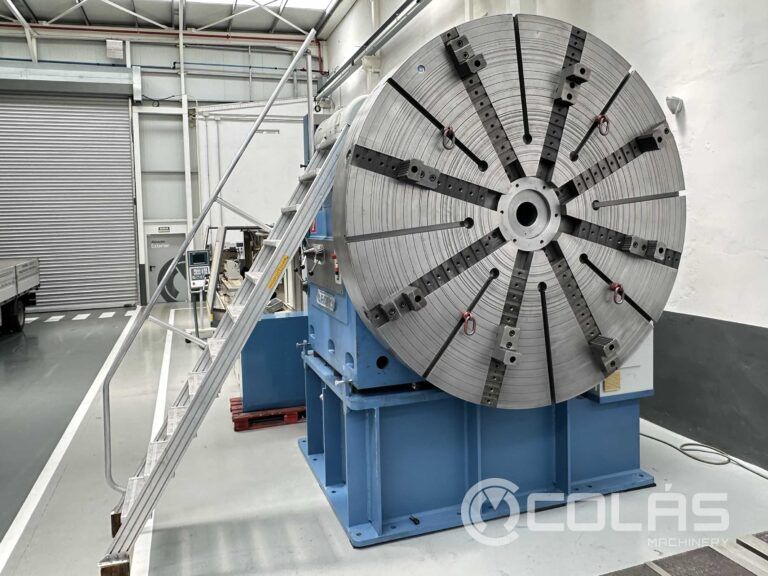

8 independent jaw chuck Ø2.500 mm. | INCLUDED |
Max workpiece allowed | 25.000 kg |
Equiped with tolos and jaws | INCLUDED |
Total power | 56 kW |
Machine weight | 55.000 kg |
Machine dimensions (LxWxH) | 9.450 x 4.700 x 4.400 mm. |
Detailed information of this Conventional lathes

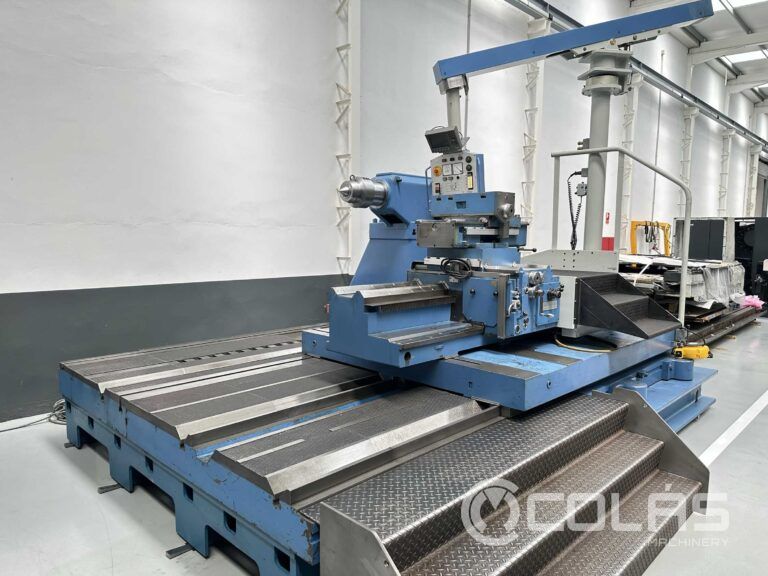

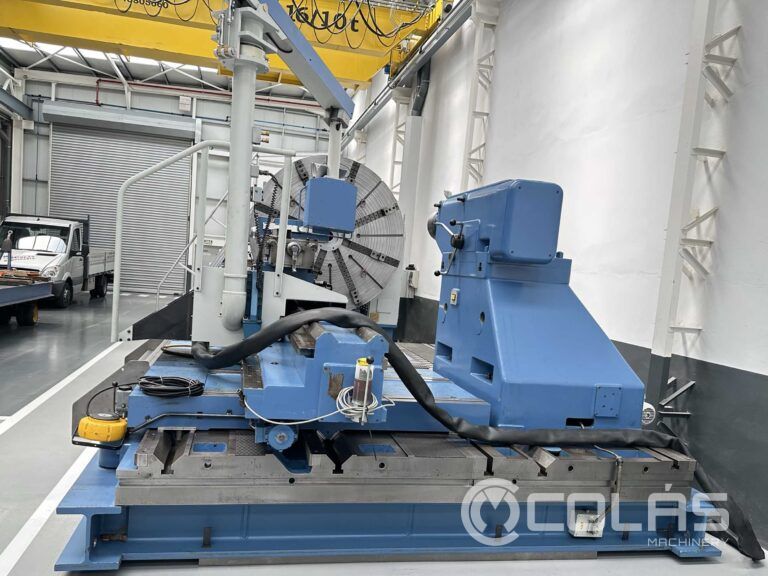

Second-hand Ravensburg P 30 facing lathe for sale in our second-hand machine warehouse in Zaragoza. Ready for immediate delivery.
Are you interested in this heavy-duty lathe?
Then do not miss the opportunity and contact us. One of our used machine experts will contact you as soon as possible. Whether you just want to get further info about this Ravensburg P-30 and receive a free quote, or if you prefer to book an appointment for a visit to our used machine tool exhibition, we will help you.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
Last update: 13/11/24
