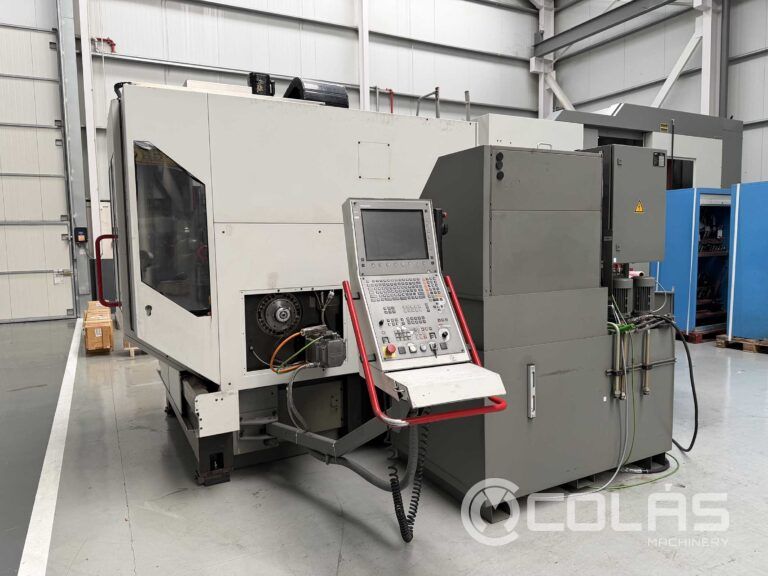

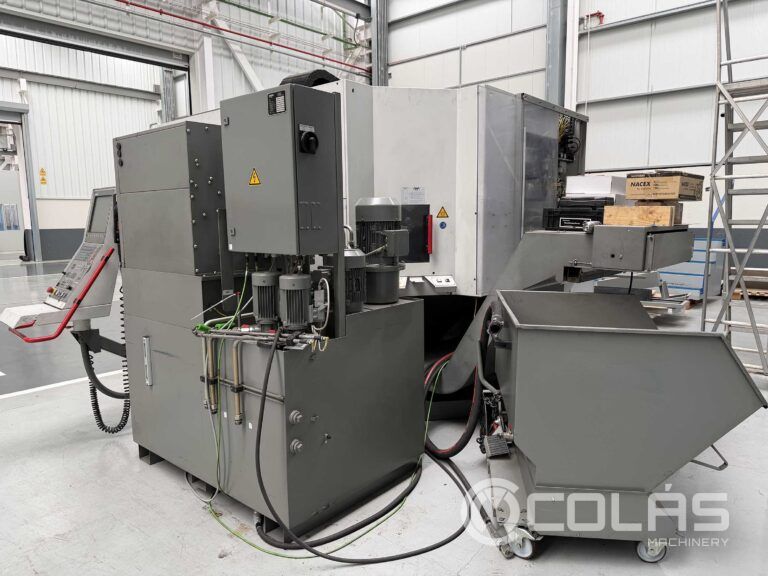

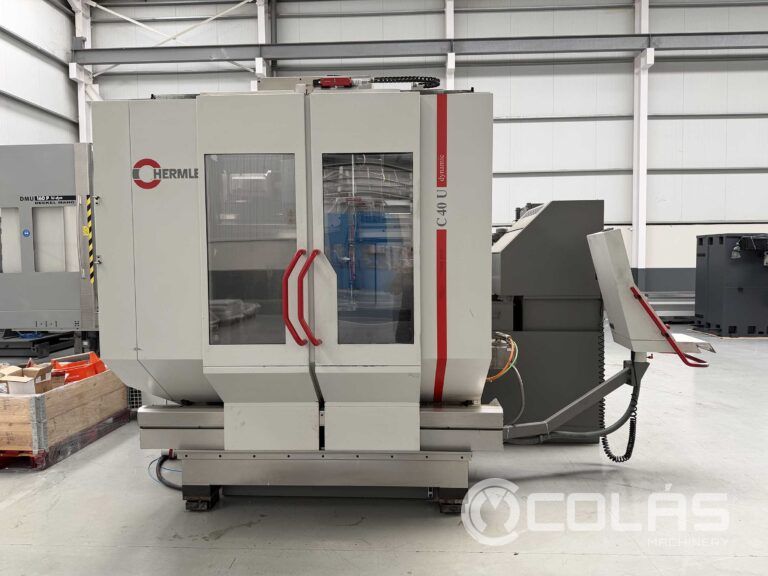

Hermle C40-U Dynamic
Technical Features of this 5 axis machining center
| Manufacturer | HERMLE |
| Model | C40 Dynamic |
| Year | 2006 |
| CNC Control | HEIDENHAIN iTNC 530 |
| Table | |
| Table surface | Ø 800 mm. |
| NC Swivel rotary table simultaneous | INCLUDED |
| Max weight allowed on table | 1400 kg |
| Turning table range (C Axis) | 0.001º ( ±360º) |
| Tilting range (B Axis) | +25 / -110 º |
| Direct measuring system | INCLUDED |
| Max part diameter | 840 mm. |
| Travels and feeds | |
| Longitudinal travel (X Axis) | 850 mm |
| Cross travel (Y Axis | 700 mm |
| Vertical travel (Z Axis) | 500 mm |
| Rapid feed X,Y,Z | 60.000 mm/min |
| Main spindle | |
| Max spindle speed | 18.000 r.p.m. |
| Spindle taper | SK 40 DIN 69871 |
| Main spindle power | 15 W |
| Main spindle torque | 130 Nm |
| Equipment | |
| ATC | INCLUDED |
| Positions in magazine | 38 |
| Internal coolant 80 Bar | INCLUDED |
| Deposit with filter paper 200 l | INCLUDED |
| Active control cabinet cooling | INCLUDED |
| Infrared part touch probe Heidenhain | INCLUDED |
| Tool measuring Blum Laser | INCLUDED |
| Chip conveyor | INCLUDED |
| Spray pistol with pump 2 bar 40 l/min | INCLUDED |
| 3D Quick Set | INCLUDED |
| Portable handwheel | HEIDENHAIN HR-410 |
| Others | |
| Total power | 41 kVA |
| Machine Weight | 10.500 kg. |
Detailed information of this 5 axis machining center
Used Hermle C40-U Dynamic 5-axis machining center for sale. After being inspected by our team, it is available for immediate delivery from our warehouse in Zaragoza, where you can see it in operation.
Are you interested in this used Hermle 5-axis machining center?
Then don’t hesitate and contact us. Whether you just want to know the price, request more information, or come see the machine in operation, we’ll be happy to help.
You can call our sales line at +34 976500624, email us at sales@maquinariacolas.com, or fill out the contact and quote request form. We look forward to hearing from you.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
