DOOSAN Puma 400LM
Other available CNC Lathes
DOOSAN PUMA-700
Used Doosan CNC lathe ready for immediate delivery Year 2008. CNC Fanuc 21i TB Max swing over bed /carriage: 1,030/800 mm. Turret 12 positions 3 jaw-hydraulic chuck Ø 600 mm Tool
GEMINIS GHT4 720X2000
New in 2002 with FAGOR 8055 CNC Max. swing over bed/carriage: 720/470 mm. Main spindle hole diameter: 104 mm. Tailstock diameter: 100 mm Automatic 4-position turret 3 Jaw Universal

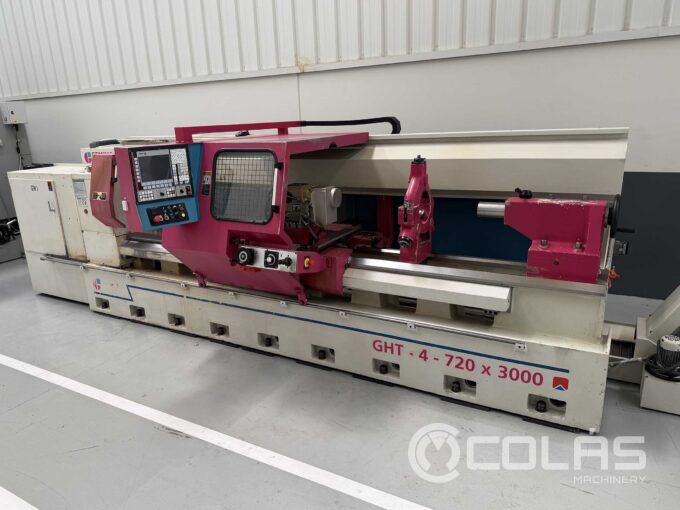

Geminis GHT4 720X3000
New in 2004 with FAGOR 8055 TC/B Maximum swing over bed/cross slide: 720/470 mm. C axis and driven tools Sauter turret 8 positions SHW Autoblock 315 BH Self-Centering 3-Jaw Chuck Hydraulic
Gurutzpe A1600 CNC 2G x 4000
Fabricado en 2008 con FAGOR 8055 TC Distancia entre puntos :4.000 mm. Eje C y herramientas motorizadas. Eje Y Tipo torreta Sauter 4 POS Contrapunto con movimiento longitudinal por CNC Muy
Mori Seiki NLX 2500SY/700
Mori Seiki turning center new in 2011 C axis in spindle and sub spindle. Y Axis Maximum swing over bed: 590 mm. Driven Tools. High precision refrigeration Bar feeder and part
DAEWOO PUMA 2000-SY
New in 2003 with CNC FANUC 18i – T Max swing over bed/ carriage: 600/550 mm. Y Axis Travel: 100 (±50) mm. B Axis Travel: 580 mm. C axis 0.001º Driven turret positions
Technical Features of this Second Hand CNC Lathe
| Manufacturer | DOOSAN |
| Model | PUMA 400 LM |
| Year | 2005 |
| CNC | FANUC 21 i TB |
| Distance Between | Centres 2.000 mm. |
| Ø Swing over Bed | 770 mm. |
| Ø Max. Turning over Carriage | 590 mm |
| Ø Max. Turning | 560 mm. |
| Max. Turning Length | 2.028 mm. |
| Z Axis Rapid Feed | 18.000 mm/min |
| X Axis Rapid Feed | 16.000 mm/min |
| Spindle Speed | 0 – 2.000 rpm |
| Speed Ranges | 2 |
| Spindle Nose | A2 -11 |
| Main Motor Power | 30 kW |
| Bar Working Diamter | 116.5 mm. |
| C Axis | INCLUDED |
| Driven Tools | INCLUDED |
| Drivel Tool speed | 3.000 rpm |
| Nº Tools at Turret | 12 |
| Tool Presetter | INCLUDED |
| Longitudinal Chip Conveyor | INCLUDED |
| Hydraulic Steady Rest | AUTOBLOCK 30-225 mm. |
| Chuck Ø | 380 mm |
| Machine Weight | 9.800 kg. |
| Machine Dimension | (Lx W x H) 6300x2450x2600 mm |
Detailed information of this Second Hand CNC Lathe
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
