DMG DMU 100 P duoBLOCK®
Other available 5 Axis Machining Centers
DMG DMU 125 P 5 Axis
CNC: HEIDENHAIN TNC-426.New in 2006. Table Dimension:Ø 1.250 X 1.000 mm.Travels (X/Y/Z) :1.250/880/800 mm. Table Rotation (C Axis) :0,001 º (Continuous). ATC 30 Tools. Internal Coolant . Chip
DMG DMU 65 monoBLOCK®
Year 2012. HEIDENHAIN TNC 530 3D Table surface: 800 x 650 mm. Tilting rotary table Ø650 mm 0.001º Travels (X/Y/Z): 735/650/560 mm. Spindle speed 24,000 rpm ATC 60 tools Internal
IBARMIA ZVH58 – L3000
New in 2001 with a Heidenhain iTNC 530 control. Table area: 3,600 x 1,050 mm. Integrated rotary table: 1,000 mm diameter. Travels (Z/Y/Z): 3,000/1,000/860 mm Effective travel x 2 stations: 2
DMG DMU-160P
DMG machine center for 5-axis milling. New in 2002 with HEIDENHAIN iTNC-530 CNC Table: 1.500 x 1.250 mm. 0.001º (Continuous) Travel (X/Y/Z): 1,600/1,250/1,000 mm. Automatic head horizontal
QUASER MV 204II U/10
Used Quaser 5 axis Machining center New in 2002. CNC HEIDENHAIN ITNC530 3 pallets Turning table (C Axis): 0.001º Travels (X/Y/Z): 700/590/480 mm. Titling spindle head range (A Axis):
DMG DMU-50 eVo linear
New in 2008 with HEIDENHAIN i-TNC 530 Rotary table 500×380 mm 0.001º ( ±360º) Travels (X/Y/Z) :500/450/400 mm Titling head :0º- 108º ATC 30 tools Internal coolant 40 bar with paper
Technical Features of this 5 axis machining center
| Manufacturer | DMG |
| Model | DMU 100 P duoBLOCK® |
| Year | 2007 |
| CNC | HEIDENHAIN iTNC-530 3d |

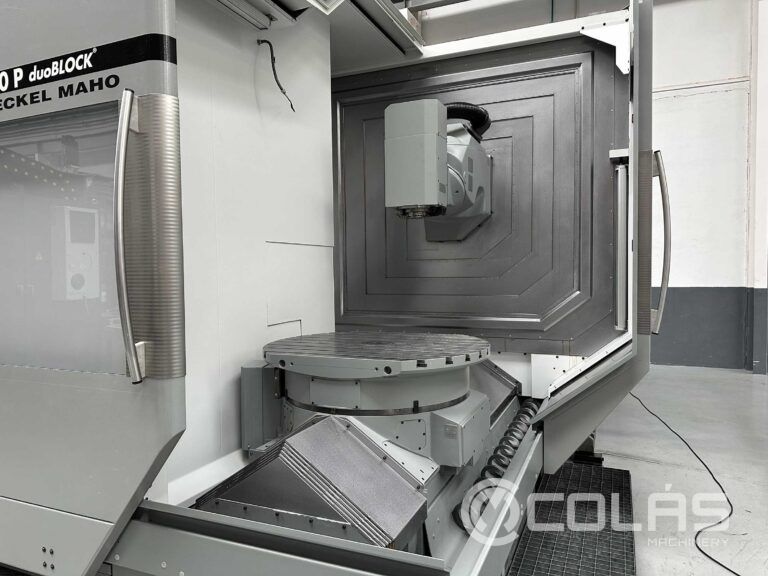

| Rotary table | |
| Table Surface | 1.100 x 900 mm. |
| Max. Carrying Load Table | 2.000 kg. |
| Travels and feeds | |
| Longitudinal Travel (X Axis) | 1.000 mm. |
| Cross Travel (Y Axis) | 1.000 mm |
| Vertical Travel (Z Axis) | 1.000 mm. |
| Table Rotation (C Axis) | 0,001 º (Continuo) |
| Horizontal / Vertical Auto Indexing Head (B Axis) | 0,001 º (Continuo) |
| Rapid / work speed | 60.000 mm/min |
| Main Spindle | |
| Spindle taper | SK-40 DIN 69871 |
| Spindle speed | 20-18.000 rpm |
| Spindle power | 28 /19 kW (40% /100% ED) |
| Spindle torque | 121/82 Nm (40% /100% ED) |
| Automatic tool changer | |
| Positions at tool magazine | 60 |
| Magazine type | Chain |
| Changer type | Horizontal |
| Equipment | |
| Internal coolant | INCLUDED |

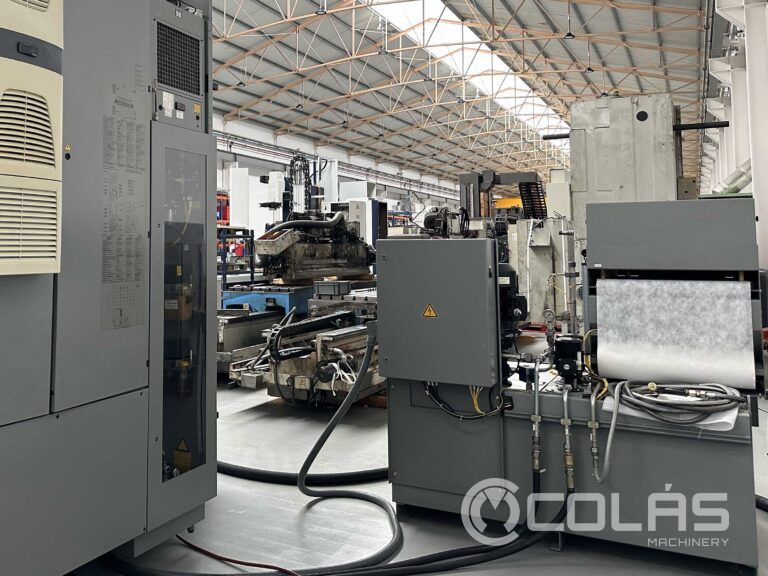

| Coolant deposit capacity 980l with 2 high pressure pumps | |
| 1 unit 40 bar 23 l/miin | |
| 1 unit 80 bar 15 l/min | INCLUDED |
| Internal coolant pump activation with M-Function | INCLUDED |
| Chip Conveyor | INCLUDED |
| Portable Handwheel | HEIDENHAIN HR-410 |
| Tool Touch Probe | BLUM LASER NT-Hybrid |
| Others | |
| Total power | 69 kVA |
| Net Weight | 16.800 kg. |
Detailed information of this 5 axis machining center

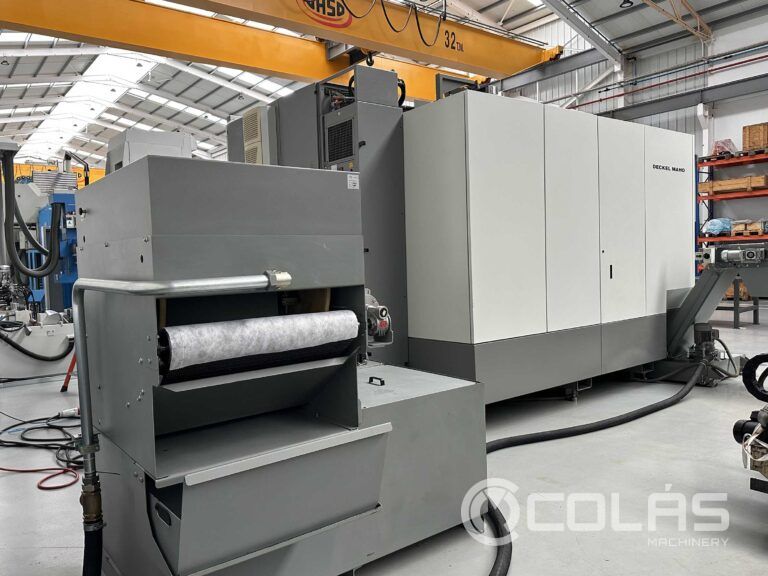

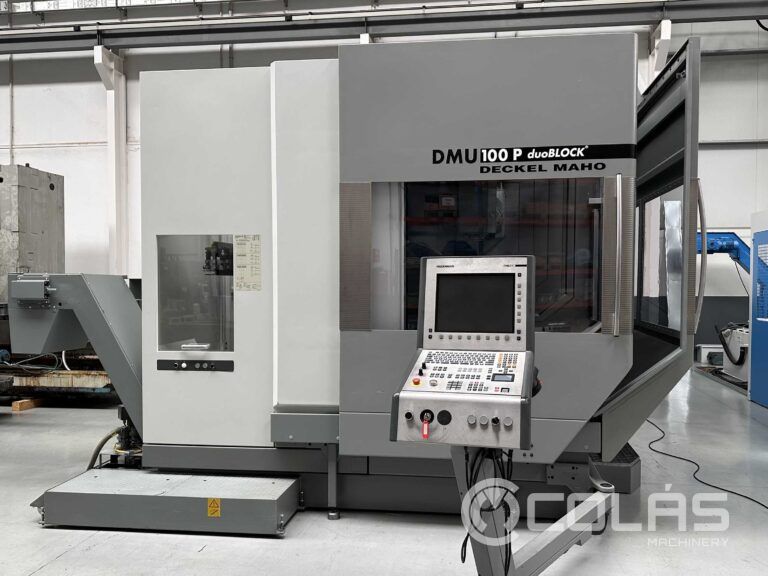

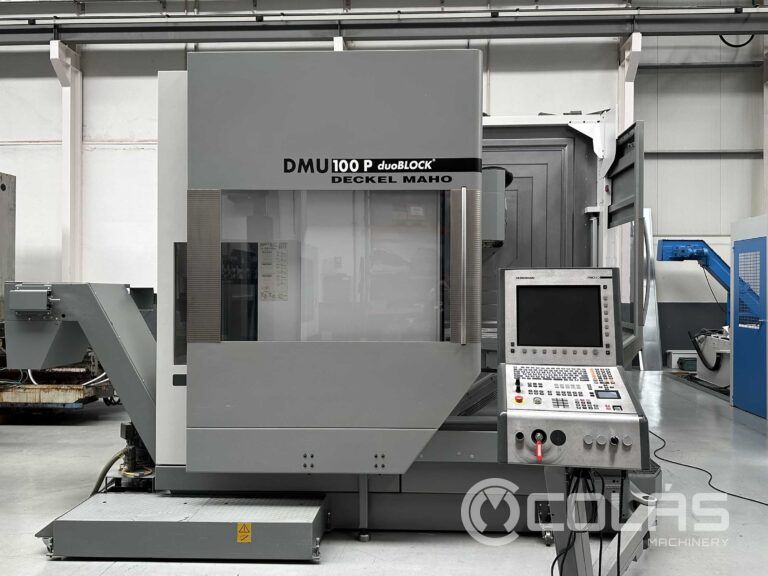

Used DMG DMU 100P duoBLOCK® 5-axis machining center for sale. Available at our warehouse in Zaragoza, where you can see it in operation.
Do you want to learn more about this DMG DMU 100P duoBLOCK® machining center?
Then don’t hesitate and contact us. Whether you simply want to request a no-obligation quote, have one of our sales representatives answer your questions, or come and see the machine in operation, we will be happy to help.
Call to +34976500624, email at sales@maquinariacolas.com, or fill out the contact form. We’ll contact you and provide with the requested info.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
