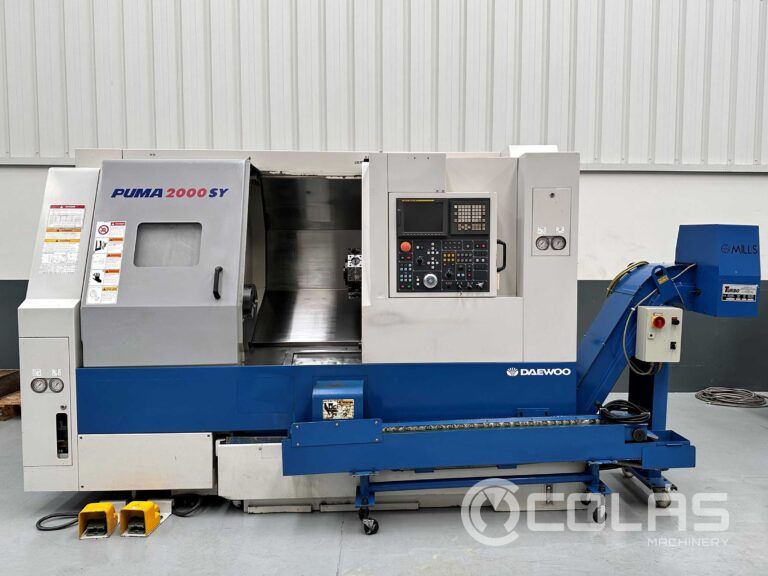

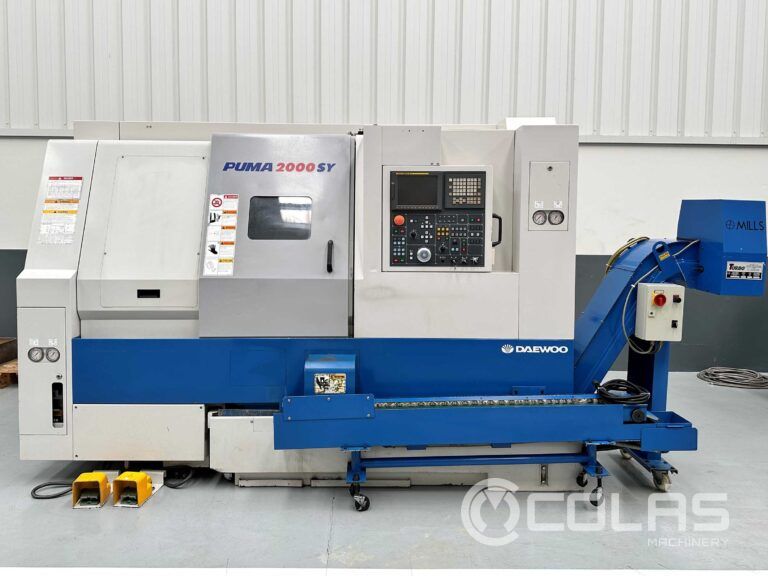

DAEWOO PUMA 2000-SY
Technical Features of this Second Hand CNC Lathe
| Manufacturer | DAEWOO |
| Model | PUMA 2000 SY |
| Year | 2003 |

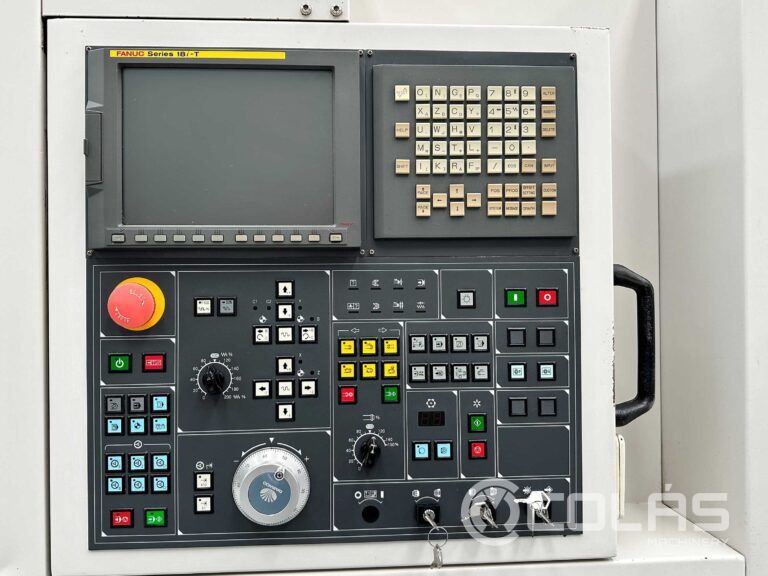

| CNC | FANUC 18i – T |
| Capacities | |
| Swing over bed | 600 mm. |
| Swing over saddle | 550 mm. |
| Max. turning diameter | 330 mm. |
| Max. turning length | 510 mm. |
| Travels and feeds | |
| X Axis Traverse | 250 mm. |
| Z Axis Traverse | 580 mm. |
| Y Axis Traverse | 100 (±50) mm. |
| B Axis Traverse | 580 mm. |
| Rapid feed X Axis | 20 m/min. |
| Rapid feed Z axis | 24 m/min. |
| Rapid Traverse Y | 7,5 m/min |
| Rapid Traverse B | 20 m/min. |
| Main Spindle | |
| C Axis | INCLUDED |
| C Axis index | 0.001 º |
| Through hole Ø | 76 mm |
| Nose | A2#6 |
| Main Spindle Speed Ranges | 4.500 rpm. |
| Main Spindle motor power | 15 kW |
| Sub-spindle | |
| C Axis in sub-Spindle | INCLUDED |
| C Axis index | 0.001º |
| Sub Spindle through hole Ø | 45 mm |
| Sub Spindle Speed Ranges | 6.000 rpm |
| Sub Spindle motor power | 7.5 kW |
| Turret and driven tools | |
| Nº of Station | 12 |
| Tool Size | 25 mm |
| Turret Indexing Time | 0.1 s |
| Living Tool Speed | 5.000 rpm. |
| Rotary tool spindle motor power | 5.5 kW |
| Equipment | |
| Spindle Chuck Ø | Ø 210 mm |
| Sub Spindle Chuck Ø | Ø 160 mm |
| 2 Axial Live Tool Holder | INCLUDED |
| 2 Radial Live Tool Holder | INCLUDED |
| Tool pre-setter | INCLUDED |
| Cutting Oil Pump high pressure (7Bar) | INCLUDED |
| Automatic Parts Catcher | INCLUDED |
| External Parts Conveyor | INCLUDED |
| Chip Conveyor | INCLUDED |
| Others | |
| Machine Dimension | 3.118 x 1.705 x 2.076 mm. |
| Machine Weight | 4.850 kg. |
| Total Power | 50,7 kVA |
Detailed information of this Second Hand CNC Lathe
Second-hand DAEWOO PUMA 2000SY CNC lathe for sale at our warehouse in Zaragoza. Available for inspection and immediate delivery in our Zaragoza warehouse. It can be seen in operation.
Are you interested in this used DAEWOO PUMA 2000SY?
So don’t think about it and contact us. You can do it filling out our request form,calling our telephone number +34 976500624 or writing to sales@maquinariacolas.com
Whether you just want to know the price of this second-hand CNC lathe or if you prefer more information and/or come and see it in operation, we will be happy to help you.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
