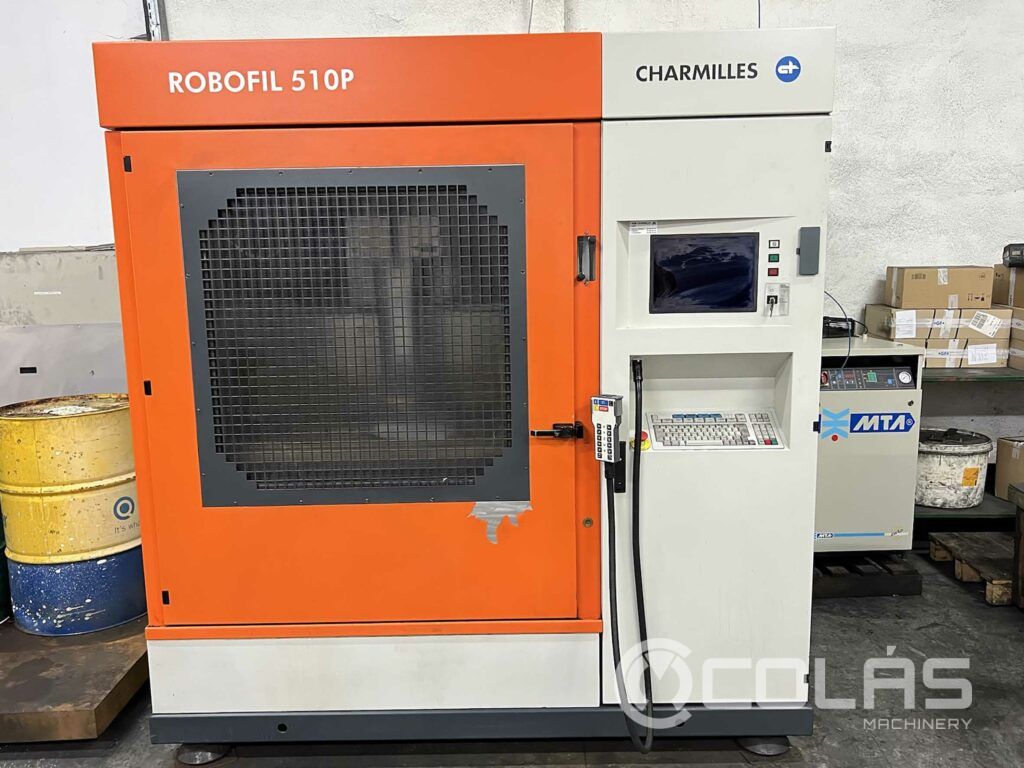

Charmilles Robofill 510-P Wire EDM Cutting Machine
Other available EDM Machines
ONA HS 400 die-sinking EDM
New in 2004 Travels (X/Y/Z): 600/400/400 mm. C axis travel: 360º Table surface:800 x 600 mm. Tank dimensions: 1,200/800/400 mm. Max weight allowed on table: 1,500 kg. Maximum height of
ONA AE 400 – Wire EDM
New in 2006 Travels (X/Y/Z): 600/400/400 mm. Travels U-V : 80×80 mm. Max, workpiece weight: 3,000 kg Max workpiece size (X/Y/Z): 1,000 x 810 x 400 mm. Max speed of the axis: 2,000
ONA HS 600 – die-sinking EDM
Manufactured in 2002 Electrode holder travel: 500 mm. Travel (X/Y/Z): 1,000/600/500 mm. C axis travel: 360º Table surface: 1,200 x 800 mm. Tank dimensions:1,700/1,000/600 mm. Max weight /
ONA QX8 B1L – die-sinking EDM
Die-sinking EDM on clearance sale New in 2016 Travels (X/Y/Z): 2,000/750/650 mm. C axis travel: 360º Table surface: 2,200 x 1,000 mm. Tank dimensions:2,800/1,500/1,000 mm Workpiece
Technical Features of this Second Hand EDM
| Manufacturer | CHARMILLES TECHNOLOGIES |
| Model | ROBOFIL 510 |
| Year | 2001 |
| X Y Travel | 700 x 400 mm. |
| U V Travel | 700 x 400 mm. |
| Programmable Z travel | 0 – 400 mm. |
| Anti-collision protection | X Y Z U V |
| Máx taper angle | ±30º |
| Speed of movement | 0-900 mm/min |
| Max. machining speed | 280 mm2/min. |
| Diameter of wire for threading | 0.1-0.3 mm. |
| Automatic modification of generator power | INCLUDED |
| GRAPHICS function | INCLUDED |
| Max Workpiece dimensions | 1.200x700x400 mm. |
| Power consumed | 10 kVA |
| Carrying Load Table | 2.000 kg. |
| Machine Weight | 3.500 kg. |
| Machine Dimensions | 2..100×2.100×2.230 mm. |
Detailed information of this Second Hand EDM
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
