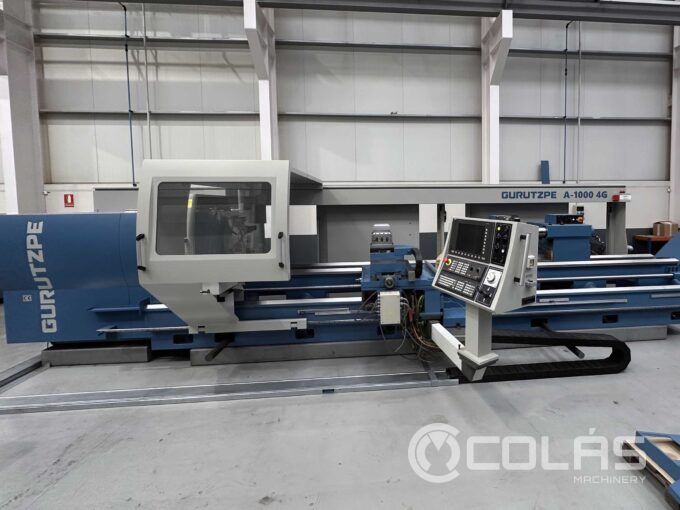

Gurutzpe A 1000/3 x 4000
Other available CNC Lathes

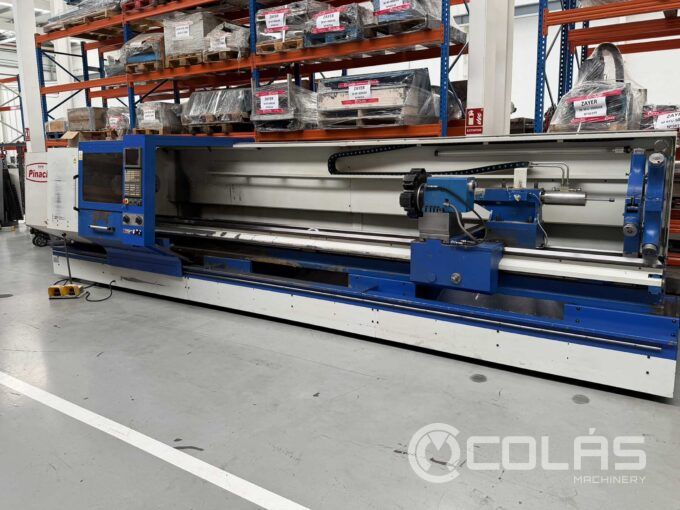

Pinacho Rhino SK/425
New in 2005 with GE Fanuc Series 21i-T CNC Distance between centers: 5,000 mm Max swing over bed/carriage: 850/560 mm 8-position automatic turret Tailstock with hydraulic quill stroke 3-jaw
MORI SEIKI NL 3000 / 3000
Manufactured in 2008 with MORI SEIKI MSX-850III CNC Max. swing over bed / carriage: 995 / 825 mm Spindle bore: 105 mm 12-position turret SCHUNK THW hydraulic chuck (Ø400 mm) SHW hydraulic
DAEWOO PUMA 2000-SY
New in 2003 with CNC FANUC 18i – T Max swing over bed/ carriage: 600/550 mm. Y Axis Travel: 100 (±50) mm. B Axis Travel: 580 mm. C axis 0.001º Driven turret positions
GEMINIS GHT6-G2 1300 x 3000
Year: 2007. FAGOR 8055 TC/C CNC Max. swing over bed / carriage: 1,300/940 mm Distance between centers: 3,000 mm C-axis and live tooling 8-position VDI 50 turret Ø 900 mm universal 3-jaw
Mori Seiki NLX 2500SY/700
Mori Seiki turning center new in 2011 C axis in spindle and sub spindle. Y Axis Maximum swing over bed: 590 mm. Driven Tools. High precision refrigeration Bar feeder and part
Geminis GHT4 720X3000
3-meter used CNC lathe New in 1999 CNC FAGOR 8055 TC/B Swing over bed/carriage: 720 / 470 mm Spindle bore diameter: 92 mm Duplomatic VDI 40 8-position turret 3-jaw self-centering
GURUTZPE A1200 4G CNC x 6000
New in 2008 CNC: FAGOR 8055 TC Maximum swing over bed/carriage: 1,200/1,000 mm C-axis + live tooling 4-jaw independent chuck (Ø 800 mm) 3 fixed steady rests and 2 Morari hydraulic
Technical Features of this Second Hand CNC Lathe
| Manufacturer | GURUTZPE |
| Model | A1000 / G4 CNC |
| Year | 2003 |
| CNC | FAGOR |
| Distance Between Centres | 4.000 mm. |
| Support Guides Number | 4 |
| Max. Swing Over Bed | 800 mm. |
| Rapid Traverse X Axis | 10 m/min |
| Rapid Traverse Z Axis | 10 m/min |
| Turning Speeds | 20-1.000 rpm |
| Head Automatic Range Number | 2 |
| Main Engine Power | 28/34 kW |
| Quill Spindle | 105 mm. |
| Driven tailstock (CNC Managed) | INCLUDED |
| Chuck Protection | INCLUDED |
| C Axis and Driven Tools | INCLUDED |
| Turret SAUTER | INCLUDED |
| Turret type | VDI 50 |
| Turret positions | 12 |
| 1 axial driven tool holder | INCLUDED |
| 1 radial driven tool holder | INCLUDED |
| Complete Rear Protection | INCLUDED |
| Steady Rest SHW Autoblock 150/650 | INCLUDED |
| Chuck SHW Autoblock with 3 Jaws Ø 500 mm | INCLUDED |
| Chip Conveyor | INCLUDED |
| Portable Handwheel FAGOR | INCLUDED |
| Total power | 55 kW |
| Machine Weight | 20.000 kg. |
| Machine dimensions | 9.775 x 3.100 mm |
Detailed information of this Second Hand CNC Lathe
Used Gurutzpe A 1000/3 x 4000 CNC lathe of 4 meters between centers for sale. It is in excellent condition at our main warehouse in Zaragoza. Immediate delivery. Excellent condition. It can be seen in operation.
Belonging to the A 1000/3 series of the manufacturer Gurutzpe, this CNC lathe with C axis and motorized tools was manufactured in 2003 with a FAGOR 8055 numerical control.
Are you interested in this used Gurutzpe A 1000 / 3 x 4000 lathe?
Then contact us. You can do so by calling our telephone service number +34976599624, writing to sales@maquinariacolas.com or filling out the contact form that appears at the bottom of the page.
Whether you just want a no-obligation quote or book an appointment to see this second hand Gurutzpe A 1000 / 3G lathe in operation, we’ll be happy to help.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
