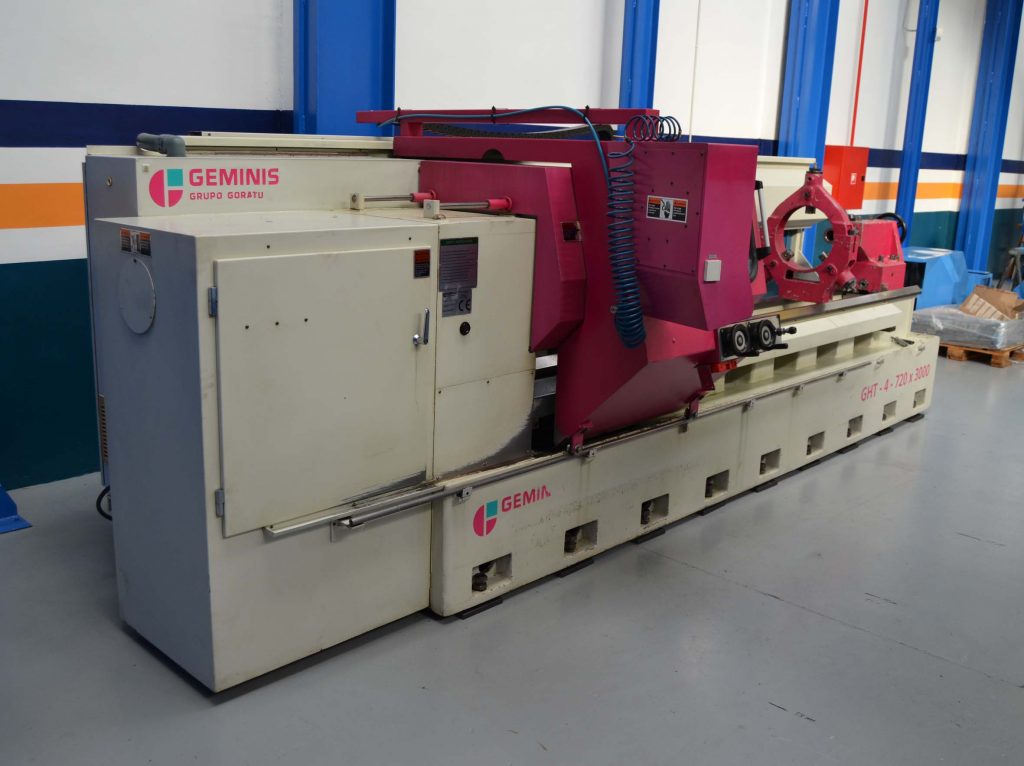

CNC Lathe Géminis GHT 4 720X3000
Technical Features of this Second Hand CNC Lathe
| Year | 2000 |
| CNC | FAGOR 8050 TC |
| Max. Swing Over Bed Max. Ø | 720 mm. |
| Max. Swing Ø | 720 mm. |
| Max Swing Over Cross Slide Ø | 470 mm. |
| Distance between Centres | 3.000 mm. |
| Rapid Traverse X Axis | 8 m/min |
| Rapid Traverse Z Axis | 8 m/min |
| Turning Speed | 0-1600 |
| Spindle Automatic Ranges | 2 Ranges |
| Main Motor Power | 20,5 Kw. |
| Spindle Nose | DIN-55027-11 |
| Turret Stations | Manual |
| Quill Travel | 104 mm. |
| Ø Tailstock Quill | 100 mm |
| Tailstock Quill Traverse | 200 mm |
| Back Protection | INCLUDED |
| 2 Handwhel in Carriage | INCLUDED |
| Fix SteadyRest 50/400 | iNCLUDED |
| Support Fix SteadyRest | INCLUDED |
| Machine Dimensions | 5.600 x 2.300 mm |
| Machine Weight | 6.500 Kg. |
| Total Power Required | 28 Kw. |
| Machine Condition | GOOD |
Detailed information of this Second Hand CNC Lathe
This CNC Lathe Géminis GHT 4 720X3000 can be found at our used metal working machinery warehouse in Spain. We own a large seleccion of used lathes, milling machines, boring machines, drilling machines…reviewed and ready for immediate inspection and visit.
If you need more information or set up an inspection visit to see this used CNC Lathe Géminis GHT 4 720X3000 contact us via the contact form appearing at the end of the page or using our customer service number +34 976500624. We will be happy to help you.
ALL THE MACHINES ARE AVAILABLE SUBJECT TO PRIOR SALE
Technical specifications are not binding and may be modified without notice
